- Page 1 PLATE COMPACTOR ＭVC-40G/50G/88G/90G/98D /F60/F70/F80 INSTRUCTION MANUAL We thank you for selecting Mikasa Vibration Compactor. For your safe and proper operation, please read this manual and be always sure to keep it ready for reference. 402-03007...
- Page 2 2) Manufacturer’s name and address. 1-4-3 Sarugaku-cho, Chiyoda-ku, Tokyo, Japan Takao Itoh, engineer 3) Name and address of the person who keeps R. & D. Division, Mikasa Sangyo Co., Ltd. the technical documentation. Shiraoka-machi, Saitama, Japan 4) Type: Vibratory Plates...
- Page 3 MVC-40G MVC-50G MVC-F60R MVC-F60H MVC-F70R MVC-F70H 5) model (VAS) (VAS) 52062 52064 52184 52192 52529 52533 52530 52531 6) Equipment 52043 52044 52191 52196 52065 52068 52198 52203 52538 52540 52532 52534 item number 52045 52218 52219 52069 52070 52221 52222...

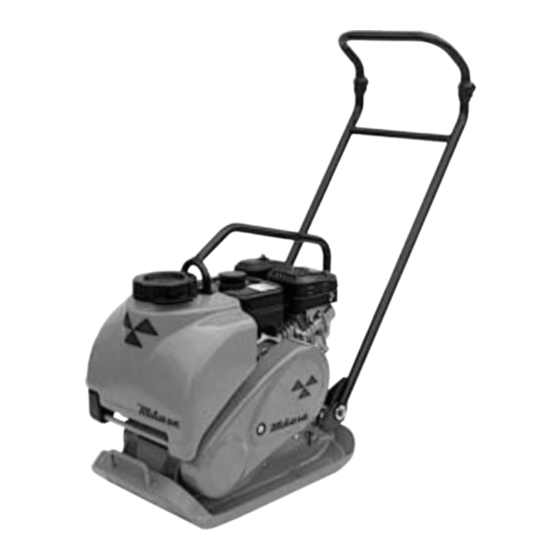

- Page 5 Plate Compactor Application Plate compactor is the machine that compacts the ground and it intends to make the surface smooth, by transmitting vibration through vibrating plate, which power generated from single rotor in vibrator case This machine is suitable for making the ground surface smooth, such as leveling the soil and beaching, finishing the asphalt paving.
-
Page 6: For Safety Operation
Moving parts. Shutdown engine before that apply to the operation, maintenance and performing service maintenance. adjustment of the Mikasa plate compactor. This Contact with moving parts can cause unit is designed as a powerful, productive serious injury. machine that should be operated with respect and caution. - Page 7 1.Priorto operation 1-1.Make sure that dirt,mud,etc.,are thoroughly removed from the unit prior to operation. Special effort should be given to the buttom face of the vibrating plate and those areas adjacent to the cooling air inlet of engine, OIL GAUGE carburetor, and air cleaner.
-
Page 8: Stop Switch
STOP SWITCH 3.Starting Gasoline Engine 3-l Turn the STOP SWITCH clock-wise to the I (ON) position "I"(ON). Fig.3 3-2 Open the fuel cock. Fig.4 3-3 Set the speed control lever l/3 to 1/2 of the way towards the high speed position Fig.5 3-4 Close the choke lever. - Page 9 CHOKE LEVER 4.Operation 4-l As the engine warms up, gradually move the choke lever to the OPEN position. (Fig-8) 4-2 Move the speed control lever from the LOW to the HIGH position. When the engine speed reaches approximately 2,300-2,600 RPM, the centrifugal clutch engages.
-
Page 10: Air Cleaner
SPEED CONTROL LEVER 6.Shutdown To stop the engine in an emergency, turn the stop switch to the OFF position. Under normal conditions, following procedure: 6-l Set the speed control lever at the low speed position and allow the engine to run at low speed for 2 or 3 minutes before stopping. -
Page 11: Spark Plug
B.Remove spark plug, clean and adjust the spark SPARK PLUG plug gap to 0.6-0.7mm(0.02-0.03 in.). (Fig-15) C.Drain the motor oil of the engine and replace with new specified oil. (Fig-16) NOTE：When the engine is new, the first oil change must be made after 20 hours of Operation. - Page 12 (402-03006)07-04-500(OG) (402-03001)05-04-300(OG)
