Summary of Contents for Weldex wdl-1500m
-
Page 2: Table Of Contents

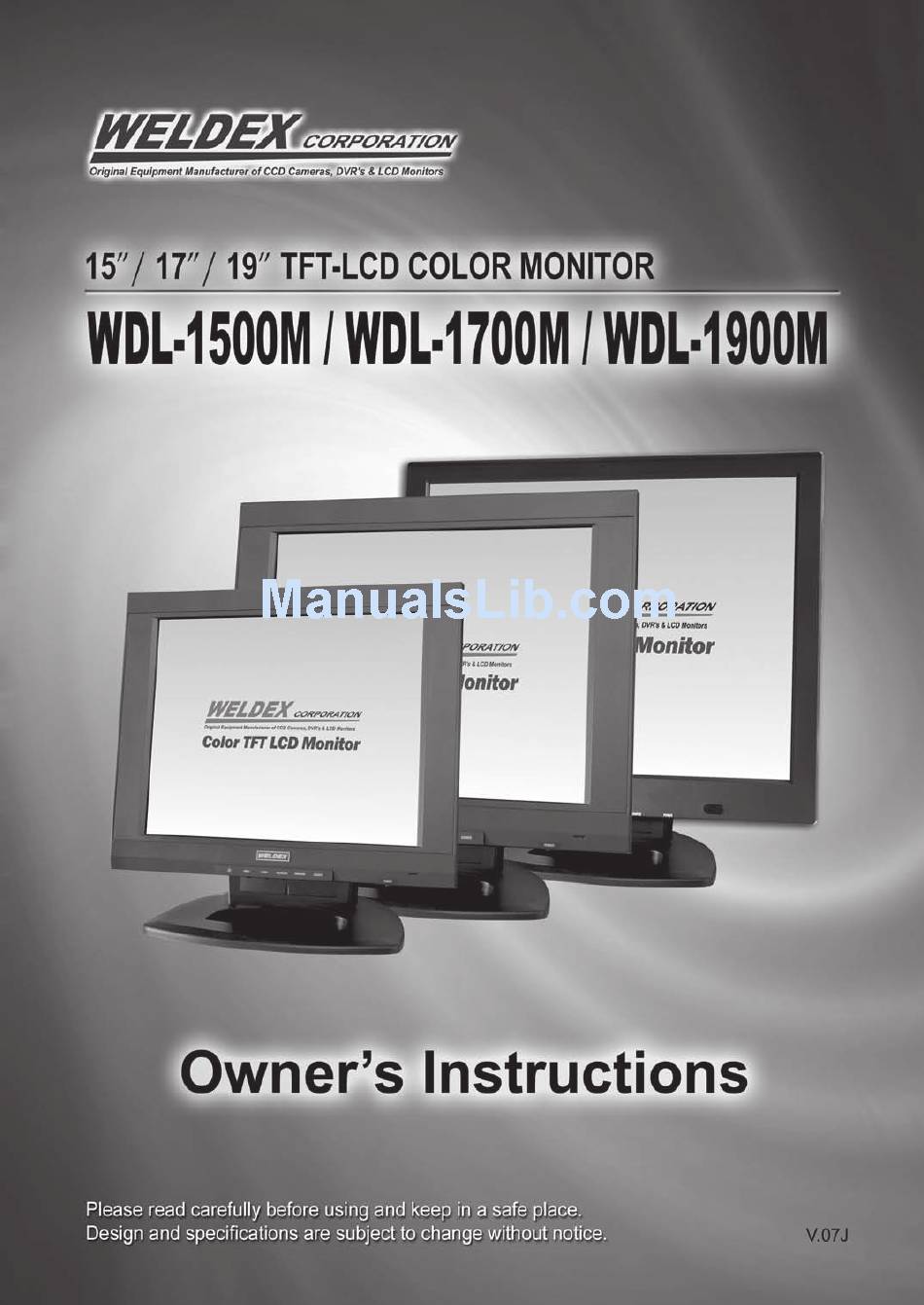

WDL-1500M/1700M/1900M Table of Contents 1. Table of Contents 2. Precautions 3. Warnings 4. Function A. Front side of monitor B. Back side of monitor C. Explanation on remote control 5. System Wiring 6. Operation A. Picture B. Source C. OSD D. -
Page 3: Precautions
WDL-1500M/1700M/1900M Precautions Do not remove the cover. To reduce the risk of electric shock and maintain the quality of the product, please do not remove the cover. Please follow the instructions of the wiring diagram in the Installation Guide. Keep small articles out of the reach of children. -
Page 4: Warnings
WDL-1500M/1700M/1900M Warnings WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN To reduce the risk of electric shock do not remove cover(or back). No user serviceable parts inside. Refer servicing to qualified service personnel. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of "dangerous voltage"... - Page 5 WDL-1500M/1700M/1900M CAUTION Do not attempt to modify this product in any way without written authorization. Unauthorized modification could void the user's authority to operate this product. POWER This set operates on DC power. The voltage is as indicated on the label on the back cover.
-
Page 6: Function

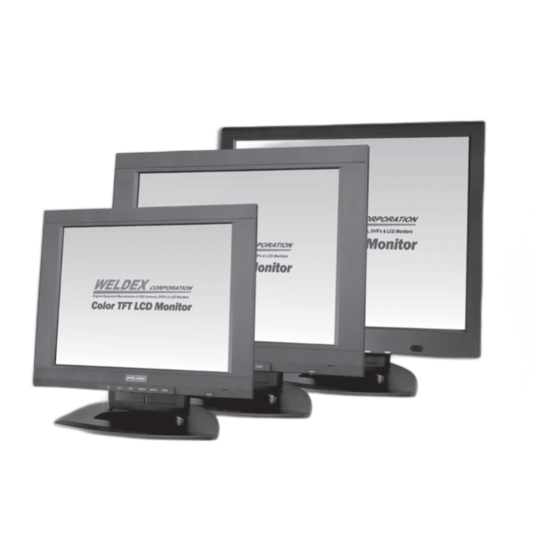

WDL-1500M WDL-1900M WDL-1700M 1. LCD PANEL It supports a resolution 1024x768 [ WDL-1500M ] / 1280x1024 [ WDL-1700M/1900M ] mode (optimal condition) 16.2M colors. 2. REMOTE CONTROL SENSOR IR-SENSOR is built in so that you can use remote control. 3. MENU Display a main menu on screen. -
Page 7: Back Side Of Monitor
WDL-1500M/1700M/1900M B. Back side of monitor. It is an explanation of the name and function per each part. VIDEO2 POWER SPEAKER OUT SPEAKER IN S-VHS VIDEO 1 AUDIO L AUDIO R REAR VIEW 1. Power input port. It is a connection for power.(Use the adapter supplied) 2. -
Page 8: Explanation On Remote Control
WDL-1500M/1700M/1900M C. Explanation of remote control. The button and function of remote control. Power Turn on/off power of LCD monitor Make sound of speaker be mute Mute VIDEO Change to VIDEO mode (VIDEO 1,2) S-VIDEO Change to S-VIDEO mode Change to PC mode... -
Page 9: System Wiring
WDL-1500M/1700M/1900M System Wiring It is an explanation how to connect to monitor. - Caution: Turn off power before connecting PC and other equipments and connect to monitor. - Input Power consumption should be 220V or 110V for AC/DC Adapter - Use after plugging in outlet. (Connect to POWER) -
Page 10: Operation
WDL-1500M/1700M/1900M Operation OSD screen configuration and adjustment buttons - Press "MENU" button to activate OSD menu screen. - OSD is changed consequently as below when press menu continuously. PICTURE SOURCE SETUP SCREEN Screen menu can be selected only when PC mode - Press menu key 1~2 second to exit menu or press source button. -
Page 11: Osd
WDL-1500M/1700M/1900M C. OSD Select "OSD H-POSITION" function from the OSD osd menu. OSD H-POSITION Press DECREASE/INCREASE button to adjust a desired OSD horizontal O S D position for the OSD display. Select "OSD V-POSITION" function from the OSD osd menu. -
Page 12: Terms
WDL-1500M/1700M/1900M F. Terms TFT LCD (Thin Film Transistor LCD) Is a thin film transistor LCD and is a type of LCD, a display element that uses optical switch controlling the transmission of light by changing the arrangement of liquid crystal. Active... -
Page 13: Check Before Asking Warranty Service
WDL-1500M/1700M/1900M G. Check before asking warranty service Q: Power doesn't come out. A: Connect power cord correctly and press power switch. Q: Screen doesn't come out. A: Check that monitor of signal cable(D-Sub) is connected correctly. Q: LED of monitor is blinking. -
Page 14: Packing List
WDL-1500M/1700M/1900M Packing List Set [ TFT-LCD Monitor ] Remote Controller 2 Batteries for Remote Controller Owner's Manual Adpater Power Cord D-SUB Signal Cable Audio Cable(Option) S-Video Cable(Option) RCA Cable(Option) 14. Packing List... -
Page 15: Specifications
WDL-1500M/1700M/1900M Specifications WDL-1500M WDL-1700M WDL-1900M DESCRIPTION ACTIVE MATRIX COLOR TFT LCD DISPLAY TYPE(LCD TYPE) SCREEN SIZE(inch) 15" (Diagonal) 17" (Diagonal) 19" (Diagonal) VIEWABLE SIZE 304.128mm x 228.096mm 337.92mm x 270.336mm 376.32mm x 301.06mm TOP 65 C/ BOTTOM 60 C/ LEFT 70 C/ RIGHT 70 C(CR 10) - Page 16 WDL-1500M/1700M/1900M Memo 6751 KATELLA AVE CYPRESS, CA 90630, USA Tel. (714) 761-2100, Fax: (714) 761-3811 www.weldex.com / oem@weldex.com Made in Korea...
