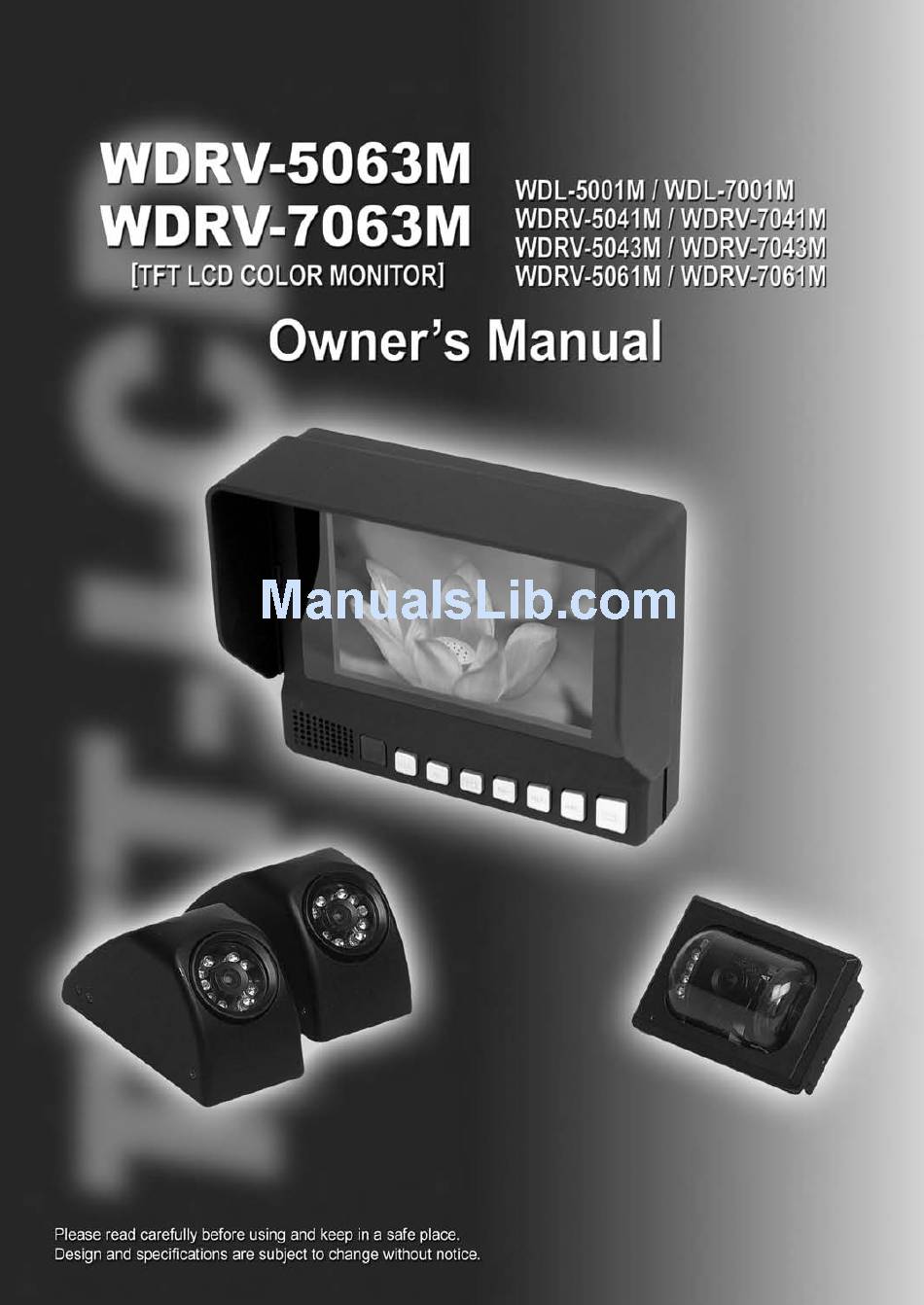

Weldex WDRV-5063M Owner's Manual
  1. Manuals
  2. Brands
  3. Weldex Manuals
  4. Monitor
  5. WDRV-5063M
  6. Owner's manual

Weldex WDRV-5063M Owner's Manual

Tft lcd color monitor
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WDRV-5063M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Weldex WDRV-5063M

Summary of Contents for Weldex WDRV-5063M

  • Page 2 WDRV-5063M/7063M Owner's Record The model and serial numbers are located at the rear. Record the serial number in the space provided below. Refer to these numbers whenever you call your dealer regarding this product. MODEL: WDL-5001M WDRV-5041M WDRV-5043M WDRV-5061M WDRV-5063M...

  • Page 3: Table Of Contents

    WDRV-5063M/7063M Table of Contents 1. Table of Contents 2. Features/Precautions 3. Packing List / Installation 4. Functions Monitor Remote Control 5. System Wiring WDRV-5043M/7043M WDRV-5063M/7063M WDL-5001M/7001M WDRV-5041M/7041M WDRV-5061M/7061M 6. Operation 7. Troubleshooting 11. Specifications / Dimensions Table of Contents. 3...

  • Page 4: 4. Features / Precautions

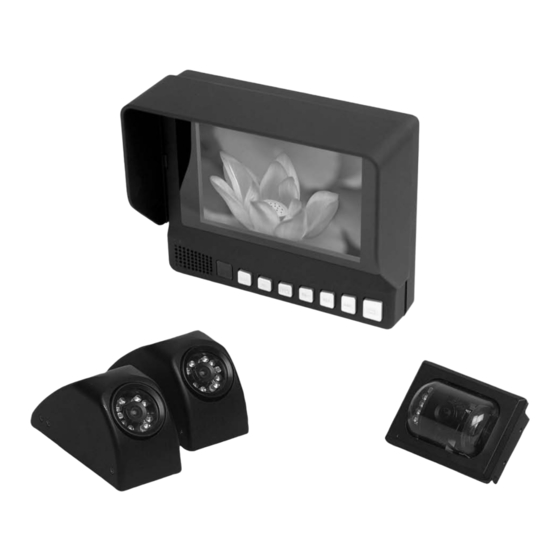

    WDRV-5063M/7063M Features WDRV-5063M/7063M is specifically designed as an automotive vision system. - High Resolution 5" / 7" TFT LCD Panel - Free Input Voltage ( DC 12V~DC 32V ) - NTSC/PAL Compatibility - 3 Camera Inputs - Automatic Picture Display ( 3 Triggering Functions )
  • Page 5 WDRV-5063M/7063M Do not remove the cover To reduce the risk of electric shock and maintain the quality of the product, please do not remove the cover. Please follow the instructions of the wiring diagram in the Installation Guide. Keep small articles out of the reach of children Store small articles (screws, etc.) in places not accessible to children.
  • Page 6 WDRV-5063M/7063M Caution Do not attempt to modify this product in any way without written authorization. Unauthorized modification could void the user's authority to operate this product. Power This set operates on DC power. The voltage is as indicated on the label on the back cover.

  • Page 7: Packing List / Installation. 7

    WDRV-5063M/7063M Packing List Set [ TFT-LCD Monitor ] Remote Controller Sunshield Power and Video Input Cable (Option) 2 Batteries (Type AAA) Stand Bracket Manual Easy Release Bracket Stand Bracket for Remote Controller ( for WDL Series ) ( for WDRV Series )

  • Page 8: Functions

    WDRV-5063M/7063M Functions MONITOR MENU DESCRIPTION Non Reflection and protection of LCD. ( Option ) Protection Window SPEAKER Sound out 0.5W X 2 Max. Remote control sensor. ( Remote control is optional ) Use select items in the on screen menu, press UP/DOWN UP/DOWN buttons to control rear view motorized camera.

  • Page 9: Remote Control

    WDRV-5063M/7063M REMOTE CONTROL ( Option ) Description Button On/off power of LCD monitor POWER CA1 ( RIGHT ) Change camera1 RIGHT video CA2 ( REAR ) Change camera2 REAR video RIGHT CA3 ( LEFT ) Change camera3 LEFT video REAR...

  • Page 10: System Wiring

    WDRV-5063M/7063M System Wiring [ WDRV-5043M / 7043M ] [ WDRV-5063M / 7063M ] Camera1 Camera2 Camera3 WDRV-5063M/7063M 4Pin Cable 6Pin Cable 4Pin Cable WDRV-5043M/7043M 4Pin Cable 4Pin Cable 4Pin Cable The shutter camera is optional. Bracket for fixing cable. ( Option )

  • Page 11: Wdl-5001M/7001M

    WDRV-5063M/7063M [ WDL-5001M / 7001M ] RCA Jack Bracket for fixing cable. Power (FEMALE) ( Option ) Video Input ( Yellow ) DC +12~32V Audio Input ( White ) [ WDRV-5041M / 7041M ] [ WDRV-5061M / 7061M ] WDRV-5041M/7041M...

  • Page 12: Operation

    WDRV-5063M/7063M Operation 1 ) Three view system: You can hear sound all the time. 2 ) On view or security camera system: Audio available only when vehicle is in reverse. MENU MENU - Press to enter setup menu - Selectable OSD menu disappears within 5 seconds if there is no command given.
  • Page 13 WDRV-5063M/7063M B. Press 'MENU' button twice on the remote controller. The following will appear on the screen. MENU MIRROR SCALE SCAN-TIME [ OFF ] [ OFF ] [ 0 sec ] RIGHT [ OFF ] [ OFF ] [ 0 sec ]...

  • Page 14: Troubleshooting

    WDRV-5063M/7063M Troubleshooting Q: Screen is too bright. A: Adjust BRIGHTNESS or CONTRAST. When pressing RESET button, it will go back to default setting. SCREEN Q: Screen color is red or close to green. A: Adjust TINT in menu mode. Press preset to go back to default setting.
  • Page 15 WDRV-5063M/7063M Q: Motorized camera does not operate. A: Check if motorized camera is connected with REAR. Check if source switches are in REAR mode. Q: Auto scan does not operate. A: Scan does not operate when there is only one camera image.

  • Page 16: Specifications / Dimensions

    WDRV-5063M/7063M Specifications 5 Inch Series ( Option ) 5 Inch Series 7 Inch Series TYPE TFT-LCD COLOR SCREEN SIZE BRIGHTNESS VISUAL FIELD (ANGLE) CONTRAST MTBF COMPOSITE ( 75 ) INPUT SIGNAL FEATURE POWER CONSUMPTION SIZE(Width x Depth x Height) POWER SOURCE...

This manual is also suitable for:

Wdrv-7063m
