  • Page 2 WDRV-7464M/8464M Owner's Record The model and serial numbers are located at the rear. Record the serial number in the space provided below. Refer to these numbers whenever you call your dealer regarding this product. MODEL: WDRV-7444M WDRV-7464M WDRV-7474M WDRV-8444M WDRV-8464M...

  • Page 3: Table Of Contents

    WDRV-7464M/8464M Table of Contents 1. Table of Contents 2. Features/Precautions 3. Packing List 4. Functions Monitor Remote Control 5. System Wiring 6. Installation 7. Operation 8. Troubleshooting 9. Specifications / Dimensions Table of Contents. 3...

  • Page 4: Features/Precautions

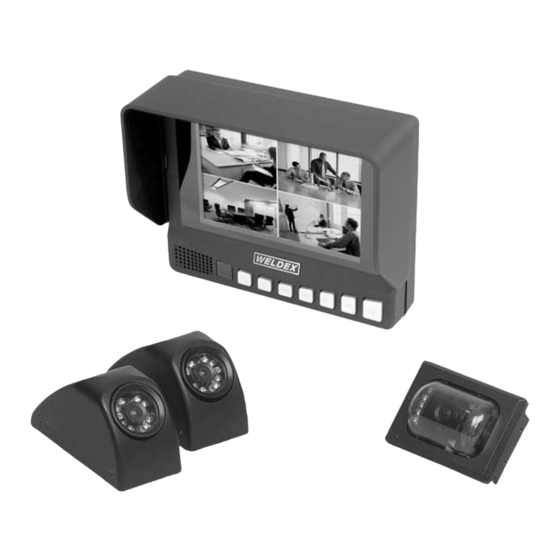

    WDRV-7464M/8464M Features WDRV-7464M/8464M is specifically designed as an automotive all round vision system. ● - Wide 7" / 8" TFT LCD Panel - Free Input Voltage ( DC 12V~DC 32V ) - NTSC/PAL Compatibility - 4 Camera Inputs & Audio/Video Input & Audio/Video Output...
  • Page 5 WDRV-7464M/8464M Do not remove the cover ● To reduce the risk of electric shock and maintain the quality of the product, please do not remove the cover. Please follow the instructions of the wiring diagram in the Installation Guide. Keep small articles out of the reach of children ●...
  • Page 6 WDRV-7464M/8464M Caution ● Do not attempt to modify this product in any way without written authorization. Unauthorized modification could void the user's authority to operate this product. Power ● This set operates on DC power. The voltage is as indicated on the label on the back cover.

  • Page 7: Packing List

    WDRV-7464M/8464M Packing List Set [ TFT-LCD Monitor ] Stand Bracket Remote Controller Sunshield (Option) 2 Batteries (Type AAA) for Remote Controller (Option) Manual Packing List .7...

  • Page 8: Functions

    WDRV-7464M/8464M Functions MONITOR MENU DESCRIPTION Video on the screen. SPEAKER Sound out 1W X 2 Max. Remote control sensor. ( Remote control is optional ) Use select items in the on screen menu, press UP/DOWN UP/DOWN buttons to control front / rear view motorized camera only.

  • Page 9: Remote Control

    WDRV-7464M/8464M REMOTE CONTROL ( Option ) Button Description POWER On/off power of LCD monitor Change camera1 video Change camera2 video RIGHT SOURCE AUTO POWER Change camera3 video Change camera4 video REAR QUAD DIMMER Dimmer control button Use select items in the on screen menu,...

  • Page 10: System Wiring

    WDRV-7464M/8464M System Wiring [ WDRV-7444M / 7464M [ WDRV-8444M / 8464M Camera1 Camera2 Camera3 Camera4 WDRV-7464M/8464M 6Pin 6Pin 4Pin 4Pin WDRV-7444M/8444M 4Pin 4Pin 4Pin 4Pin DC12V~32V FEMALE MALE [ Side View Camera ] [ Rear View Camera ] [ General Camera ]...

  • Page 11: Installation

    WDRV-7464M/8464M Installation Install the monitor on a surface which can width stand more weight than 5Kg (11 lbs) ● - Clean the surface before installation - Remove the protective paper covering the bottom of the bracket - Stick the provided bracket on the surface and fix it firmly with the screws.

  • Page 12: Operation

    WDRV-7464M/8464M Operation MENU ● MENU - Press to enter setup menu - Selectable OSD menu disappears within 5 seconds if there is no command given. - Menu Toggle Page1 Page2 Page3 Page4 EXIT (Menu) (Picture) (Function) (OSD) - Use buttons to navigate menu, adjust menu settings.
  • Page 13 WDRV-7464M/8464M B. Press 'MENU' button twice times on set. The following will appear on the screen. Picture Brightness Contrast Tint Color Sharpness Color Tone < Normal > < > Auto Power BRIGHT : Adjust the brightness of the screen ●...
  • Page 14 WDRV-7464M/8464M E. VIEW MODE.1 Single : CAM 1 ~ CAM 4 , A/V Dual (Half) : CAM 1 / CAM 2 , CAM 3 / CAM 4 CAM 1 CAM 2 CAM 3 CAM 4 Quad : CAM 1 / CAM 2 / CAM 3 / CAM4...
  • Page 15 WDRV-7464M/8464M F. View Mode.2 (Tacho function : Option) Use the CAM2 only Off Mode Front View (CAM2) Power On : Below 10Km / h : Display on (CAM2) Above 10Km /h : Display Off Operation. 15...
  • Page 16 WDRV-7464M/8464M F-1. View Mode (Tacho function : Option) Use the CAM1,CAM2 Off Mode Front View REAR View FRONT View REAR View FRONT View (CAM1) (CAM2) (CAM2) (CAM1) (CAM2) Start : Above 10Km /h : Power On : Below 10Km / h : CAM2 Display...
  • Page 17 WDRV-7464M/8464M F-2. View Mode (Tacho function : Option) Use the CAM1,CAM2 (CAM3 ,CAM4) Off Mode REAR View FRONT View REAR View FRONT View (CAM1) (CAM2) (CAM1) (CAM2) Front View (CAM2) LEFT View RIGHT View LEFT View RIGHT View (CAM3) (CAM4)

  • Page 18: Troubleshooting

    WDRV-7464M/8464M Troubleshooting Q: Screen is too bright. A: Adjust BRIGHTNESS or CONTRAST. When pressing RESET button, it will go back to default setting. SCREEN Q: Screen color is red or close to green. A: Adjust TINT in menu mode. Press preset to go back to default setting.
  • Page 19 WDRV-7464M/8464M Q: Motorized camera does not operate. A: Check if motorized camera is connected with REAR. Check if source switches are in REAR mode. Q: Auto scan does not operate. A: Scan does not operate when there is only one camera image.

  • Page 20: Specifications / Dimensions

    WDRV-7464M/8464M Specifications 7 Inch Series 8 Inch Series TYPE TFT-LCD COLOR SCREEN SIZE 7 Inch 8 Inch BRIGHTNESS VISUAL FIELD (ANGLE) CONTRAST 10,000 20,000 MTBF INPUT SIGNAL FEATURE COMPOSITE (75Ω) POWER CONSUMPTION 10.2W 9.6W SIZE(Width x Depth x Height) 7.7 x 1.3 x 5.7 inch 8.5 x 1.3 x 6.3 inch...
