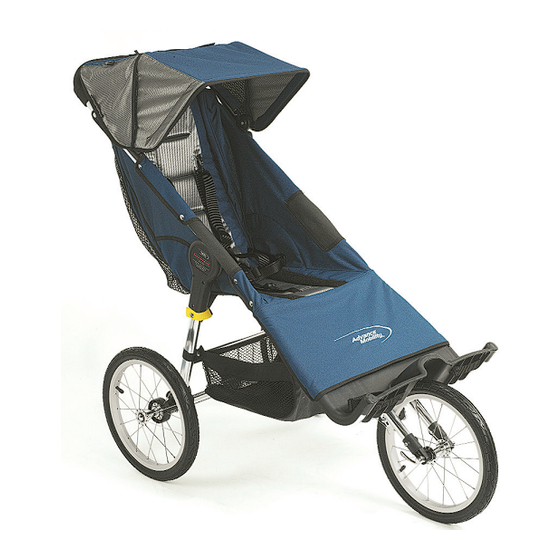

Advance mobility Independence Assembly Instructions Manual

Push chair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Assembly
Instructions
A Division of The Baby Jogger Company
Read these
instructions carefully
before use and
Independence
keep them for
future reference.
Push Chair
Your passenger's safety may
be affected if you do not
follow these instructions.
This product is CE approved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Independence and is the answer not in the manual?

Questions and answers

Related Manuals for Advance mobility Independence

Summary of Contents for Advance mobility Independence

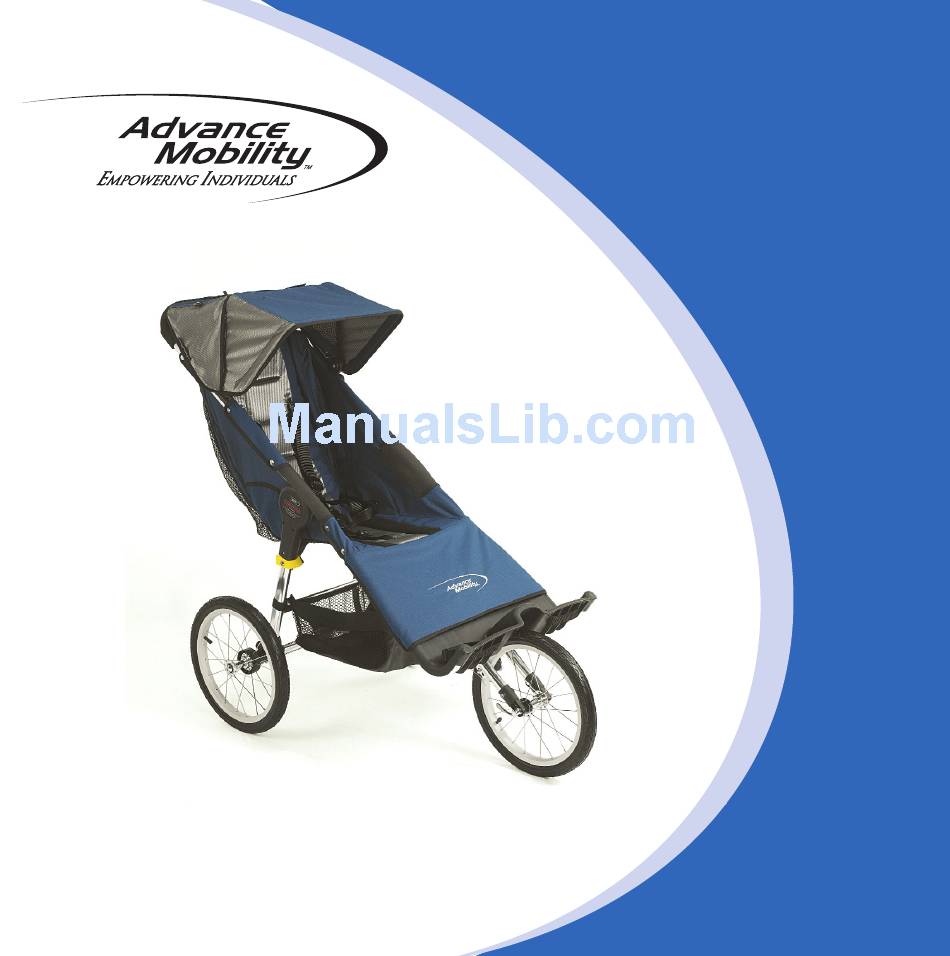

  • Page 1 Assembly Instructions A Division of The Baby Jogger Company Read these instructions carefully before use and Independence keep them for future reference. Push Chair Your passenger’s safety may be affected if you do not follow these instructions. This product is CE approved...
  • Page 2 For the sake of your precious cargo, please read these warnings before using your brand new Independence Push Chair. • WARNING: Prevent serious injury to your passenger by always using the safety harness. • WARNING: Any load attached to the handle affects the stability of the Push Chair.
  • Page 3 Frame 1. Unpack Push Chair from box and set wheels aside. 2. Pull up on handle and push axle of 3. Push chair frame will click into place. Push Chair forward to assemble frame. Snap yellow safety straps to frame before using.
  • Page 4 Footplate Remove bottom section of Insert Footplate Tubes into Insert Footplate onto seat to install Footplate. Footplate. Push Chair Frame. Secure Footplate onto Secure bottom seat straps Velcro bottom section of Push Chair Frame using around the frame and seat to Footplate. the enclosed screws and a Velcro back to themselves.

  • Page 5: Front Wheel

    Front Wheel To install front wheel, lay Push Chair back so handle is resting on floor. Open the calipers by flipping the caliper lever toward the rear wheels. Insert the front wheel into the fork tips by aligning the axle flats with the fork tip flats.

  • Page 6: Rear Wheels

    Rear Wheels • To install, gently slide the wheel’s axle into the hole in the axle end until you hear it click into place. • To remove, simply push in the spring lock button while pulling out the wheel.

  • Page 7: Safety Harness

    Safety Harness Unclip top of shoulder strap from seat and re-clip on the seat loop closest to the passenger's shoulders. Clip bottom section of shoulder straps to buckle loops. To Adjust the strap length move the plastic guide on the straps up or down to lengthen or shorten to the desired comfort level for passenger.

  • Page 8: Rear Wheel Brakes

    Rear Wheel Brakes • Simply push brake pedal down to engage rear parking brakes and lift up to release. Hand Brake Adjusting the Brake • If you do not have good Hand Brake braking action, simply squeeze the brake lever with Parking five or six times.
  • Page 9 Seat ALWAYS BE SURE THE YELLOW SAFETY STRAP IS SECURELY SNAPPED ONTO THE FRAME BEFORE USING PUSH CHAIR! Snap seat to frame. Fasten the two bottom velcro straps to each other. Thread folding strap through openings in seat. Attach folding strap to folding trigger and secure the triangle shaped fastener.

  • Page 10: Reclining Seat

    Reclining Seat To recline: Pinch clamp and slide it down to desired recline and push down on seat. To return to the upright position: Hold the D-ring on the end of the recline strap in one hand and use the other to pinch the clamp and slide it up the strap.
  • Page 11 Canopy To attach bracket to frame: Unsnap seat To attach canopy to bracket: Insert canopy from frame to reveal mounting location. frame into bracket and attach screws using Use a phillips head screwdriver to attach a phillips head screwdriver. bracket screws to frame. Snap canopy strap around frame Unsnap canopy strap to tilt forward to itself.
  • Page 12 Basket To install the basket onto the Independence frame, it is best to remove bottom seat section as shown on the seat page Place the basket under the Push Chair, narrow end forward and secure front basket snap straps around frame.
  • Page 13 Folding ALWAYS BE SURE THE YELLOW SAFETY STRAP IS SECURELY SNAPPED ONTO THE FRAME BEFORE USING PUSH CHAIR! Retract canopy and unsnap Fold Strap from both uprights. Grasp Fold Strap and pull upwards. (You might have to give it a tiny yank.)
  • Page 14 Wrist Strap • Make sure wrist strap is around your wrist when in use. The Independence is ready to roll with or without you – and the wrist strap helps you stay in control of you Push Chair.
  • Page 15 Push Chair Care Washing • You can machine wash the Independence’s seat in cold water with a mild detergent. To minimize shrinkage, simply reattach the seat to the frame to dry. (Please do not put the seat in the dryer!) •...
  • Page 16 Thank You! We wish you many happy journeys with your new Push Chair! The Independence is a great product, and we are proud to manufacture it. If you have any questions or comments, please give us a call at. 1 . 8 0 0 . 2 4 1 . 1 8 4 8 Advance Mobility is a Division of Baby Jogger 8575 Magellan Parkway, Suite 1000 •...
