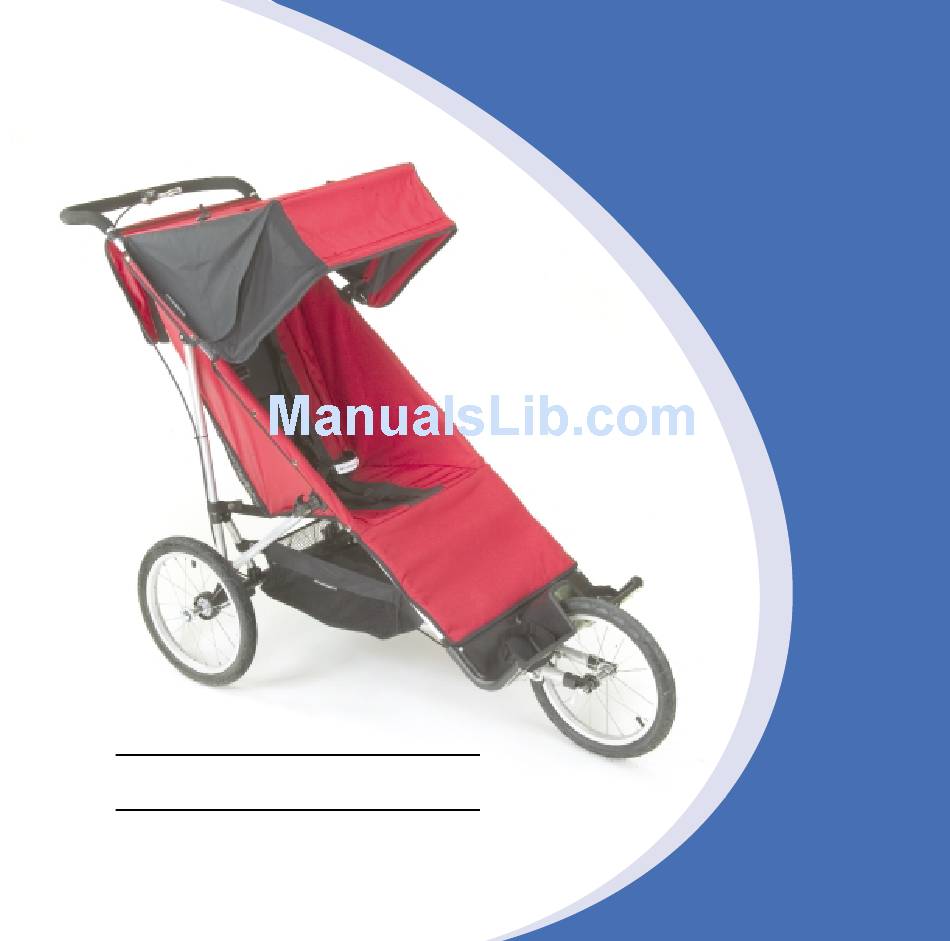

- Page 1 Assembly Instructions Advance Mobility Freedom Important, Keep for Future Reference...
- Page 2 For the sake of your precious cargo, please read these warnings before using your Baby Jogger. • Important, keep this booklet for future reference. • Accessories which are not approved by the manufacturer or distributor should not be used. • WARNING: Prevent serious injury to your passenger by always using the safety harness.
- Page 3 Frame • To assemble, simply unfold frame...
- Page 4 Frame Swing bottom frame tubes toward footplate. • Front Tube Connector Snap Locks • Push up to secure snap locks on both tubes. • Insert bottom of footplate into front tube connectors.
- Page 5 Frame • While pushing latch button slide side brace over mounting bracket, release when pin is aligned with hole in bracket. Side Brace • Swing side braces down to mounting brackets. • Secure side brace clamp. Repeat on both sides.
-
Page 6: Front Wheel
Front Wheel To install front wheel, lay jogger back so handle is resting on floor. Open the calipers by flipping the caliper lever toward the rear. Insert the front wheel assembly into the front frame tubes until pin holes are aligned. Insert wheel pin on each side. -
Page 7: Front Swivel Wheel
Front Swivel Wheel To install front swivel wheels, lay jogger back so handle is resting on floor. Insert the front wheel assembly into the front frame tubes until pin holes are aligned. Insert wheel pin on each side. -
Page 8: Rear Wheels
Rear Wheels • To install, gently slide the wheel’s axle into the hole in the axle end until you hear it click into place. Spring Spring Lock Lock • To remove, simply push in the spring lock while pulling out the wheel. -
Page 9: Reclining Seat
Reclining Seat • Simply adjust seat straps to desired degree of recline. • Pull on strap when you want to return the seat to its upright position. Be sure to remove the board from the back of the seat before washing. -
Page 10: Safety Harness
Safety Harness Safety harness: • Clip shoulder straps to upper fabric loop that best suites passenger then attach lower clips to buckle bracket. • Adjust center safety strap as necessary for passenger comfort. WARNING: Avoid serious injury from falling or sliding out. Always use safety harness! -
Page 11: Hand Brake
Hand Brake Hand Brake with Parking Button • To use the parking button feature, simply squeeze the brake handle and push the park brake button. Adjusting the Brake • If you don’t have good braking action, simply squeeze the brake handle five or six times. - Page 12 Rear Parking Brake Rear Wheel Parking Brakes • Simply push brake pedal down to engage brake and lift up to release. Brake Pedal...
- Page 13 NOTE: Some Joggers are shipped with the Canopy Canopy, Seat and Basket pre-assembled. Assembly instructions are given if any pre-assemble items are removed for cleaning Image shown with seat fabric removed for clearer viewing. or replacement. Using a phillips head screwdriver, screw brackets to Jogger frame. Snap to Jogger frame.
- Page 14 Wrist Strap • Make sure wrist strap is around your wrist whenever your baby is in the stroller. The Baby Jogger is lightweight and ready to roll – with or without you – and the wrist strap helps you gain control over your stroller.
- Page 15 jogger Care Washing • You can machine wash your stroller’s seat in cold water with a mild detergent. To minimize shrinkage, simply reattach the seat to the frame to dry. (Please do not put the seat in the dryer!) • Be sure to remove the board from the back of the seat before washing.
- Page 16 Thank You! We wish you many happy journeys with your new Baby Jogger! Your jogger is a great product, and we are proud to manufacture it. If you have any questions or comments, please give us a call at. 1.800.241.1848 Baby Jogger is a Division of Dynamic Brands 8575 Magellan Parkway, Suite 1000 •...
