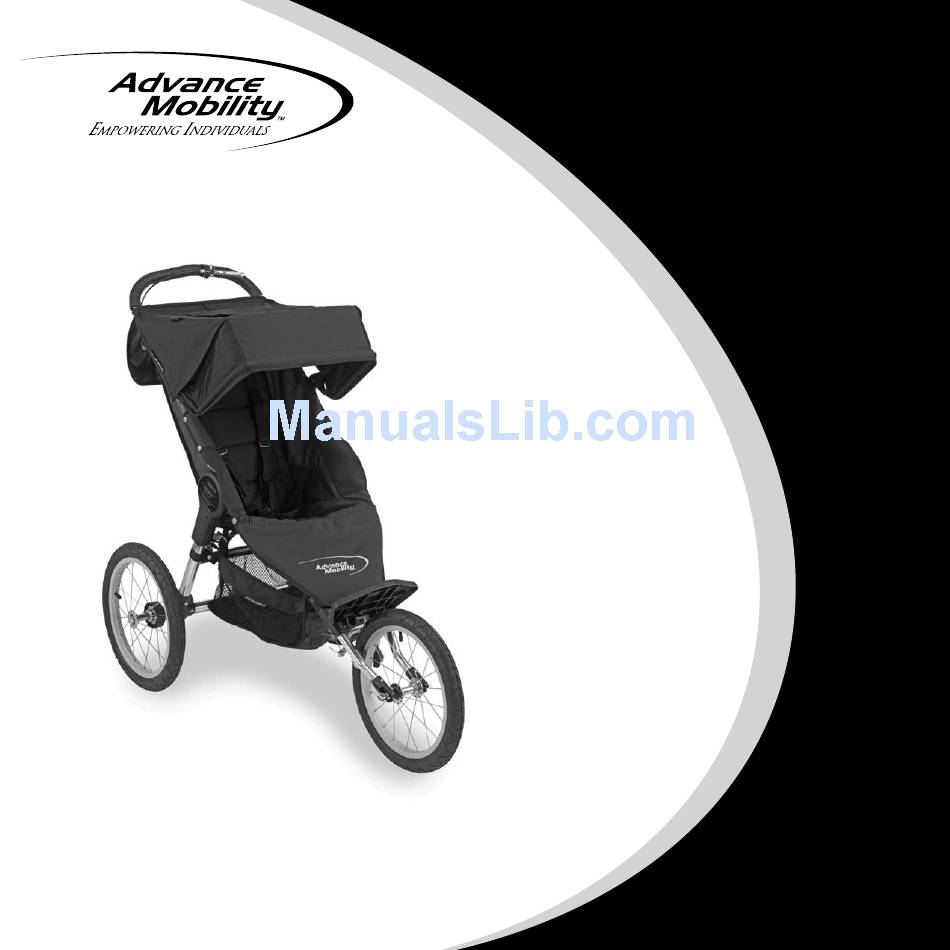

- Page 1 A Division of The Baby Jogger Company Read these instructions carefully before use and keep them for Spirit Push Chair future reference. Your passenger’s safety may be affected if you do not follow these instructions. This product is CE approved.
- Page 2 For the sake of your precious cargo, please read these warnings before using your brand new Spirit Push Chair. • Warning: Prevent serious injury to your passenger by always using the safety harness. • Warning: Any load attached to the handle affects the stability of the push chair.
- Page 3 Frame Unpack the push chair from the box and set Unfold the push chair by lifting the wheels and footplate aside. front fork away from the handlebar until it clicks into place. Turn stroller over to upright position.
-
Page 4: Under Seat Basket
Under Seat Basket Using the two Velcro straps, secure the front end of the under seat basket to the frame just above the footplate holder slot. Snap the rear basket straps around the frame. Footplate Insert the footplate tab into the footplate holder slot. -
Page 5: Front Wheel
Front Wheel To install, squeeze the two brake calipers together and push the black lever backwards to open brake pads. Release calipers so that they spring open. Insert the front wheel into the fork tips by aligning the axle flats with the fork tip flats. -
Page 6: Rear Wheels
Rear Wheels To install, slide the axle peg of the rear wheel To remove, push the round button on the into the axle until you hear it click into place. rear axle while pulling out the wheel. Complete on both sides. Rear Brake Warning: Engage parking brake before loading and... - Page 7 Seat Start with snapping seat to upper frame and work your way down frame. At knee area of the seat, secure the seat to the frame by threading one side of the Velcro straps through the D-ring on the other. At foot area of the seat, secure the seat Tighten and secure the Velcro together.
- Page 8 notE: The seat of your jogger can be removed for washing. Unsnap the fabric from the frame and undo any Velcro straps. See page 15 for washing instructions. Tighten and secure around the frame. Snap the seat strap around the support bar on the frame.
-
Page 9: Safety Harness
Safety Harness Un-clip top of shoulder strap from the seat Adjust the strap length by moving the plastic and re-clip on the pair of seat loops closest guide up or down to lengthen or shorten. to the child’s shoulder height. Buckle harness by sliding harness pegs into To unbuckle, squeeze the sides of the buckle the buckle on the crotch strap until it locks... -
Page 10: Reclining Seat
Reclining Seat Simply adjust seat straps to desired degree of recline by releasing the length of the strap. Pull on strap when you want to return the seat to its upright position. - Page 11 Push chair is packaged with seat support board and can be easily removed or inserted into the seat back if additional support is desired notE: Be sure to remove the support panel from the back of the seat before washing. Accessory Bracket Adapter Accessory bracket adapter allows...
- Page 12 Canopy Your canopy is equipped with side ventilation panels that Velcro closed or can be rolled up and secured with a loop and toggle. Clear view windows are provided at two positions of the canopy. Roll up the window flap and secure with the Velcro tabs. notE: The canopy of your push chair can be removed for washing.
- Page 13 always be Warning: sure the safety strap is Quick-Fold securely snapped onto the frame on both sides before using the push chair. Thread the fold strap through the opening in the seat. Attach the folding strap to the trigger underneath the seat by sliding the open end of the triangle shaped fastener into the hole on the trigger.
- Page 14 Snap the safety strap to the frame. To fold: • Unsnap the safety straps on the side of the frame. Lift up on the fold strap in the center of the seat until the push chair folds in half.
-
Page 15: Hand Brake
Hand Brake • Your stroller is equipped with a hand To use the hand brake make sure brake for your convenience. brake pads are properly installed (see page 3). Squeeze the hand brake to give you better control over your push Adjusting the hand brake: chair. - Page 16 In Motion Steering • Steering your push chair is simple. It’s balanced to turn with just a light touch on the handlebar. Wrist Strap • Make sure wrist strap is around your wrist when in use. The Spirit is ready to roll with or without you –...
- Page 17 Push Chair Care Washing • You can machine wash the Spirit’s seat in cold water with a mild detergent. To minimize shrinkage, simply reattach the seat to the frame to dry. (Please do not put the seat in the dryer!) •...
- Page 18 Limited Lifetime Warranty: Advance Mobility warrants that the frame is free of manufacturer defects for the lifetime of the product. Manufacturer’s defects include but are not limited to the breaking of welds and frame tube damage. Textile or soft side materials and all other components shall be warranted for one year from the date of purchase (except for tubes and tires).
- Page 19 If you have any questions or comments, please give us a call at: 1.800.241.1848 Advance Mobility is a Division of Baby Jogger 8575 Magellan Parkway, Suite 1000 • Richmond, VA 23227 T: 800.241.1848 • F: 804.262.6277...
