Functional Description; Depth Adjustment - Makita 6823 Instruction Manual

FUNCTIONAL
DESCRIPTION
1
A
B
1. Locking sleeve
1mm (3/64")
1. Locater
1mm (3/64")
1. Locater
1
1. Switch trigger
2. Lock button
6
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.

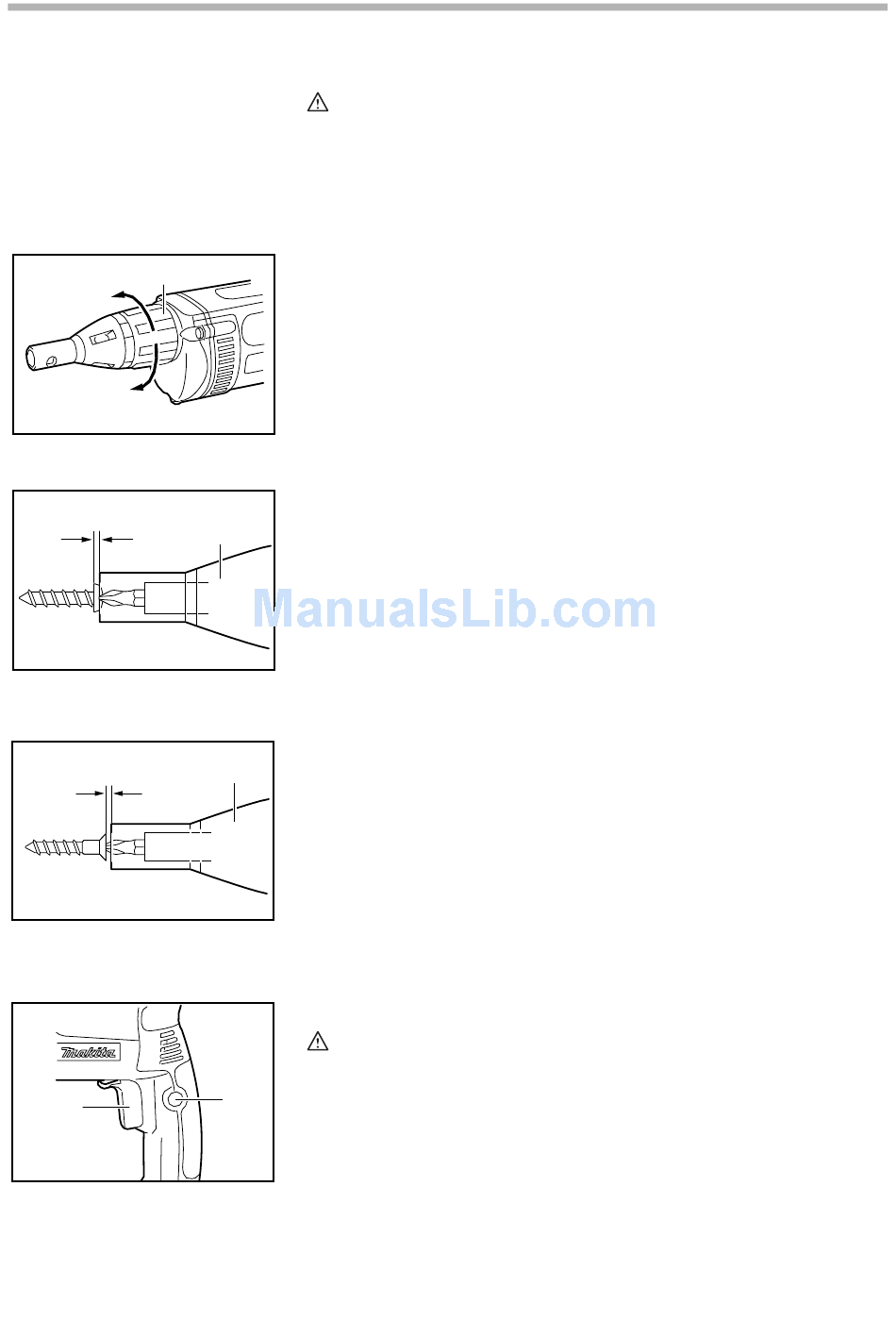

Depth adjustment

002612
The depth can be adjusted by turning the locking sleeve.
Turn it in "A" direction for less depth and in "B" direction for
more depth. One full turn of the locking sleeve equals 1.5
mm (1/16") change in depth.
Adjust the locking sleeve so that the distance between the tip
002619
of the locator and the screw head is approximately 1 mm (3/
64") as shown in the figures. Drive a trial screw into your
1
material or a piece of duplicate material. If the depth is still
not suitable for the screw, continue adjusting until you obtain
the proper depth setting.
002620
1
Switch action
002628
CAUTION:
• Before plugging in the tool, always check to see that the
switch trigger actuates properly and returns to the "OFF"
2
position when released.
To start the tool, simply pull the switch trigger. Tool speed is
increased by increasing pressure on the switch trigger.
Release the switch trigger to stop.
