SNOWJOE 323E Operator's Manual

SNOWJOE 323E Operator's Manual

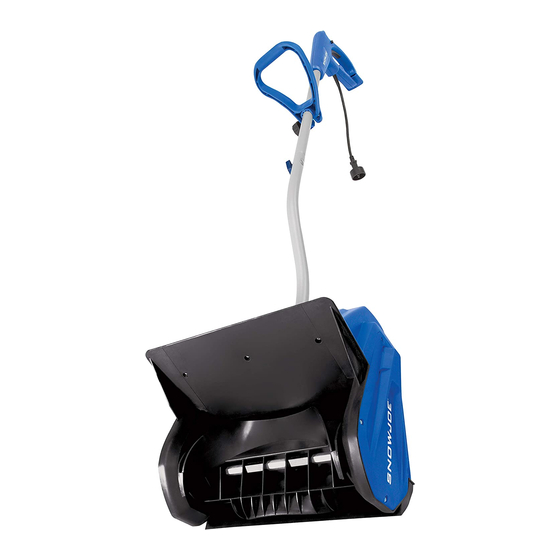

13-inch 10-amp electric snow shovel
Hide thumbs Also See for 323E:
Table of Contents

Advertisement

Quick Links

A Division of Snow Joe
, LLC
®
IMPORTANT!

Safety Instructions

All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
generally to many appliances. Other warnings are specific to
the use of this snow shovel.

General Safety WARNINGS!

You and any other operator of this snow shovel must read,
understand and follow these instructions in their entirety, and
should re-read them at the start of each snow season. Failure
to follow these instructions may result in ELECTRIC SHOCK,
FIRE and/or serious PERSONAL INJURY.
Notice the personal safety alert symbol
manual to draw your attention to a WARNING given along
with the particular operating instruction. This means that
the operation requires special ATTENTION, CAUTION and
AWARENESS.
1. Replacement parts – When servicing this unit, use only
identical replacement parts. Replace or repair damaged
cords immediately.
Do not use on gravel surfaces unless the snow shovel
is adjusted for such surfaces in accordance with the
operator's manual.
2. Keep children, bystanders and pets away – All
spectators, including pets, should be kept a safe distance
away from the work area.
3. Dress properly – Do not wear loose articles of clothing or
jewelry. They can become caught in moving parts. Wear
rubber boots.
The electric snow shovel should not be operated in the
hand-held position except when the instructions provided
in this manual deem such use permissible.
4. Extension cords – To prevent disconnection of the
appliance cord from the extension cord during operation,
secure the extension cord to the product as shown in
Figs. 8 & 9.
m
WARNING! To prevent electric shock, use only with an
extension cord suitable for outdoor use.
© 2014 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
13-INCH 10-AMP ELECTRIC SNOW SHOVEL
Model 323E
m
used in this
5. Avoid accidental starting – Do not carry the electric
snow shovel with your finger on the switch. Make sure the
switch is off before plugging in the unit.
If the cord is damaged in any manner during operation,
pull the extension cord from the wall receptacle.
6. Do not abuse the cord – Never carry the electric snow
shovel by the cord or yank the cord to disconnect it from
the receptacle. Keep the cord away from heat, oil and
sharp edges.
7. Moving parts – Keep hands and feet away from moving
parts. Keep guards in place and in proper working order.
8. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it was designed.
9. Do not overreach – Keep proper footing and balance at
all times.
If the electric snow shovel strikes a foreign object, follow
these steps:
• Stop the electric snow shovel.
• Inspect for damage.
• Repair any damage before restarting and
operating the snow shovel.
10. Disconnect the tool – Disconnect the electric snow
shovel from the power supply when it is not in use,
before servicing it, when changing accessories and when
performing any other maintenance task.
11. Store idle tool indoors – When not in use, the electric
snow shovel should be stored indoors in a dry, locked
place out of the reach of children.
12. Maintain the electric snow shovel with care – Follow
the applicable maintenance instructions for replacing parts
and changing accessories. Lubrication is not required.
This electric snow shovel meets or exceeds the B71.3
specifications of the American National Standards
Institute in effect at the time of production.
Read and understand the contents of this manual
before you start the motor.
m
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
Improperly using or maintaining this electric snow
shovel could result in injury or death. To reduce
this potential, comply with the following safety
instructions.
SAVE THESE INSTRUCTIONS
1
Form No. SJ-323E-880E-MR2
OPERATOR'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for SNOWJOE 323E

Summary of Contents for SNOWJOE 323E

  • Page 1: Safety Instructions

    13-INCH 10-AMP ELECTRIC SNOW SHOVEL Model 323E Form No. SJ-323E-880E-MR2 OPERATOR’S MANUAL A Division of Snow Joe , LLC ® IMPORTANT! 5. Avoid accidental starting – Do not carry the electric snow shovel with your finger on the switch. Make sure the Safety Instructions switch is off before plugging in the unit.

  • Page 2: Double-Insulated Appliances

    This electric snow shovel can amputate hands and the rotor blade housing and when making any repairs, feet if used incorrectly. It can also pick up foreign adjustments or inspections to the unit. objects, which can become dangerous projectiles • When cleaning, repairing or inspecting the electric snow when thrown into the air.

  • Page 3: Electrical Safety

    Keep the cord away from heat, oil, and sharp edges. extension cord with lighted end (Model PJEXT50-B). Visit snowjoe.com to purchase this extension cord online or, to order by phone, call 1-866-SNOWJOE (1-866-766-9563). • Do not use an extension cord over 100 ft (30 m).

  • Page 4: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand and follow all instructions in the WARNING! Electrical shock hazard.

  • Page 5: Technical Data

    Know Your Electric Snow Shovel Read the owner’s manual and safety instructions carefully before operating the electric snow shovel. Compare the illustration below to the electric snow shovel in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

  • Page 6: Carton Contents

    + Sun Joe customer service center at ® ® 1-866-SNOWJOE (1-866-766-9563). 3. Insert the joint-fixing bolt through the aligned holes in the NOTE: Do not discard the shipping carton and packaging upper and lower tubes and secure the other end with the material until you are ready to use your new electric snow joint-fixing knob (Figs.

  • Page 7: Operation

    Snow Joe + Sun Joe Power Joe SJTW-A ® ® 14-gauge 50-foot extension cord with lighted end (Model Extension cord PJEXT50-B). Visit snowjoe.com to purchase this extension cord online or, to order by phone, call 1-866-SNOWJOE (1-866-766-9563).

  • Page 8: Starting And Stopping

    To order genuine replacement parts or accessories for the of the area before beginning work. Snow Joe Plus 323E electric snow shovel, please visit ® Starting and Stopping snowjoe.com or contact the Snow Joe...
  • Page 9 2. Secure the auger as you disassemble the auger assembly 5. Remove the screws and the bushings from the drive wheel nut (Fig. 12). (Fig. 15). Fig. 15 Fig. 12 Screws and bushings Auger assembly 3. Disassemble the left side cover by removing the five (5) 6.

  • Page 10: Replacing The Belt

    8. Install the replacement auger by following the above steps 4. Remove the four (4) screws and two (2) nuts from the in reverse order (Fig. 18). motor support (Fig. 20). Fig. 18 Fig. 20 Motor support with 4 screws 2 nuts Auger 5.

  • Page 11: Replacing The Scraper Blade

    Fig. 23 Fig. 25 4 screws Motor support Drill Belt 2. Remove the old scraper blade (Fig. 26). 7. Replace the worn belt with a new belt, then screw the motor support back into position (Fig. 24). Fig. 26 Fig. 24 Motor support Scraper blade Belt...

  • Page 12: Service And Support

    Snow Joe Universal Fit Snow Shovel Cover ® (Model SJPCVR). To order this cover online, visit snow joe.com or, to order by phone, call 1-866-SNOWJOE (1-866-766-9563). Service and Support If your Snow Joe Plus 323E electric snow shovel requires ®...
  • Page 13 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe . Accessories ® ® can be ordered online at snowjoe.com or via phone by contacting the Snow Joe + Sun Joe customer service center ® ®...
  • Page 14 NOTES...
  • Page 15 You can reach us at 1-866-SNOWJOE (1-866-766-9563), online or guard of your product. All products require a valid proof at snowjoe.com, via email at help@snowjoe.com or tweet us of purchase. @snowjoe.
