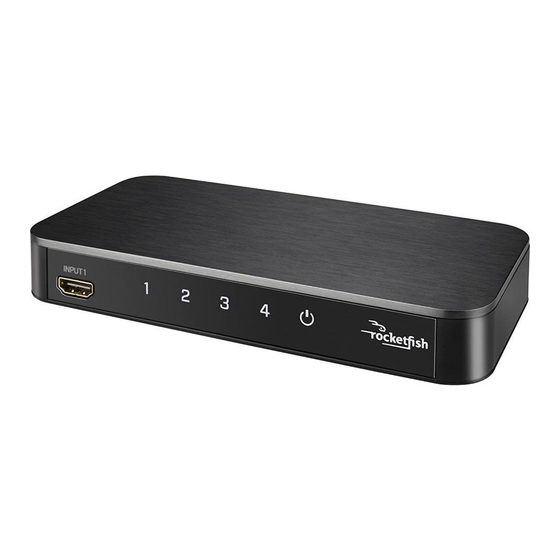

RocketFish RF-G1501 Quick Setup Manual

FRONT
Input LEDs/ Power LED/
buttons button
HDMI input
INPUT 1 1 2 3 4
Input selectors
BACK
OUTPUT INPUT 4 INPUT 3 INPUT 2
DC5V
Power
HDMI HDMI
port output inputs

PACKAGE CONTENTS

• 4-Port HDMI Switch
• Power adapter
• Remote control
• Quick Setup Guide
Before using your new product, please read these instructions to prevent any damage.

FEATURES

REMOTE
Your 4-Port HDMI Switch supports 4K video and next-generation audio.
• Resolution – 480p, 720p, 1080p, and 4K (4096 X 2160)
Power • Frame Rate – Up to 4k at 60 Hz (1080p at 120 Hz)*
• Color – Deep Color, HDR, and other enhanced color specifications
• Audio – Works with Dolby TrueHD, DTS-HD, and all audio formats
POWER
ON/OFF
supported by the HDMI 2.0 standard
• Auto Switch – When a source device is turned on, the switch
automatically detects and switches to that device's input
1
*Note: TVs with high internal refresh rates (such as 240 Hz) are compatible.
2 4
SELECT
MODES
The specifications refer to source signal and not TV refresh rate.
3

SETTING UP YOUR HDMI SWITCH

1 Connect HDMI cables from your source devices to the
RF-G1501
switch's INPUT ports.
2 Connect an HDMI cable from your TV (or projector) to the
switch's OUTPUT port.
3 Connect the power adapter from the DC 5V port to a power outlet.
The power LED and an input LED light up.
Note ： To fully support 4K resolution, connect the input and output channels
using HDMI PREMIUM Certified cables (within 3 meters).
Optional wall-mounting: Install two screws 4 in. (10.2 cm) apart into your wall,
then hang the switch on the screws. Mounting hardware is not included.

USING YOUR HDMI SWITCH

1 Turn on your TV and source device.
2 To turn on your switch:
• Press POWER ON/OFF on your remote control.
OR
• Tap the (power) symbol on your switch.
RF-G1501 / RF-G1501-C, 4-Port HDMI Switch with 4K Compatibility
QUICK SETUP GUIDE
Game
DVD Satellite
Console Player Receiver
HDMI
Input 2
HDMI
Input 3
HDMI
Input 4
HDMI
Output
HDMI
Input 1
Note: When the switch is turned on, it automatically switches to the last
input that was used.
3 To select a source device:
• Press the number on your remote that matches the input of the
source device you want.
OR
• Tap the number on your switch that matches the input
your source device is connected to.
The corresponding input LED lights.
4 Use your source device as usual to play video and audio.
5 When finished, press and hold (power) to turn off your switch.
Note: You may leave the power on while not in use.
4K UltraHD
4K
Blu-ray TV
Power
adapter
