Two-way HDMI Splitter
Package contents Features
• HDMI splitter • Sends HDMI A/V signals from a single source,
• AC power adapter such as a Blu-ray/DVD player, set-top box, to
• Quick Setup Guide two destinations, such as a TV and A/V receiver.
• Supports full 1080p video resolution
You will need:
• Supports 3D video
• High-speed HDMI cables
• Compatible with most TV and PC monitor
video resolutions

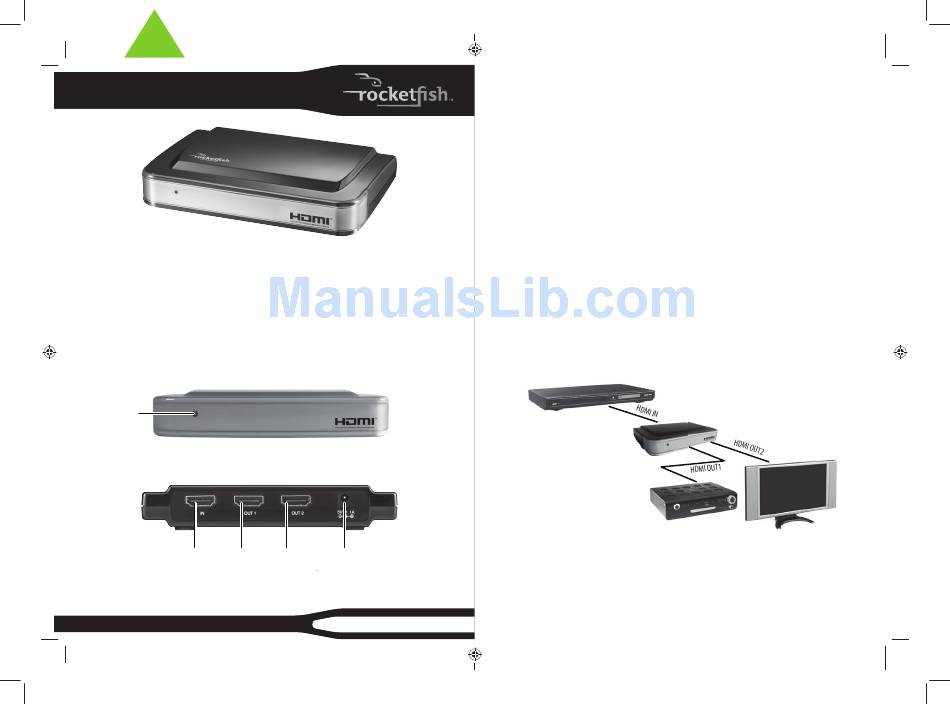

Front
Power LED
Back
HDMI IN port HDMI
OUT 1 port
RF-G1182
RF-G1182_10-0882_QSG_V1.indd 1 RF-G1182_10-0882_QSG_V1.indd 1
HDMI DC power 5V/1A connector
OUT 2 port
QUICK SETUP GUIDE
HDMI splitter basics
This Rocketfi sh two-way HDMI splitter will send the HDMI audio and video signals
from a single source, such as a Blu-ray/DVD player or cable/satellite box, to two
destinations, such as a TV and A/V receiver. It is ideal for sending the audio signals
from a 3D Blu-ray player to an A/V receiver that does not support 3D video pass-
thru.
Setting up your HDMI splitter
1 Connect one end of a high-speed HDMI cable (not included) to your video
source and the other end to the IN port on the HDMI splitter.
2 Connect another high-speed HDMI cable to your HDMI splitter's OUT 1 port to
an HDTV.
3 Connect another high-speed HDMI cable to your HDMI splitter's OUT 2 port to
an A/V receiver.
4 Connect the included AC adapter from the DC jack on the HDMI splitter to a
standard 110/120V AC outlet. Power on all connected devices and operate per
the manufacturer's instructions.
Connecting a TV and A/V receiver to a single HDMI source
HDMI video source
HDMI splitter
A/V receiver
HDTV
