Dual-flame
spill-proof
burners (cont.)
To remove the burner parts:
NOTE: Before removing the burner parts,
remember their size and location. Replace
them in the same location after cleaning
for proper burner operation.
1. Turn all controls OFF before removing any
burner parts.
2. When cool, you may lift off the burner grates,
burner caps and burner heads for easier
cleaning. Do not remove the burner bases.

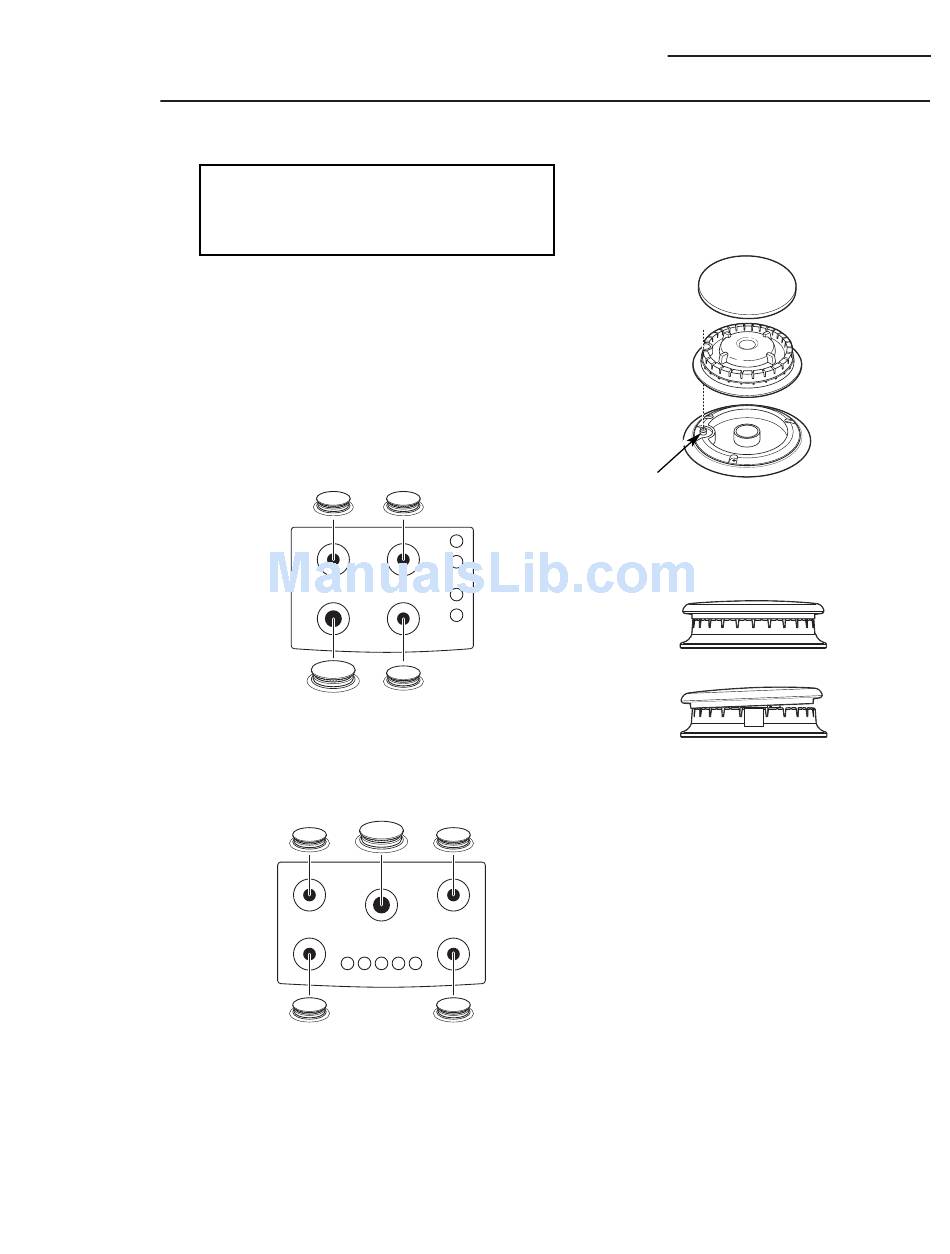

To replace the burner parts:
Make sure that the burner parts are replaced in
the correct location.
Medium
Burner
Large
Burner
On model ZGU384, there is one large burner
head and burner cap and three sets of medium
burner heads and burner caps.
Large
Medium
Burner Burner
Medium
Burner
On model ZGU385, there is one large burner
head and burner cap and four sets of medium
burner heads and burner caps.
These burner parts are not interchangeable.
Care and Cleaning
1. Replace the burner head on top of the burner
base, making sure that the hole in the burner
head is properly aligned with the electrode in
the burner base. A small gap between the
base and head is normal.
Medium
Burner
2. Place the burner cap on top of the burner
head. Make sure that the burner cap is
properly seated on the burner head.
Medium
Burner
Medium
Burner
Medium
Burner
Gas Cooktop
Burner cap
Burner head
Electrode
Burner Assembly
Burner cap properly seated
Burner cap not properly seated
Burner Cap Alignment
Burner
base
13
