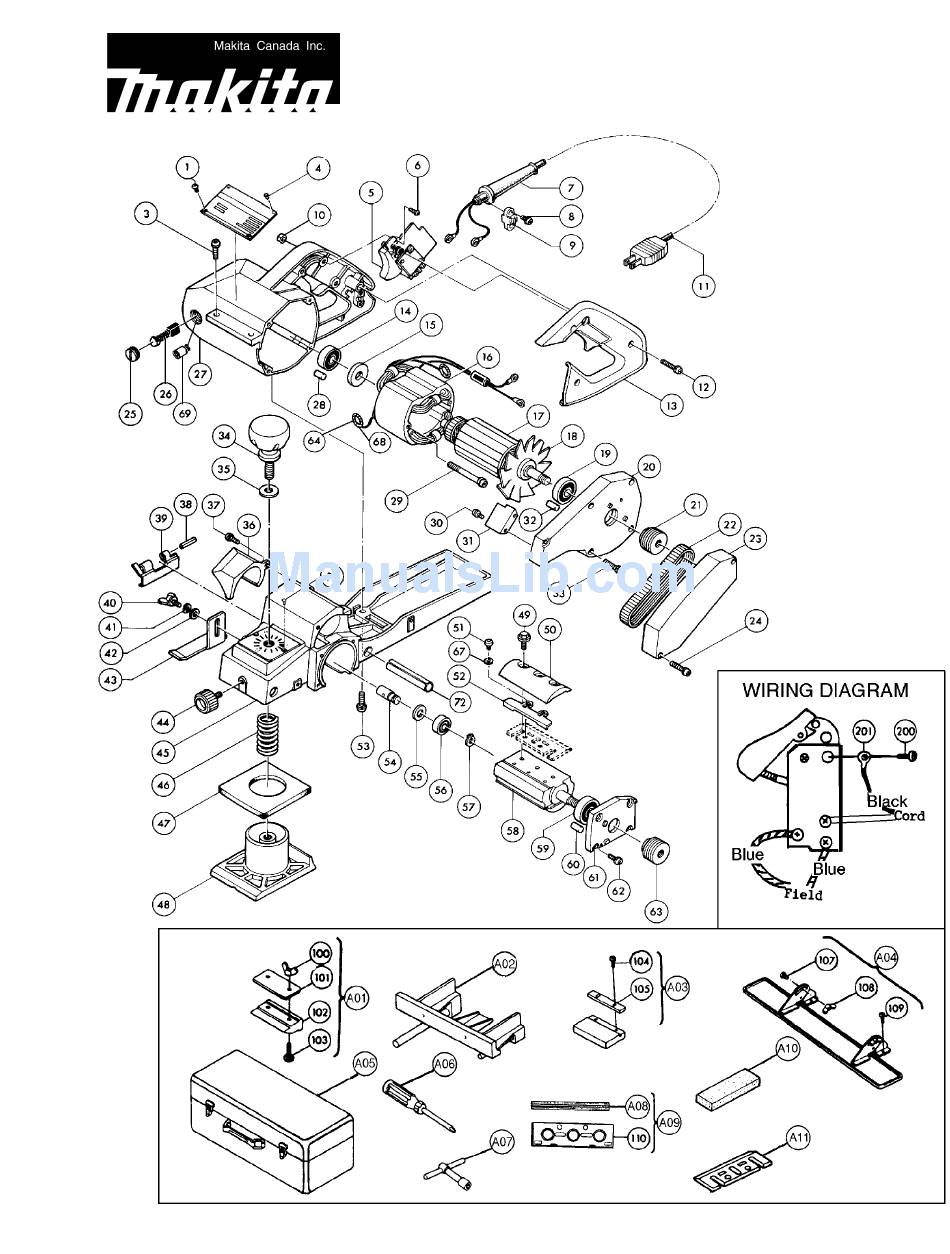

- Page 1 3-1/4" POWER PLANER Model 1100(MJ) 11-2001...
- Page 2 P.H. Screw M5x18 (With Washer) Gauge Plate Countersunk Square Neck Bolt M5x12 Wing Nut M5 P.H. Screw M5x8 (With Washer) Set Plate(For Mini Planer Blade) Set Plate Set (2pcs/Set) (For Mini Planer Blade) (+) P.H. Screw M4x8 Insulated Eye Terminal FV1.25-M4...
- Page 3 Item No. Set Plate Mini Planer Blade Set Plate (2pcs) & Mini Planer Blade (1 set) When replacing Set Plate, please change both Set Plates with either Type 1 (341492-7) or Type 2 (343433-9) Set Plates otherwise unbalance will occur.
- Page 4 4. Change on Motor Hsg. Com. Item No. Description P.H. Screw M4x6 Strain Relief Motor Hsg. Com. Serial No. P.H. Screw M4x14 Flat Washer 5 Bearing Cover Set Screw M5x8 Above parts are completely interchangeable as a set. 4 Model 1100 Type 1 911101-8 2 Pcs...
