Use and Care Instructions

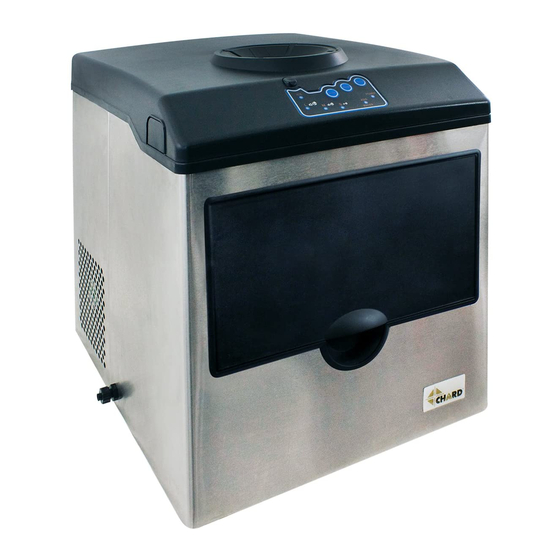

Ice Maker
Durable, high-quality stainless steel finish
*water bottle not included
*Bouteille d'eau non comprise
with
water dispenser
• Unique design uses "water cooler"-style
five gallon water jug to conveniently
supply ice or cold drinking water.*
• Choose from small, medium,
or large cubes
• Small or medium cubes great for drinks
• Large cubes great for coolers
• Rugged stainless steel body ensures
good looks and durability
• La conception unique utilise un pot à eau de 5 gallons de style «
refroidisseur d'eau » pour fournir de la glace ou de l'eau froide.*
• Vous choisissez entre de petits, moyens ou grands cubes
• Les petits et moyens cubes sont idéaux pour les boissons
• Les grands cubes sont idéaux pour les glacières
• Le corps solide en acier inoxydable assure un aspect attrayant
et de la durabilité
Advertisement
Table of Contents
Related Manuals for Chard IM-15SS
Summary of Contents for Chard IM-15SS
- Page 1 Use and Care Instructions Ice Maker with water dispenser Durable, high-quality stainless steel finish • Unique design uses “water cooler”-style five gallon water jug to conveniently supply ice or cold drinking water.* • Choose from small, medium, or large cubes • Small or medium cubes great for drinks • Large cubes great for coolers • Rugged stainless steel body ensures good looks and durability • La conception unique utilise un pot à eau de 5 gallons de style « refroidisseur d’eau » pour fournir de la glace ou de l’eau froide.* • Vous choisissez entre de petits, moyens ou grands cubes • Les petits et moyens cubes sont idéaux pour les boissons • Les grands cubes sont idéaux pour les glacières *water bottle not included • Le corps solide en acier inoxydable assure un aspect attrayant et de la durabilité *Bouteille d’eau non comprise...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS……………………………………………….…2 PREPARING YOUR ICE MAKER FOR USE …………………………………………………………………….3 IMPORTANT SAFETY TIPS … … … … … … … … … … … … … … … … … … … … … …... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. We have provided many important safety messages manual and your appliance. Always read and obey all safety massages. This is the safety alert symbol: All safety messages will follow the safety alert symbol and the word “DANGER” or “WARNING”. DANGER WARNING These words mean:... -
Page 4: Preparing Your Ice Maker For Use
PREPARING YOUR ICE MAKER FOR USE IMPORTANT SAFETY TIPS When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before using any appliance. ... -
Page 5: Getting To Know Your Unit
GETTING TO KNOW YOUR UNIT UNIT SMART CORE FOR THE WATER BOTTLE BUTTON TO POP UP THE WATER FAUCET OPERATION PANEL ICE CUBE BASKET Can be pulled out AIR OUTLET COLD WATER FAUCET (Need to be pop up by the button near the operation panel) WATER DRAIN CAP OPERATION PANEL... -
Page 6: Operating Procedures & Maintenance
OPERATING PROCEDURES & MAINTENANCE UNPACKING YOUR ICE MAKER 1. Remove the exterior and interior packaging. Check that ice scoop is included. If any parts are missing, please contact our customer service. 2. Clean the interior with lukewarm water and a soft cloth. Take out the ice basket and clean it . -
Page 7: Connecting Your Ice Maker
CONNECTING YOUR ICE MAKER DANGER * Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged please call our customer service. 1. This unit should be properly grounded for your safety. The power cord of this appliance is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electric shock. -
Page 8: Using Your Ice Maker
USING YOUR ICE MAKER MAKING THE ICE -CUBE 1. Press “ON/OFF” on the control panel to begin the ice making cycle. 2. Select the size of the ice cube by pressing the “Select” button. 3. The ice making cycle lasts 6 to 15 minutes, depending on the size of the ice cube selection and the ambient temperature. -
Page 9: Troubleshooting
Push this button to let the cold water faucet pop up. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Stop the ice maker, replace with a Lack of Water. new bottle full of water, and then “WATER” indicator is on. restart it. One of two water filter is Check both of water filter and blocked. -
Page 10: Technical Parameters & Circuit Diagram
TECHNICAL PARAMETERS & CIRCUIT DIAGRAM TECHNICAL PARAMETERS CIRCUIT DIAGRAM... -
Page 11: After Sales Service
Model: HZB-15/BF ELECTRICAL DIAGRAM White White Black Blue FOR ICE-MAKER Motor For Solenoid Startor Black Ice shovel Black Valve For rotation Ice-melting POWER Comp WATER PUMP For SUPPLY PUMP Water Faucet MOTOR Blue Black Black Black Black Overload Protector Yellow MOTOR FAN MOTOR VALVE...
