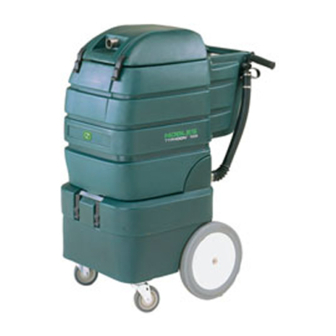

- Page 1 Typhoon Wet/Dry Battery Vacuum Model No.: Operator and Parts Manual 608817 608818 - PAC NOBLES 12875 RANSOM STREET HOLLAND MI 49424 U.S.A. 608819 CUSTOMER SERVICE: 1-800-365-6625 FAX: 1–800–678–4240 Rev. 00 (09-99) Home Find... Go To..
-
Page 2: Table Of Contents
Distributor. E1999 Tennant Company Printed in the U.S.A. Nobles is a registered United States trademark of Tennant Company. This machine will provide excellent service. However, Typhoon is a United States trademark of Tennant Company. the best results will be obtained at minimum costs if: The machine is operated with reasonable care. -
Page 3: Safety Precautions
OPERATION 5. When servicing machine: SAFETY PRECAUTIONS – Disconnect battery connections before working on machine. – Wear protective gloves when handling This machine is intended for commercial use. It is batteries or battery cables. suited to pick up water or dry debris in an indoor –... -
Page 4: Machine Components
OPERATION MACHINE COMPONENTS 1. Bag Compartment Cover 7. Compartment Latches 2. Vacuum Hose Snout 8. Swivel Casters/300 mm (12 in) Rear Wheels 3. Control Grips 9. Squeegee Kit (optional) 4. Squeegee Kit Vacuum Hose (optional) 10. Machine ON/OFF Switch 5. Vacuum Bag Compartment/ 11. -
Page 5: Machine Installation
OPERATION MACHINE INSTALLATION MACHINE UNCRATING Carefully check carton for signs of damage. Report damage at once to carrier. Check contents list below to ensure all standard accessories are included. Carton Contents: 1 – Battery Hardware Package FIG. 1. 1 – 3m (10 ft) Vacuum Hose 3. - Page 6 OPERATION 4. Install squeegee mounting bracket as shown. 7. Position pedal between two L–brackets at rear of Secure with screw and washers that you removed machine and secure with clevis and cotter pins (Figure 3.). (Figure 6. ). FIG. 3. FIG.
-
Page 7: Machine Setup
OPERATION For easy debris disposal and to increase the life of cloth filter bag, use a paper vacuum bag with the MACHINE SETUP cloth bag. Place the paper bag inside of cloth bag and tuck the top of paper bag around outside rim of cloth bag. -
Page 8: Squeegee Operation (Option)
OPERATION 2. Select desired accessory tool and connect to ATTENTION: If foam develops in recovery tank during wet vacuuming, use a quality defoamer vacuum hose (Figure 12.). chemical to eliminate the foam. Foam buildup will NOT activate float, and will cause damage to the vacuum motor. -
Page 9: Battery Charging
OPERATION BATTERY CHARGING The following charging instructions are intended for manufacturer supplied 24V chargers. Use the following recommended charger specifications to prevent battery damage. CHARGER SPECIFICATIONS: FIG. 17. OUTPUT VOLTAGE - 24 VOLTS 5. With the charger DC outlet plug disconnected from OUTPUT CURRENT - 15 AMPS batteries, plug charger power supply cord into a AUTOMATIC SHUTOFF CIRCUIT... -
Page 10: When To Recharge Batteries
OPERATION WHEN TO RECHARGE BATTERIES WEEKLY MAINTENANCE To prolong the life of your batteries: 1. Remove and clean the float shut–off screen from recovery tank (Figure 20.). Recharge batteries after every 4 hours of run time. Do not charge batteries after every short time use. Wait until a total of 4 hours of run time. -
Page 11: Battery Maintenance
OPERATION BATTERY MAINTENANCE STORING MACHINE WARNING: Batteries emit hydrogen gas. Explosion or fire can result. Keep sparks and Before storing the machine perform the following open flame away. Keep battery compartment open instructions below: when charging. 1. Empty and rinse out recovery tank and accessory FOR SAFETY: When servicing machine, wear tools. -
Page 12: Trouble Shooting
OPERATION TROUBLE SHOOTING PROBLEM CAUSE SOLUTION No power. Faulty ON/OFF switch Contact Service Center. Batteries need charging. See BATTERY CHARGING. Faulty battery(s). Replace battery(s). Loose battery cable. Tighten loose cables. Batteries are not connected See BATTERY INSTALLATION. correctly. Vacuum motor thermal overload Check air flow for obstruction, wait 20 minutes tripped. -
Page 13: Wiring Diagram
WIRING DIAGRAM SWITCH HANDLE VACUUM MOTOR CHARGER PLUG 12 VOLT 12 VOLT BATTERY BATTERY BLACK JUMPER Home Find... Go To.. Typhoont Battery (09–97) -
Page 14: Parts List
PARTS LIST UPPER HOUSING PARTS #600654 - LABEL, DASH 11 10 Home Find... Go To.. Typhoont 16B (04–98) - Page 15 NUT, LOCK ASM. PVC ELBOW 230482.BK 140308 BRACKET, SUPPORT CLAMP 160482 140003 HOSE, VACUUM WASHER, FENDER 608186 140199 DECAL, NOBLES LOGO SCREW, 1/4–20X4 1/2 608494 100380 DECAL, ”TYPHOON 16B” MOUNT, VAC MOTOR 100038 120649 GASKET DECAL, WARNING 130397 MOTOR, VAC 24VDC...
-
Page 16: Lower Housing Parts
PARTS LIST LOWER HOUSING PARTS Home Find... Go To.. Typhoont 16B (04–98) - Page 17 PARTS LIST LOWER HOUSING PARTS LIST PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 230950 140015 BRACKET, SQUEEGEE MOUNT WASHER, LOCK 140016 140226 WASHER, LOCK SCREW, 5/16–18X5/8 140553 140553 SCREW, 1/4–20X1/2 SCREW, 1/4–20X1/2 27833 140016 PLUG, CONNECTOR WASHER, LOCK 140827 230746 SCREW, 6–32X3/4 BRACKET, AXLE...
-
Page 18: Options
OPTIONS ACCESSORY KITS PART # DESCRIPTION PART # DESCRIPTION QTY. QTY. 190108 KIT, SQUEEGEE, 660 mm (26 in) 190142 KIT, ACCESSORY TOOL 190972 KIT, SQUEEGEE, 840 mm (33 in) 190722 Two Piece Wand 190958 KIT, SQUEEGEE, 990 mm (39 in) 603840 360 mm (14 in) Carpet Tool Scalloped Face... - Page 19 OPTIONS SQUEEGEE KIT BREAKDOWN Factory Installed on Machine. Home Find... Go To.. Typhoont 16B (04–98)
