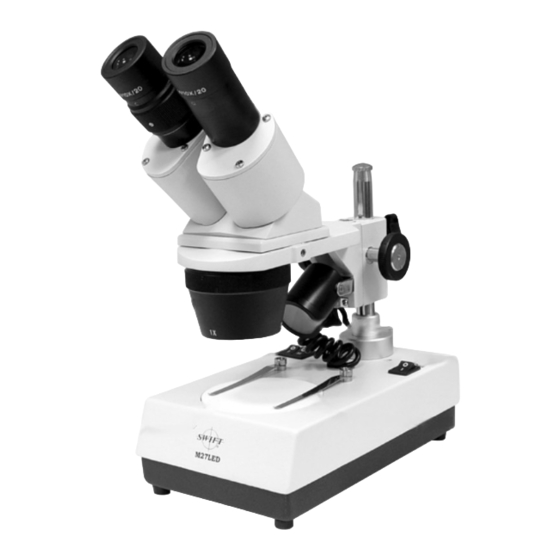

- Page 1 Swift M27LED Series Stereo Microscope Use and Care Manual SWIFT OPTICAL Enduring Quality and Technical Excellence...
- Page 2 It is built to rigid optical and mechanical standards. The scope is the result of the continuing progress of Swift Optical Instruments, Inc. to provide a durable, modern instrument that meets the requirements of heavy classroom use.
- Page 3 FEATURES OF YOUR SWIFT M27LED TRI-POWER STEREO MICROSCOPE OPTICAL SYSTEM: Only the highest quality prisms are used in Swift optical systems. All optical surfaces are hard coated to reduce reflection and increase light transmission. EYEPIECES: The M27LED Stereo Microscope comes with 10XD widefield eyepieces.
- Page 4 Unauthorized personnel should never disassemble lens assemblies or other precision components. For information regarding service, contact your local Swift authorized repair dealer, or call Swift customer service at (800) 523- 4544. Replacement top LED illuminator (incident illuminator)- Part # MA14773, 3.4V/0.3W...
- Page 5 To change the top LED illuminator: 1. Unscrew the top illuminator housing cover that also holds the light filter in place. 2. Remove the metal ring spacer and pull the LED bulb and round circuit card assembly out of the illuminator housing. 3.
- Page 6 CORRECTION: Try to adjust the interpupillary distance of the eyepieces. If the problem persists, the objective lenses may need to be re-aligned. Please contact Swift or your local Swift authorized repair dealer. C. PROBLEM: The focus knobs slip at either upper or lower limits of travel.
-
Page 7: Specifications
SPECIFICATIONS Model # Objective M27LED-123 M27LED-124 Total Magnification Field of View 20 mm 20 mm 10 mm 10 mm 6.7 mm 5 mm Working Distance 57 mm 48 mm 57 mm 48 mm 57 mm 48 mm Depth of View 0.17 –... - Page 8 SWIFT OPTICAL INSTRUMENTS, INC. LIMITED LIFETIME WARRANTY Please see our website, www.swiftoptical.com, for complete warranty details and exclusions. Swift Optical Instruments, Inc.● (877) 967-9438 ● www.swiftoptical.com...
