- Page 1 Swift M29TZ-SM99CL-BTW1 Microscope Use and Care Manual SWIFT OPTICAL Enduring Quality and Technical Excellence...

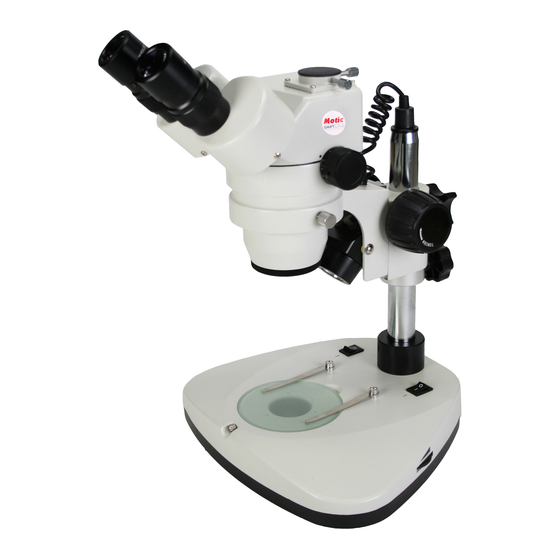

- Page 2 M29TZ-SM99CL The Swift M29TZ zoom stereo microscope is ideal for laboratory, industrial and educational use. The M29TZ is designed to produce a crisp image (erect) with a generous field of view and an excellent depth of focus. It features zoom objectives with continuous magnification ranges from 10X to 40X which is not possible with a fixed power stereo microscope.
- Page 3 Stereoscopic microscopes are designed for viewing 3-dimensional objects, inspection or assembly of small parts, and for dissection of biological specimen at low magnification. The 35° inclined viewing head provides an upright, unreversed image which permits easy manipulation of object being viewed while looking through the microscope.
-
Page 4: Interpupillary Adjustment
OPERATION 1. ILLUMINATION A. The microscope is furnished with two stage plates. The frosted glass plate is used when viewing transparent specimen slides or for viewing some specimen thin enough through which light can pass (insect wings, etc.) The plastic black/white contrast plate can be used when viewing opaque objects or for dissecting. -
Page 5: Specification Chart
F. Adjust zoom control to the highest magnification by aligning the number “4” on knob to the black index dot on head. G. While looking through right eyepiece with one eye, rotate focusing control knob until specimen comes into sharp focus through right eyepiece. H. -
Page 6: Electrical Maintenance
MAINTENANCE WARNING: For your own safety, turn switch off and remove plug from power source before maintaining your microscope. If the power cord is worn, cut or damaged in any way, have it replaced immediately to avoid shock or fire hazard. 1. - Page 7 OPTIONAL BRACKET / CAMERA ASSEMBLY Your M29TZ-SM99CL microscope is equipped with a C-Mount lens, which when paired with a Motic Digital Table or Camera allow for digital microscopy. 1. Take the plastic trinocular cap of the top of the trinocular port. 2.
- Page 8 M29TZ-SM99CL-BTW SERIES Tablet Bracket C-Ring (Optional) C-Mount Attachment (Provide by Microscope Manufacturer – Separate purchase) CONNECTING THE CAMERA TO BTW8 AND BTW10 TABLET 1. Connect the tablet to the camera: *Image of BTW camera may differ, but connection is the same* BTW8 and BTW10 2.
- Page 9 . Plug the power DIN into the back of the camera – The power plug is very snug, make sure it is properly inserted NOTE: This connection cannot be loose – insert completely: BTW8 Connection Shown Below 4. Wait 2 minutes and press the power button once – BTW8 BTW10...
- Page 10 5. You should see this 0% (if the battery is completely discharged) Note: if you never see this image after pressing the power button: Connect the power pack and micro-USB into the tablet directly. Wait 2 minutes and try again. 6.
- Page 11 TABLET ACCESSORIES Please Note: Items included may differ in appearance from items pictured above HDMI Cable This cable will enable you to connect to an HDMI ready device, to view your tablet on a larger format. The displayed image will replicate the displayed image of the tablet.
- Page 12 TABLET OPERATION - BTW8 (top) – BTW10 (bottom) Volume adjustment - decrease Volume adjustment - increase Hold for a few seconds to turn unit on Micro USB Port for charging tablet and connecting to bracket camera Provides sound via earphone/speaker Connects to HD ready device via HDMI cable Micro SD Card Slot for storing images on Micro SD Card (4GB included)
- Page 13 POWER MANAGEMENT BTW 8 and BTW 10 Power to the BTW camera is supplied via the coiled USB cable provided with this product. Since the tablet batteries must supply power for both the tablet and camera simultaneously, approximately 2hrs of continued used can be expected. 8hrs of recharging is required to replenish the tablet battery.
- Page 14 CONNECTING THE BTW TABLET TO EXISTING WIRELESS NETWORK The BTW camera has the unique ability to connect to your existing network system using the MoticHub feature. 1. On the home screen of the tablet select the Settings icon. 2. Select WiFi within the Settings window. 3.
- Page 15 4. Now you have added the tablet to your WiFi network 5. On the home screen of the tablet select the MotiConnect app. 6. Then select the MoticHub icon and MoticHub will launch. 7. Turn MoticHub On. 8. MoticHub will create an IP address for the tablet on your network. 9.
- Page 16 Connecting your WiFi enabled device to the BTW tablet 1. Make sure you are first connected to your office/home WiFi network. 2. Download the MotiConnect app from the App Store, Google Play, or Chrome Store, to your android or apple device/tablet/phone. 3.
- Page 17 7. Now select your New Camera 8. You can now view the image live on the MotiConnect app as well as capture, measure and annotate the image using the tools provided. Connecting your WiFi enabled computer/laptop to the BTW camera connected to your local network 1.
- Page 18 4. The Video Device box should have the Moticam X selected. 5. Click on Open to open the Moticam X IP address box. 6. In the open Moticam X IP address box type in the IP address generated by the MoticHub feature of the BTW tablet. 7.
-
Page 19: Help Button
TABLET SOFTWARE This android tablet comes equipped will all the necessary software needed to start using your equipment out of the box. Since it is an android tablet, you will be able to connect to your office/school Wi-Fi network to access the internet and download additional applications. - Page 20 CALIBRATION – (*Optional – not necessary to use your microscope*) To prepare for the calibration process, please make sure you have the calibration slide. The calibration slide has four individual dark round circles. Each dark round circle corresponds with each objective on your microscope. ...
- Page 21 Now put the Calibration slide on the stage of the microscope and focus the dot in the center of the screen. For 4x Objective, use the 1.5mm dot. For 10x Objective, use the 0.6mm dot. For the 40x Objective, use the 0.15mm dot. For the 100x Objective, use the 0.07mm dot.
- Page 22 TRANSFERING IMAGES TO YOUR COMPUTER By default all your images are saved to the Micro SD card included with your M29TZ-SM99CL-BTW1 series microscope. This card is provided as a courtesy. If it is missing or lost, you will need to purchase a replacement. It is highly recommend that you purchase a Micro SD to Standard SD card adapter.
- Page 23 This will open the Motic Images help file contents, containing the full help menu: Motic Live 2.0 Live Imaging Module If you are connecting your camera via WiFi to your laptop of WiFi enabled computer, you can use the Motic Images 2.0 software to view and capture your images.
- Page 24 This will open the Motic Live Imaging Module help file, containing the full help menu: USING MOTIC IMAGES 3.0 SOFTWARE WITH THE BTW CAMERA To connect the BTW camera (USB Mode) to a computer or laptop, you will need to download and install Motic Images 3.0, and purchase separately, an optional A-Male to Mini-B USB 2.0 cable (Available from any electronics website or retail store).
- Page 25 Once the Help window open you will find the help guide within. Motic Live Imaging Module Help To access the Motic Images Live Imaging help menu, click on Help located at the top left hand side of the screen. Once the Help window open you will find the help guide within.
-
Page 26: Troubleshooting
TROUBLESHOOTING PROBLEM REASON FOR PROBLEM SOLUTION A light fails to operate. Items not properly connected Check all electrical connections from wall outlet microscope input. Switches not in proper position. Check switches and intensity controls. Transmitted LED bulb burned out. Replace LED bulb Send lamp assembly to National for bulb replacement. - Page 27 SWIFT OPTICAL INSTRUMENTS, INC. LIMITED LIFETIME WARRANTY Please see our website, www.swiftoptical.com, for complete warranty details and exclusions. Swift Optical Instruments, Inc.● (877) 967-9438 ● www.swiftoptical.com...
