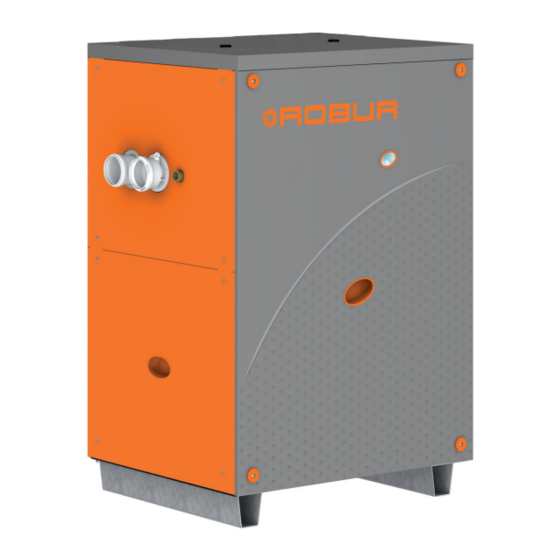

Robur GAHP-GS Installation, User And Maintenance Manual

Water/water gas absorption heat pump
Hide thumbs Also See for GAHP-GS:
Table of Contents

Advertisement

Quick Links

See also: Installation, Use and Maintenance Manual
Installation, user and
maintenance manual
GAHP-GS/WS
water/water gas absorption heat pump
powered by gas and renewable energy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GAHP-GS and is the answer not in the manual?

Questions and answers

Related Manuals for Robur GAHP-GS

Summary of Contents for Robur GAHP-GS

  • Page 1 Installation, user and maintenance manual GAHP-GS/WS water/water gas absorption heat pump powered by gas and renewable energy...
  • Page 2 Revision: M Code: D-LBR509 This manual has been drawn up and printed by Robur S.p.A.; whole or partial reproduction of this manual is prohibited. The original is filed at Robur S.p.A. Any use of this manual other than for personal consultation must be previously authorised by Robur S.p.A.

  • Page 3: Table Of Contents

    Installation, user and maintenance manual – GAHP-GS/WS Index of Contents PRefACe ������������������������������������������������������������������������������������������������������������4 sAfetY WARnInGs ������������������������������������������������������������������������������������������5 oVeRVIeW And teCHnICAL feAtURes ��������������������������������������������������������8 GENERAL INFORMATION ................................8 NOTES ON OPERATION OF THE APPLIANCE ........................10 TECHNICAL MANUFACTURING CHARACTERISTICS......................11 TECHNICAL DATA ..................................12 DIMENSIONS AND SERVICE PANEL ............................15 noRMAL oPeRAtIon ������������������������������������������������������������������������������������17...

  • Page 4: Preface

    DDC. In this case, refer to the manual supplied with it. definitions, terms and icons APPLIANCE: this term refers to the gas absorption heat pump GAHP-GS and/or gas ab- sorption heat pump GAHP-WS. CCP: "Comfort Control Panel".

  • Page 5: Safety Warnings

    Installation, user and maintenance manual – GAHP-GS/WS sAfetY WARnInGs Packing items (plastic bags, polystyrene foam, nails, etc.) must be kept out of the reach of children, as they are potentially dangerous. The appliance must only be used for the purposes for which it has been designed. Any other use is considered inappropriate and therefore dangerous.
  • Page 6 • do not use electrical devices such as telephones, multimeters or other equipment that can cause sparks next to the appliance; • shut off gas supply closing the isolation valve; • cut off electrical power opening the main breaker upstream of the appliance (to be provided by the electrical installer in an appropriate panel);...
  • Page 7 Installation, user and maintenance manual – GAHP-GS/WS Make sure the air supply is free of aggressive substances. ACId CondensAte Drain out the condensate produced during combustion as indicated in paragraph 5.5 CONDENSATE DISCHARGE → 31. exPLosIVe/fLAMMABLe MAteRIALs HAZARd Do not use or store flammable materials (paper, solvents, paint, etc.) in the vicinity of the appliance.

  • Page 8: Overview And Technical Features

    oVeRVIeW And teCHnICAL feAtURes In this section you will find general information, hints on the operating principle of the appliance and its manufacturing features. This section also contains technical data and dimensional drawings of the appliance. 3�1 GeneRAL InfoRMAtIon This manual is an integral and essential part of the product and must be delivered to the user together with the appliance.
  • Page 9 Installation, user and maintenance manual – GAHP-GS/WS • Every other standard and regulation concerning the installation of equipment for summer and winter air conditioning using gas fuel. The manufacturer does not accept any contractual or extra-contractual liability for any damage caused by errors in installation and/or failure to observe the abovementioned regulations and the instructions supplied by the manufacturer itself.

  • Page 10: Notes On Operation Of The Appliance

    The appliance uses the water/ammoniac absorption thermodynamic cycle (H 0 – NH to produce hot water, drawing the required energy from the ground (GAHP-GS) or, in the case of the GAHP-WS, from ground water. The water/ammonia thermodynamic cycle used in the unit GAHP-GS/WS is realized in a hermitically sealed circuit, directly verified by the manufacturer to ensure the perfect tightness of all joints, thus making refrigerant top-ups completely unnecessary.

  • Page 11: Technical Manufacturing Characteristics

    The modulating function (both in terms of combustion and flow rate) combined with fumes condensation results in efficiencies of up to 172%. The GAHP-GS/WS can operate in ambient temperatures of 0°C to +45°C. The GAHP heat pump can be controlled with the CCP/DDC or with a switch on the con- sent circuit.

  • Page 12: Technical Data

    3�4 teCHnICAL dAtA table 3�1 – GS HT/LT technical data GAHP GS LT GAHP GS HT oPeRAtIon WHen HeAtInG G.U.E. gas usage efficiency 150 (1) 149 (1) Thermal power delivered 37,7 (1) 37,6 (1) OPERATING POINT B0W50* (Brine inlet 0°C, hot Water outlet +50°C) Power recovered from 12,4 12,6...
  • Page 13 Installation, user and maintenance manual – GAHP-GS/WS GAHP GS LT GAHP GS HT width 848 (6) Size height 1278 depth Weight In operation GeneRAL InfoRMAtIon INSTALLATION MODE C13, C33, C43, C53, C63, C83, B23P, B33 AMMONIA R717 COOLING FLUID WATER H2O MAXIMUM PRESSURE OF THE COOLING CIRCUIT * data tested by VDE and DVGW-Forschungsstelle.
  • Page 14 GAHP WS Voltage TYPE SINGLE PHASE Power supply 50 Hz Frequency supply Electrical power absorption nominal 0,47 (5) Degree of protection InstALLAtIon dAtA Level of acoustic pressure at 10 meters (maximum) dB(A) 39 (7) Minimum storage temperature °C Maximum operating pressure Maximum condensation water flow rate HOT SIDE Water content inside the apparatus...

  • Page 15: Dimensions And Service Panel

    Installation, user and maintenance manual – GAHP-GS/WS 3�5 dIMensIons And seRVICe PAneL figure 3�1 – Size LeGend Gas fitting dia. ¾" Fumes outlet dia 80 Hot water return dia. 1"¼ Combustion air intake dia 80 Renewable source water return dia. 1"¼...
  • Page 16 figure 3�2 – Outdoor unit dimensions LeGend Appliance on indicator Fumes outlet dia 80 Gas fitting dia. ¾" Combustion air intake dia 80 Hot water return dia. 1"¼ Manual reset fumes thermostat Renewable source water return dia. 1"¼ Power cable input Renewable source water delivery dia.

  • Page 17: Normal Operation

    Installation, user and maintenance manual – GAHP-GS/WS noRMAL oPeRAtIon In this section you will find all the indications necessary for the activation, regulation and control of operation of the appliance depending on the type of installation and control setup. tYPe A: controlled by CCP (see Figure 6.4 Comfort Control Panel e Accessory → 48, •...
  • Page 18 tYPe C: stAndALone APPLIAnCe Standalone appliances must be activated and deactivated only by means of the consent switch provided by the electrical installation technician. According to requirements, this consent switch may be an on/off button, an ambient thermostat, a programmable timer, or one or more voltage free contacts controlled by another process.

  • Page 19: On-Board Electronics

    2 of the controller: the procedure is illustrated in Paragraph 4.3 RESET OPERATIONS → 22. After it is reset, the appliance will make a new attempt to activate. If the appliance locks out several times, contact a Robur TAC by calling the Technical Serv- ice Department of Robur S.p.A. (tel. +39.035.888111).
  • Page 20 Menu 7 is to be used ONLY by the Robur TAC. To view the information contained in these menus, proceed as illustrated in the para- graph "How to acces the menus".
  • Page 21 To set new values for the param- eters, see Paragraph 5.8 PROGRAMMING OF HYDRAULIC PARAMETERS → 42. Menus 4, 5, 6 and 7 exclusively concern the installation technician and Robur’s author- ized Technical Assistance Centre.

  • Page 22: Reset Operations

    Actions "3", "4" and "5" are used to regulate the combustion parameters or for gas type changeovers, and are thus for use only by the installation technician or Robur TAC (for other information refer to Paragraph 7.1 PROCEDURE FOR FIRST START UP → 73).

  • Page 23: Operating Settings

    Installation, user and maintenance manual – GAHP-GS/WS To reset the flame control unit select menu 2, as indicated in the Paragraph "Accessing the Menus"; then proceed as follows: The display shows: "2." press the knob to access the menu. The display initially shows item "2.

  • Page 24: Prolonged Periods Of Disuse

    Before starting this procedure, the hydraulic system installation technician must: • ascertain whether the appliance requires any maintenance operations (con- tact your authorised Robur Technical Assistance Centre or consult Paragraph 7.2 MAINTENANCE → 77); • check that the water content of the plant is correct; if necessary, top up the cir- cuit to at least the minimum quantity (see Paragraph 5.6 FILLING OF HYDRAULIC...
  • Page 25 In case of precence of glycol, Robur advices to use inhibited glycol. Galvanized pipes are not recommended, as they are not compatible with glycol.

  • Page 26: Hydraulic Installation

    HYdRAULIC InstALLAtIon In this section you will find all the instructions necessary for installing the appliance from a hydraulic viewpoint. The hydraulic system installation technician must consult the elec- trical system installation technician in order to decide upon the correct sequence of the operations to be carried out.
  • Page 27 Installation, user and maintenance manual – GAHP-GS/WS The lifting crane and all accessory devices (braces, cables, bars) must be suitable sized for the load to be lifted. For the weight of the appliance, consult Table 3.1 GS HT/LT technical data → 12 and Table 3.2 WS technical data → 13.

  • Page 28: Hydraulic Connections

    If using rigid pipes, use vibration damping couplings at the water and gas connec- tions on the appliance's service plate to prevent vibration. As other hydronic appliances, Robur heating and cooling systems operate with grid-wa- ter of good quality. In order to prevent any possible problem of operation or reliability caused by filling or top-up water, please refer to codes and norms about water treatment for thermo-hydraulic installations in civil or industrial applications.
  • Page 29 Please make sure the pipes are properly rinsed in order to remove any residue of chemi- cal substances from the pipes. Robur is not liable for ensuring that water quality is always compliant with what reported in Table 5.1 Chemical and physical parameters of water → 29. Non-compliance with in- dications above may jeopardize the proper operation, integrity and reliability of Robur appliances, invalidating the warranty.

  • Page 30: Gas Supply

    Robur Technical Assistance Centre (TAC). These operations are described in Section 7 INITIAL ACTIVATION AND MAINTENANCE → 73. The products' guarantee is void if initial activation is not carried out by a Robur TAC. 5�4...

  • Page 31: Condensate Discharge

    Installation, user and maintenance manual – GAHP-GS/WS LPG may cause corrosion; piping and fitting materials must be resistant to this corrosion. Vertical gas pipes must be equipped with a siphon and provided with a drain for the con- densate that may form inside the pipe during cold periods. It may also be necessary to insulate the gas pipe to prevent the formation of excessive condensate.
  • Page 32 figure 5�3 – Position of condensate discharge and manual reset fumes thermostat LeGend Condensate discharge Hose connecting to condensate siphon Fumes outlet Fumes thermostat manual reset Position of condensate discharge and manual reset fumes thermostat The condensate discharge to the sewer must be: •...
  • Page 33 Installation, user and maintenance manual – GAHP-GS/WS Reconnect the plastic pipe E and secure it with its clamp. Fit the bottom left side panel. If the appliance is operated with the siphon empty, there is a risk of leaks of exhaust flue gas.

  • Page 34: Filling Of Hydraulic Circuit

    (see Table 5.3 Technical data for filling the hydraulic circuit → 36). Robur recommends using inhibited corrosion resistant monoethyl- ene glycol. Check the filter on the return pipe for impurities; clean it if necessary.
  • Page 35 (see Table 5.3 Technical data for filling the hy- draulic circuit → 36). Robur recommends using inhibited corrosion resistant mo- noethylene glycol. Glycol antifreeze may not be used on condition that the antifreeze function, which runs the circulation pumps, is activated at the CCI/DDC.
  • Page 36 To facilitate the operation of bleeding air from the hydraulic circuit, the appliance is equipped with an additional manual air bleeding valve. Use of glycol antifreeze Glycols, normally used to lower the freezing point of water, are substances in an inter- mediate state of oxidation which, in the presence of oxidising agents such as oxygen, are transformed into corresponding acids.

  • Page 37: Exhaust Flue Gas

    Installation, user and maintenance manual – GAHP-GS/WS 5�7 exHAUst fLUe GAs The appliance is homologated for configuration as a type C and B installation. The follow- ing installations are possible: C13, C33, C43, C53, C63, C83, B23P and B33. The appliance is supplied in configuration C63.
  • Page 38 figure 5�6 – C33 type installation LeGend See table below Roof mounted co-axial outlet DN80/125 or DN60/100 The following table indicates which accessories are required for the installation shown in Figure 5.6 C33 type installation → 38. table 5�5 – C33 type installation: roof mounted co-axial terminal Ref.
  • Page 39 Installation, user and maintenance manual – GAHP-GS/WS figure 5�7 – C43 type installation LeGend See table below Fumes/combustion air collective pipes The following table indicates which accessories are required for the installation shown in Figure5.7 C43 type installation → 39 table 5�6 –...
  • Page 40 figure 5�8 – C53 type installation LeGend See table below Roof mounted flue, wall mounted air intake The following table indicates which accessories are required for the installation shown in Figure 5.8 C53 type installation → 40 table 5�7 – C53 type installation: Roof mounted flue, wall mounted combustion air intake Ref.
  • Page 41 Installation, user and maintenance manual – GAHP-GS/WS figure 5�9 – C53 type installation LeGend See table below Double wall mounted exhaust The following table indicates which accessories are required for the installation shown in Figure 5.9 C53 type installation → 41 table 5�8 –...

  • Page 42: Programming Of Hydraulic Parameters

    5�8 PRoGRAMMInG of HYdRAULIC PARAMeteRs The operations described in this paragraph are necessary only if the appliance is not con- nected to a DDC or to a CCP. If the appliance is connected to a CCP/DDC, follow the instructions given in the CCP/DDC manuals exclusively.

  • Page 43: Safety Valve Discharge Routing

    Installation, user and maintenance manual – GAHP-GS/WS • The appliance switches off: the water in the plant, returning from use, becomes progressively cooler, until it reaches a temperature of 38°C = 40°C - 2°. • The appliance switches on again, and the plant water heats up again.
  • Page 44 You will need: the appliance in its permanent location. → 15). Remove the plastic cap on the top panel (detail Q of Figure 3.1 Size Connect a carbon steel pipe to the Q outlet, which must have an initial straight tract of at least 30 cm.

  • Page 45: Electrical Installation

    Installation that is incorrect or that does not comply with current legislation may cause damage to people, animals or things; Robur S.p.A. is not responsible for any damage caused by installation that is incorrect or that does not comply with current legislation.
  • Page 46 figure 6�1 – Electronic board S61 LeGend See table below SCH S61 table 6�1 – S61 electronic controller + Mod10 legend CODE DESCRIPTION SCH1 Electronic board S61 SCH3 Mod10 electronic controller (see figure for further details) A1, A2 Auxiliary inputs Knob Fuse T 2A Fuse F 10A...
  • Page 47 Installation, user and maintenance manual – GAHP-GS/WS CODE DESCRIPTION Generator temperature probe input THMF Cold water delivery temperature probe input THRF Cold water return temperature probe input Generator limit thermostat input figure 6�2 – Mod10 controller LeGend HFLOW Not used...
  • Page 48 figure 6�4 – Comfort Control Panel e Accessory LeGend Optional components to predict Comfort Control Panel QAA55 Base room unit Components componing the CCP QAA75 Room unit AVS37 Comfort Control Siemens QAA78 Radio room unit RVS61 System controller and set-point ASV71 Antenna Comfort Control Interface...

  • Page 49: Electrical Diagram Of The Appliance

    Installation, user and maintenance manual – GAHP-GS/WS 6�1 eLeCtRICAL dIAGRAM of tHe APPLIAnCe figure 6�5 – Appliance internal wiring diagram...

  • Page 50: How To Connect The Appliance Electrically

    6�2 HoW to ConneCt tHe APPLIAnCe eLeCtRICALLY Before making electrical connections, make sure not to work on live elements. You will need: the appliance in its permanent location. Use a cable type FG7(O)R 3Gx1.5 for the power supply to the appliance. Connect power supply with the cable indicated at point 1, fitting close to the appli- ance a two-pole isolator switch with 3 mm distance between contacts (see detail «GS»...
  • Page 51 Installation, user and maintenance manual – GAHP-GS/WS The CAN bus network is characterized by a series of elements (appliances or CCPs) called nodes, connected to each other by a three-wire cable. The nodes are of two types: termi- nal nodes and intermediate nodes.
  • Page 52 6.2 CAN BUS cables type → 51 and cut the remaining ones. The ROBUR NETBUS cable is available as an accessory, see Section 8 ACCESSORIES → 81. How to connect the CAn BUs cable to the appliance's electronic board The CAN BUS cable must be connected to the dedicated terminals on the appliance’s...
  • Page 53 Installation, user and maintenance manual – GAHP-GS/WS Fix the CAN BUS cable (or two cables, according to the type of node being con- nected) to the holding bracket in the upper part of the electrical panel so that the pulled-back shielding is in solid touch with the metal bracket. The cables must be firmly held in place by the bracket if pulled.
  • Page 54 → 55. The CCI is equipped with a backup battery which retains the memory settings in case of power failure. the backup battery lasts approximately 7 years, after which time it must be replaced by an authorised Robur Technical Assistance Centre.
  • Page 55 Installation, user and maintenance manual – GAHP-GS/WS figure 6�10 – Connection from CAN BUS to connector P8 LeGend Insulating tape to protect board/shield CAN BUS cable wires   CAN bus cable shield terminal and screw for fixing  ...
  • Page 56 figure 6�12 – Connection of CCI to 1 appliance LeGend Comfort Control Interface S61 controller Connection of CCI to 1 appliance...
  • Page 57 Installation, user and maintenance manual – GAHP-GS/WS figure 6�13 – Connection of CCI to 3 appliances LeGend Comfort Control Interface S61 controller Connection of CCI to 3 appliances How to connect the Comfort Control Panel You will need: the appliance disconnected from the electricity supply...
  • Page 58 To optimise the operation of the appliance install, on the primary circuit, variable rate WILO STRATOS PARA pumps (see Section 8 ACCESSORIES → 81), which are controlled and modulated with the Robur Mod10 controller. No other models pump are supported.
  • Page 59 Installation, user and maintenance manual – GAHP-GS/WS figure 6�14 – Wiring diagram for connection of Wilo variable rate pumps LeGend Two-position pump power switch Fuse Hot side water circulation pump (primary circuit) Cold side water circulation pump Pump signal 0-10V wire colours...

  • Page 60: Type B (Ddc)

    figure 6�15 – Wiring diagram for hooking up the Wilo variable rate pump powered by the unit LeGend Hot side water circulation pump (primary circuit) Cold side water circulation pump Unit terminal block Pump signal 0-10V wire colours brown connect to -ve white connect to +ve black isolate blue isolate...
  • Page 61 6.2 CAN BUS cables type → 51 and cut the remaining ones. The ROBUR NETBUS cable is available as an accessory, see Section 8 ACCESSORIES → 81. How to connect the CAn BUs cable to the appliance's electronic board The CAN BUS cable must be connected to the dedicated terminals on the appliance’s...
  • Page 62 If the appliance is an intermediate node repeat the operations from step 2 to step 5 for the other cables required (in this way you will have two cable lengths each one without the jacket on one end). Twist together the cores with the same color and connect them to the orange connector, as shown in detail "B"...
  • Page 63 Installation, user and maintenance manual – GAHP-GS/WS Roll the shielding and connect it to a 4-mm eyelet terminal, as illustrated in Figure 6.10 Connection from CAN BUS to connector P8 → 55, details C and D. Now pro- ceed as follows:...
  • Page 64 The DDC is equipped with a backup battery which retains the memory settings in case of power failure. the backup battery lasts approximately 7 years, after which time it must be replaced by an authorised Robur Technical Assistance Centre. figure 6�17 – CCI/DDC - electric supply...
  • Page 65 Installation, user and maintenance manual – GAHP-GS/WS figure 6�18 – Connexion câble CAN BUS for plants with one unit LeGend direct digital control electronic board S61 Jumper CAN-BUS in board S61 Jumper CAN-BUS in board DDC terminal nodes connection - (3 wires; J1 e J21 = "closed") H,L,GND data signal wires (rif.
  • Page 66 figure 6�19 – Connexion câble CAN BUS for plants with more unit Connexion câble CAN BUS between one DDC and more unit How to connect the system water circulation pumps Control of the plant water circulation pump from the appliance’s controller depends on the power rating of the pump itself.
  • Page 67 Installation, user and maintenance manual – GAHP-GS/WS • Direct control from the controller with power absorbed by the pump less than 700 W. If the power absorbed by the pump is less than 700 W, make the connection as shown in Figure 6.20 Electrical wiring diagram → 67 and check that the jumper J10 and J1 are CLOSED, as shown in detail A.
  • Page 68 figure 6�21 – Electrical wiring diagram LeGend electronic board SCH2 electronic board J1 - jumper open N.O. CONTACT clean exit normally open Unit terminal block phase neutral Components NOT SUPPLIED Hot side water pump ≥700W Cold side water pump ≥700W Hot side pump control relay Cold side pump control relay Connection of plant water circulation pumps (power absorption equal or more than 700W), controlled directly by the appliance.
  • Page 69 Installation, user and maintenance manual – GAHP-GS/WS figure 6�22 – Electrical wiring diagram LeGend neutral electronic board Components NOT SUPPLIED SCH2 W10 electronic board Hot side water pump SCH3 MOD10 electronic board Cold side water pump J10 - jumper open Hot side pump control relay N.O.

  • Page 70: Type C (Consent Switch)

    the primary circulation pump/s must be controlled by the s61 board, or directly (via “n�o� contact” contacts or 0-10V signal) or indirectly (“oR” use of said contacts by BMs type external systems)� otherwise, the primary circulation pump/s must be running permanently� 6�5 tYPe C (Consent sWItCH) Before making the electrical connections, make sure that work is not carried out on live...

  • Page 71: How To Reset The Flame Controller From Remote

    Installation, user and maintenance manual – GAHP-GS/WS Variable flow pumps WILO STRATOS PARA can also be used (see Section 8 ACCESSO- RIES → 81). In this case, for the electrical wiring of the pumps, please refer to Figure 6.14 Wiring diagram for connection of Wilo variable rate pumps → 59 and the relevant paragraph.
  • Page 72 figure 6�24 – Button connection for flame controller reset...

  • Page 73: Initial Activation And Maintenance

    PRoCedURe foR fIRst stARt UP The entire procedure for the initial activation of the appliance must only carried out by an authorised Robur Technical Assistance Centre (TAC). The product's guarantee may be void if the procedure is not carried out by a Robur TAC.
  • Page 74 During the initial activation procedure, the combustion parameters must be checked and set ONLY by a Robur TAC. In this stage, NEITHER the user NOR the installation technician is authorised to perform such operations, and in so doing may invalidate the guarantee of the appliance.
  • Page 75 Installation, user and maintenance manual – GAHP-GS/WS The type of gas for which the appliance is set up can be identified from the adhesive label located on the unit’s internal gas pipe (detail M, Figure 7.2 Gas changeover → 80).
  • Page 76 Table 7.3 Gas nozzles and content of CO2 → 79 at the "Content of CO with/Max modulation" line with tolerance of +0.2 -0.4. If you cannot calibrate the CO percentage after the second attempt, DO NOT acti- vate the appliance; contact Robur technical service at +39 035/888111.

  • Page 77: Maintenance

    The maintenance operations described in this paragraph must be performed exclusively by the serviceman in charge of the plant or by an authorized CAT Robur. Any operation that regards internal components of units of the appliance must be car- ried out by an authorized Robur Technical Assistance Centre (TAC), according to the in- structions supplied by the manufacturer.

  • Page 78: Change Of Gas Type

    7�3 CHAnGe of GAs tYPe This operation must be carried out exclusively by an authorised Robur Technical Assist- ance Centre (TAC). If the appliance is to be used with a type of gas other than that indicated on the the adhe- sive label located on the unit's electric panel, switch off the appliance, shut off its power and gas supplies and proceed as follows (see Figure 7.2 Gas changeover →...
  • Page 79 Installation, user and maintenance manual – GAHP-GS/WS → 80) with those Replace the nozzle and o-ring B (see Figure 7.2 Gas changeover of the diameter suited to the new type of gas (see Table 7.3 Gas nozzles and con- tent of CO2 → 79). The nozzle code is stamped on the nozzle itself.
  • Page 80 figure 7�2 – Gas changeover LeGend Gas valve O-ring O-ring Gas nozzle Mounting holes Red silicon hose Mounting holes Manual reset fumes thermostat Fumes outlet Gas changeover...

  • Page 81: Accessories

    Installation, user and maintenance manual – GAHP-GS/WS ACCessoRIes This section contains a list of the accessories that are available for the installation and use of the appliance. To order these accessories, contact Robur S.p.A. on +39 035.888111. table 8�1 – Accessories ACCessoRIes...

  • Page 82: Operating Codes/Troubleshooting

    oPeRAtInG Codes/tRoUBLesHootInG 9�1 oVeRVIeW And oPeRAtInG Codes/tRoUBLesHootInG table 9�1 – TABLE OF OPERATING CODES generated by the S61 electronic board (firmware version 3.024) CODES DESCRIPTION TRIP CONDITIONS RESET METHOD FAULT ON RESET CIRCUIT OF FLAME E 200 Fault on reset circuit of flame control unit. Contact authorised Technical Assistance.
  • Page 83 Installation, user and maintenance manual – GAHP-GS/WS CODES DESCRIPTION TRIP CONDITIONS RESET METHOD Reset occurs automatically 20 minutes after the operating code is u 236 BLOWER FAULT Blower fault generated. Reset may be performed from the CCI/DDC (or from the S61 board...

  • Page 85: Declaration Of Conformity

    Address : Via Parigi 4/6 City, Country : Verdellino/Zingonia 24040 (Bg), Italy This is to declare that the ROBUR Gas Absortion Heat Pump (GAHP) are in conformity with the following EC- Directives: Machinery Directive 2006/42/EC with subsequent amendments and integrations.
  • Page 86 Refrigeratore d’acqua a gas ad Assorbimento prodotto da ROBUR S.p.A., serie GA: ACF60-00 (standard e versioni speciali); delle Pompe di Calore a gas ad Assorbimento prodotte da ROBUR S.p.A., serie GAHP: GS, WS, A, AR (standard e versioni speciali); serie GAS HP: G, W, A (standard e versioni speciali);...
  • Page 87 à Absorption à gaz fabriquées par la Société ROBUR S.p.A., série GA: ACF60-00 (standard et versions spéciales); des Pompes à Chaleur à Absorption à gaz fabriquées par la société ROBUR S.p.A., série GAHP: GS, WS, A, AR (standard et versions spéciales); série GAS HP: G, W, A (standard et versions spéciales);...
  • Page 88 (Standard y versiones especiales); de las bombas de calor por ciclo de absorción con gas fabricadas por la Empresa ROBUR S.p.A., serie GAHP: GS, WS, A, AR (Standard y versiones especiales); serie GAS HP: G, W, A (Standard y versiones especiales);...
  • Page 89 Installation, user and maintenance manual – GAHP-GS/WS...
  • Page 90 Robur is dedicated to dynamic progression in research, development and promotion of safe, environmentally-friendly, energy-efficiency products, through the commitment and caring of its employees and partners. Robur Mission Robur Spa tecnologie avanzate per la climatizzazione Via Parigi 4/6 24040 Verdellino/Zingonia (Bg) Italy...
