Summary of Contents for ESC H67H2-M2

  • Page 1 Preface Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.0C Disclaimer The information in this document is subject to change without notice.
  • Page 2: Declaration Of Conformity

    Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interfer- ence that may cause undesired operation. Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference- causing Equipment Regulations.
  • Page 3: Table Of Contents

    T T T T T ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS Preface Chapter 1 Introducing the Motherboard Introduction...................1 Feature....................2 Specifications................4 Motherboard Components............6 Chapter 2 Installing the Motherboard Safety Precautions................9 Choosing a Computer Case.............9 Installing the Motherboard in a Case..........9 Checking Jumper Settings.............10 Setting Jumpers..............10...
  • Page 4 Security Menu.................57 Exit Menu................60 Updating the BIOS..............61 Chapter 4 Using the Motherboard Software Auto-installing under Windows XP/7/8........63 ..Running Setup..............63 Manual Installation................65 ECS Utility Software ...............65 Chapter 5 Trouble Shooting Start up problems during assembly..........67 Start up problems after prolong use..........68 Maintenance and care tips..............68 Basic Troubleshooting Flowchart...........69...
  • Page 5: Introducing The Motherboard

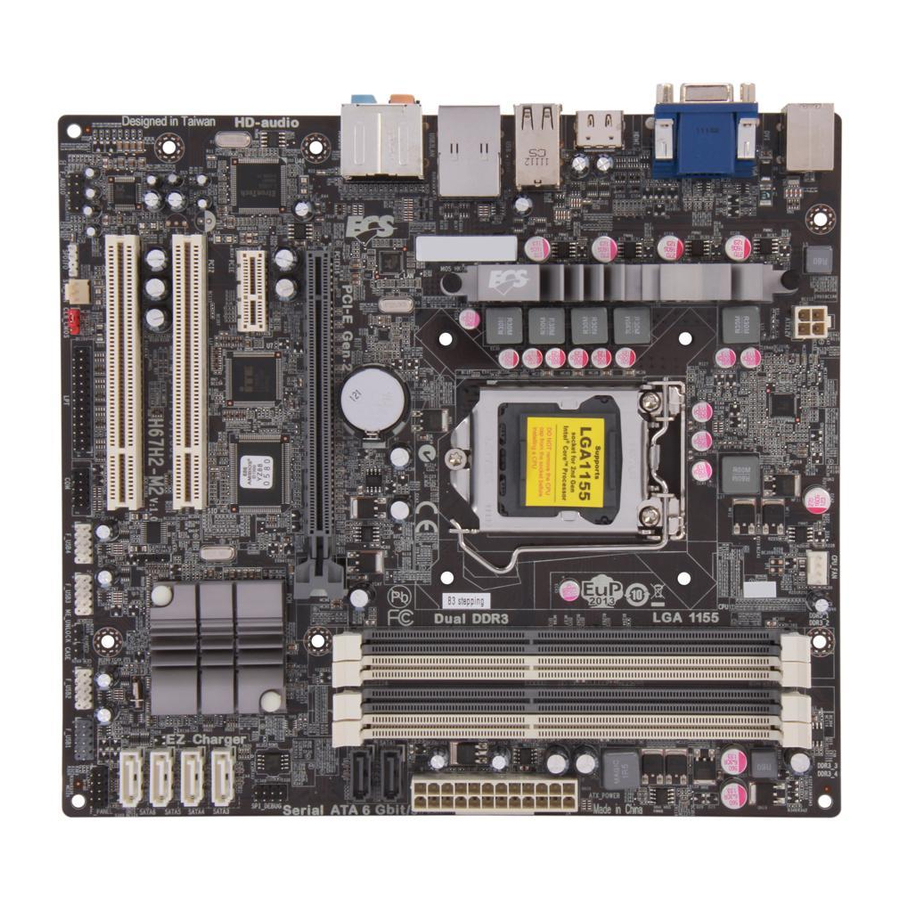

    Chapter 1 Introducing the Motherboard Introduction Thank you for choosing H67H2-M2 motherboard. This motherboard is a high performance, enhanced-function motherboard designed to support the LGA1155 ® ® ® socket for new 2nd & 3rd Generation Intel Core Family/ Pentium / Celeron processors* .
  • Page 6: Feature

    Feature Processor The motherboard uses an LGA1155 type of socket that carries the following features: ® • Accommodates LGA1155 socket for new 2nd & 3rd Generation Intel ® ® Core Family/ Pentium / Celeron processors • Supports “Hyper-Threading” technology CPU •...
  • Page 7: Onboard Lan

    • Content Protection for Full Rate loss-less DVD Audio, Blue-Ray DVD and HD-DVD audio content playback (with selected versions of Win-DVD/PowerDVD/TMT) • Direct Sound 3D. compatible Onboard LAN • Supports PCI Express • Integrated 10/100/1000 transceiver • Wake-on-LAN and remote wake-up support •...
  • Page 8: Specifications

    Specifications ® • LGA1155 socket for new 2nd & 3rd Generation Intel Core ® ® Family/ Pentium / Celeron processors • Supports “Hyper-Threading” technology CPU • DMI 5.0 GT/S Chipset ® • Intel H67 Express Chipset Memory • Dual-channel DDR3 memory architecture •...
  • Page 9 System BIOS • AMI BIOS with 32 Mb SPI Flash ROM • Supports Plug and Play, STR (S3)/STD (S4), Hardware moni- tor, Multi Boot • Supports ACPI & DMI • Audio, LAN, can be disabled in BIOS • F7 hot key for boot up devices option •...
  • Page 10: Motherboard Components

    Motherboard Components Introducing the Motherboard...
  • Page 11 Table of Motherboard Components LABEL COMPONENTS ® LGA1155 socket for new 2nd & 3rd Generation Intel Core 1. CPU Socket ® ® Family/ Pentium /Celeron Processors 2. CPU_FAN CPU cooling fan connector 3. DDR3_1~4 240-pin DDR3 SDRAM slots 4. ATX_POWER Standard 24-pin ATX power connector 5.
  • Page 12 Memo Introducing the Motherboard...
  • Page 13: Installing The Motherboard

    Chapter 2 Installing the Motherboard Safety Precautions • Follow these safety precautions when installing the motherboard • Wear a grounding strap attached to a grounded device to avoid dam- age from static electricity • Discharge static electricity by touching the metal case of a safely grounded object before working on the motherboard •...
  • Page 14: Checking Jumper Settings

    Do not over-tighten the screws as this can stress the motherboard. Checking Jumper Settings This section explains how to set jumpers for correct configuration of the motherboard. Setting Jumpers Use the motherboard jumpers to set system configuration options. Jumpers with more than one pin are numbered.
  • Page 15: Checking Jumper Settings

    Checking Jumper Settings The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled. Jumper Settings Type Jumper Description Setting (default) 1-2: NORMAL 2-3: CLEAR CLR_CMOS 3-pin Clear CMOS Before clearing the CLR_CMOS CMOS, make sure to turn off the system.
  • Page 16: Installing Hardware

    Installing Hardware Installing the Processor Caution: When installing a CPU heatsink and cooling fan make sure that you DO NOT scratch the motherboard or any of the surface-mount resis- tors with the clip of the cooling fan. If the clip of the cooling fan scrapes across the motherboard, you may cause serious damage to the motherboard or its components.
  • Page 17: Cpu Installation Procedure

    CPU Installation Procedure The following illustration shows CPU installation components. A. Opening of the Load Plate · Put your thumb on the tail of the load plate and press the tail down. · Rotate the load plate to fully open position.
  • Page 18: Installing Memory Modules

    1. To achieve better airflow rates and heat dissipation, we suggest that you use a high quality fan with 3800 rpm at least. CPU fan and heatsink instal- lation procedures may vary with the type of CPU fan/heatsink supplied. The form and size of fan/heatsink may also vary.
  • Page 19: Installation Procedure

    1. For best performance and compatibility, we recommend that users give priority to the white DIMMs (DDR3_2/DDR3_4 when installing DIMMs. 2. We suggest users not mix memory type. It is recommended to use the same brand and type memory on this motherboard. Do not remove any memory module from its antistatic packaging until you are ready to install it on the motherboard.
  • Page 20: Expansion Slots

    Expansion Slots Installing Add-on Cards The slots on this motherboard are designed to hold expansion cards and connect them to the system bus. Expansion slots are a means of adding or enhancing the motherboard’s features and capabilities. With these efficient facilities, you can in- crease the motherboard’s capabilities by adding hardware that performs tasks that are not part of the basic system.
  • Page 21 Follow these instructions to install an add-on card: Remove a blanking plate from the system case corresponding to the slot you are going to use. Install the edge connector of the add-on card into the expansion slot. Ensure that the edge connector is correctly seated in the slot. Secure the metal bracket of the card to the system case with a screw.
  • Page 22: Connecting Optional Devices

    Connecting Optional Devices Refer to the following for information on connecting the motherboard’s optional devices: F_AUDIO: Front Panel Audio header This header allows the user to install auxiliary front-oriented microphone and line- out ports for easier access. Signal Name Signal Name PORT 1L AUD_GND PORT 1R...
  • Page 23 SATA3~6: Serial ATAII connectors These connectors are used to support the Serial ATA 3Gb/s devices, simpler disk drive cabling and easier PC assembly. It eliminates limitations of the current Parallel ATA interface. But maintains register compatibility and software compatibility with Par- allel ATA.
  • Page 24 CASE: Chassis Intrusion Detect Header This detects if the chassis cover has been removed. This function needs a chassis equipped with instrusion detection switch and needs to be enabled in BIOS. Pin 1-2 Function Short Chassis cover is removed Open Chassis cover is closed COM: Onboard serial port header Connect a serial port extension bracket to this header to add a serial port to your system.
  • Page 25 SPI_DEBUG: SPI Debug header This 16 MB DEBUG contains the programmable BIOS program. Signal Name Function CHIPSELECT Select chip DATA OUTPUT data output HOLD hold WRITE PROTECT BIOS write protect CLOCK clock Ground DATA INPUT data input SPDIFO: SPDIF out header This is an optional header that provides an SPDIFO (Sony/Philips Digital Interface) output to digital multimedia device through optical fiber or coaxial connector.
  • Page 26: Installing Sata Hard Drives

    Installing SATA Hard Drives This section describes how to install SATA devices such as a hard disk drive and a CD- ROM drive. About SATA Connectors Your motherboard features four SATA 3.0 Gb/s connectors and four SATA 6.0Gb/s connectors supporting a total of eight drives SATA refers to Serial ATA (Advanced Technology Attachment) is the standard interface for the SATA hard drives which are currently used in most PCs.
  • Page 27: Connecting I/O Devices

    Connecting I/O Devices The backplane of the motherboard has the following I/O ports: PS/2 Keyboard Port Use the upper PS/2 port to connect a PS/2 pointing device. PS/2 Mouse Port Use the lower PS/2 port to connect a PS/2 keyboard. VGA Port Connect the VGA port to the monitor.
  • Page 28: Connecting Case Components

    Connecting Case Components After you have installed the motherboard into a case, you can begin connecting the motherboard components. Refer to the following: Connect the CPU cooling fan cable to CPU_FAN. Connect the system cooling fan connector to SYS_FAN. Connect the case speaker cable to SPK. Connect the case switches and indicator LEDs to the F_PANEL.
  • Page 29 2. Connecting 4 power cable The ATX12V power connector is used to provide power to the CPU. When installing 4-pin power cable, the latches of power cable and the ATX12V match per- fectly. 4-pin power cable CPU_FAN: CPU cooling FAN Power Connector Signal Name Function System Ground...
  • Page 30 SPK: External Speaker header Signal Name Signal ATX12V: ATX 12V Power Connector Signal Name Ground Ground +12V +12V Installing the Motherboard...
  • Page 31: Front Panel Header

    Front Panel Header The panel header (PANEL) provides a standard set of switch and LED headers commonly found on ATX or Micro ATX cases. Refer to the table below for informa- tion: Signal Function Signal Function HD_LED_P Hard disk LED(+) 2 FP PWR/SLP *MSG LED(+) FP PWR/SLP *MSG LED(-) HD_LED_N Hard disk LED(- )
  • Page 32 Memo Installing the Motherboard...
  • Page 33: Using Bios

    Chapter 3 Using BIOS About the Setup Utility The computer uses the latest “American Megatrends Inc. ” BIOS with support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS. The BIOS (Basic Input and Output System) Setup Utility displays the system’s configuration status and provides you with options to set system parameters.
  • Page 34: Resetting The Default Cmos Values

    F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. Resetting the Default CMOS Values When powering on for the first time, the POST screen may show a “CMOS Settings Wrong” message. This standard message will appear following a clear CMOS data at factory by the manufacturer.
  • Page 35: Bios Navigation Key

    In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle The default BIOS setting for this motherboard apply for most conditions with optimum performance. We do not suggest users change the default values in the BIOS setup and take no responsibility to any damage caused by changing the BIOS settings.
  • Page 36: Main Menu

    +/- : Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. System Language (English) This item is used to set system language. System Date & Time The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.
  • Page 37: Advanced Menu

    Use this item to enable or disable UEFI network stack. Ipv4/6 PXE Support (Enabled) Use these items to enable Ipv4/6 PXE Boot Support. If disabled Ipv4/6 PXE, boot option will not be created. Press <Esc> to return to the Advanced Menu page. Using BIOS...
  • Page 38: Pc Health Status

    TCC Activation Temp. : -=- PECI Mode -=- ESC:Exit Offset to TCC Activation Temp : -27 Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. Smart Fan Function Scroll to this item and press <Enter> to view the following screen: Version 2.02.1205.
  • Page 39 CPU Fan Full Speed Offset(-) (23) This item is used to set the CPU fan full speed offset value. Press <Esc> to return to the PC Health Status page. System Component Characteristics These items display the monitoring of the overall inboard hardware health events, such as System temperature, CPU &...
  • Page 40: Power Management Setup

    EUP Support (Enabled) This item allows user to enable or disable EUP support. Power LED Type (Dual Color LED) This item allows user to enable or disable EUP support. Press <Esc> to return to the Advanced Menu page. Using BIOS...
  • Page 41: Acpi Configuration

    ESC:Exit Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. ACPI Sleep State (S3(Suspend to RAM)) This item allows user to enter the ACPI S3 (Suspend toRAM) Sleep State (default). Press <Esc> to return to the Advanced Menu page. Using BIOS...
  • Page 42: Cpu Configuration

    Enhanced Halt (C1E) [Enabled] F3:Optimized Defaults F4:Save & Exit ESC:Exit Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. Inter(R) Pentium(R) CPU G860 @ 3.00 GHz This is display-only field and diaplays the information of the CPU installed in your computer.
  • Page 43 Use this item to enable or disable CPU C6(ACPI C3) report to OS. Enhanced Halt (C1E) (Enabled) Use this item to enable the CPU energy-saving function when the system is not running. Press <Esc> to return to the Advanced Menu page. Using BIOS...
  • Page 44: Sata Configuration

    SATA Port1~6 This motherboard supports six SATA channel and each channel allows one SATA device to be installed. Use these items to configure each device on the SATA channel. Press <Esc> to return to the Advanced Menu page. Using BIOS...
  • Page 45: Usb Configuration

    Disabling it might cause the USB devices not to work properly. Legacy USB Support (Enabled) Use this item to enable or disable support for legacy USB devices. Press <Esc> to return to the Advanced Menu page. Using BIOS...
  • Page 46: Super Io Configuration

    This item allows you to enable or disable serial port. Device Settings (IO=3F8h; IRQ=4) This item shows the information of the device settings. Change Settings (Auto) Use this item to change device settings. Press <Esc> to return to the Super IO Configuration page. Using BIOS...
  • Page 47 Change Settings (Auto) Use this item to change device settings. Device Mode (Standard Parallel... ) This item allows you to select the device mode for a better operation environment. Press <Esc> to return to the Super IO Configuration page. Using BIOS...
  • Page 48: Intel Smart Connect Technology

    +/- : Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. ISCT Configuration (Enabled) Use this item to enable/disable ISCT Configuration. ISCT Notification Control (Enabled) Use this item to enable/disable ISCT Notification Control.
  • Page 49: Chipset Menu

    F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. System Agent Configuration Scroll to this item and press <Enter> and view the following screen. Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
  • Page 50 Press <Esc> to return to the chipset menu page. Multi-Monitor technology Multi-Monitor technology can help you to increase the area available for programs running on a single computer system through using multiple display devices. It is not only to increase larger screen viewing but aslo to improving personal productivity.
  • Page 51 Gfx. IGD Memory [64M] DVM Memory [256MB] IGD Multi-Monitor [Disabled] :Select Screen :Select Item Enter : Select +/- : Value F1:General Help F2:Previous Value F3:Optimized Defaults F4:Save & Exit ESC:Exit Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. Using BIOS...
  • Page 52 Step 4. Change the appearance of your displays under Windows 7/8. 1. Enter the Control Panel menu, select the Display in the All Control Panel Items and click the Screen Resolution, then appears the following screen. Show the path of the setting location Display devices Search Control Panel Control Panel...
  • Page 53 Search Control Panel Control Panel All Control Panel Items Display Screen Resolution Change the apprearance of your displays Detect Identify Display: 4. AL1717 Resolution: 1920 x 1200 (recommended) Orientation: Landscape Multiple displays: Disconnect this display You must select Apply before making additional changes. Make this my main display Advance settings Make text and other items larger or smaller...
  • Page 54 This item enables or disables the warning if the case is opened up, and the item below indicates the current status of the case. Chassis Opened (No) This item indicates whether the case has been opened. Press <Esc> to return to the chipset menu page. Using BIOS...
  • Page 55 F2:Previous Values F3:Optimized Defaults Azalia HD Audio F4:Save & Exit Disabled ESC:Exit Enabled Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. ME Version (8.1.0.1248) This item shows the ME version. Press <Esc> to return to the chipset menu page. Using BIOS...
  • Page 56: M.i.b.iii (Mb Intelligent Bios Iii) Menu

    Processor Speed 3000 MHz F3:Optimized Defaults Memory Frequency 1333 MHz F4:Save & Exit Total Memory 2048 MB (DDR3) ESC:Exit CPU Current Voltage 1.200V IMC Current Voltage 1.044V DIMM Current Voltage 1.524V Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. CPU OverClocking Configuration Scroll to this item to view the following screen: Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
  • Page 57 F2:Previous Values Four Active Window Delay (tFAW) F3:Optimized Defaults Intel Graphics Configuration F4:Save & Exit ESC:Exit Graphics Core Ratio Limit Graphics Voltage(1/256) Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. CAS Latency (tCL) (9) This item determines the operation of DDR SDRAM memory CAS (colulmn address strobe).
  • Page 58 Four Active Window Delay (tFAW) (20) This item controls the four bank activate time in memory clock cycles. Press <Esc> to return to the M.I.B III menu page. B.O.M.P Technology (Enabled) This item allows users to enable or disable B.O.M.P technology. This function can run safe setting to setup menu when system boot fail 3 times.
  • Page 59: Boot Menu

    USB Flash Drive Priorities [Press Enter] F3:Optimized Defaults Network Device Priorities [Press Enter] F4:Save & Exit ESC:Exit CSM parameters [Press Enter] Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. Boot Configuration This item shows the information of the Boot Configuration.
  • Page 60 This controls the execution of UEFI and Legacy Video OpROM. Other PCI device ROM priority For PCI devices other than Network, Mass storage or Video defines which OpROM to launch. Press <Esc> to return to the Boot Menu page. Using BIOS...
  • Page 61: Security Menu

    Image Execution Policy F2:Previous Values Key Management F3:Optimized Defaults F4:Save & Exit ESC:Exit Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. Administrator Password Status (Not Install) This item shows administrator password installed or not. User Password Status (Not Install) This item shows user password installed or not.
  • Page 62 Deny Execute) These items allow you to select image execution policy per device path on security violation. Only users logged with administrative password can exercise query user policy setting. Press <Esc> to return to the Security Menu page. Using BIOS...
  • Page 63 Delete the DBX F4:Save & Exit Append an entry to DBX ESC:Exit Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. Default Key Provisioning (Disabled) This item enables or disables you to force OEM default secure boot keys if system is in setup mode.
  • Page 64: Exit Menu

    Boot Override F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit Version 2.15.1229. Copyright (C) 2012, American Megatrends, Inc. Save Changes and Exit Use this item enables you to exit system setup after saving the changes. Discard Changes and Exit Use this item enables you to exit system setup without saving any changes.
  • Page 65: Updating The Bios

    Boot Override Use this item enables you to set the device order. Updating the BIOS You can download and install updated BIOS for this motherboard from the manufacturer’s Web site. New BIOS provides support for new peripherals, improve- ments in performance, or fixes for known bugs. Install new BIOS as follows: If your motherboard has a BIOS protection jumper, change the setting to allow BIOS flashing.
  • Page 66 Memo Using BIOS...
  • Page 67: Using The Motherboard Software

    Chapter 4 Using the Motherboard Software Auto-installing under Windows XP/7/8 The auto-install DVD-ROM makes it easy for you to install the drivers and software. The support software DVD-ROM disc loads automatically under Windows XP/7/8. When you insert the DVD-ROM disc in the DVD-ROM drive, the auto-run feature will automatically bring up the installation screen.
  • Page 68 Click Next. The following screen appears: Check the box next to the items you want to install. The default options are recommended. Click Next to run the Installation Wizard. An item installation screen appears: Follow the instructions on the screen to install the items. Drivers and software are automatically installed in sequence.
  • Page 69: Manual Installation

    Windows 7/8 will appear below UAC (User Account Control) message after the system restart. You must select “Yes” to install the next driver. Continue this process to complete the drivers installation. Manual Installation If the auto-install DVD-ROM does not work on your system, you can still install drivers through the file manager for your OS (for example, Windows Explorer).
  • Page 70 eSF(Smart Fan) utility provides easy and safe way to adjust fan speed in accordance with your PC’s system loading and temperature. It has five modes to adjust fan speed in a safe range without entering the BIOS to optimize your system cooling environment. Microsoft .NET Framework 3.5 is required.
  • Page 71: Trouble Shooting

    Chapter 5 Trouble Shooting Start up problems during assembly After assembling the PC for the first time you may experience some start up problems. Before calling for technical support or returning for warranty, this chapter may help to address some of the common questions using some basic troubleshooting tips.
  • Page 72: Start Up Problems After Prolong Use

    2. From the BIOS setting, try to disable the Smartfan function to let the fan run at default speed. Doing a Load Optimised Default will also disable the Smartfan. Start up problems after prolong use After a prolong period of use your PC may experience start up problems again. This may be caused by breakdown of devices connected to the motherboard such as HDD, CPU fan, etc.
  • Page 74 Memo Trouble Shooting...
