Argo AEI826SH Technical Data & Service Manual

Split system air conditioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

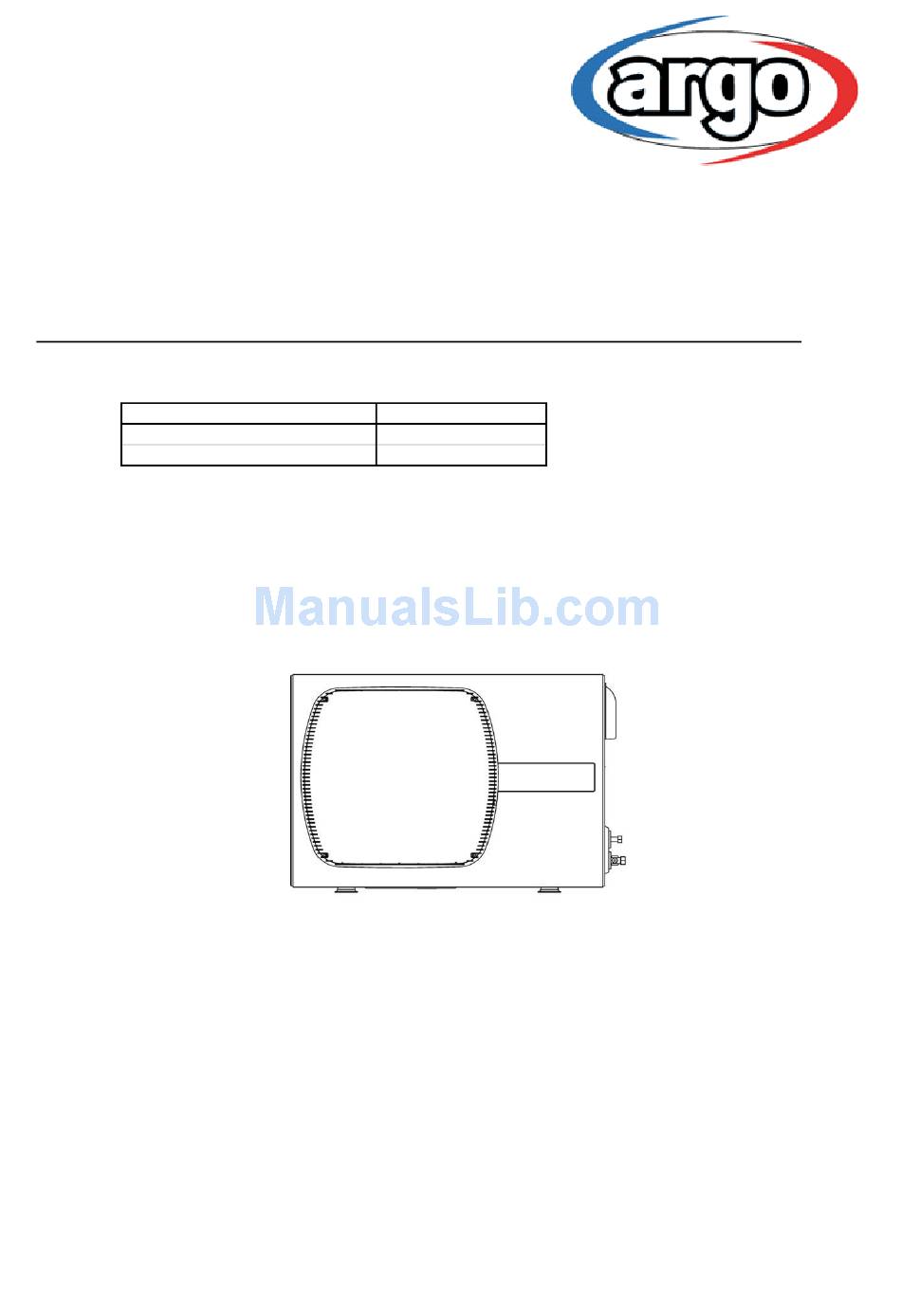

TECHNICAL DATA
& SERVICE MANUAL
OUTDOOR UNIT:
SPLIT SYSTEM AIR CONDITIONER
AEI826SH
AEI835SH
AEI826SH
AEI835SH
Model No.
0.8180.564.00
Product Code No.
387007198
387007199
10/2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AEI826SH and is the answer not in the manual?

Questions and answers

Related Manuals for Argo AEI826SH

Summary of Contents for Argo AEI826SH

  • Page 1 TECHNICAL DATA & SERVICE MANUAL OUTDOOR UNIT: AEI826SH AEI835SH SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. AEI826SH 387007198 AEI835SH 387007199 0.8180.564.00 10/2008...
  • Page 2 • Ground the unit following local electrical codes. IMPORTANT! • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.

  • Page 3: Table Of Contents

    Table of Contents Page 1. OPERATING RANGE 2. SPECIFICATIONS 2-1 Unit Specifications 2-2 Major Component Specifications 2-3 Other Component Specifications 3. DIMENSIONAL DATA 4. REFRIGERANT FLOW DIAGRAM 5. PERFORMANCE DATA 5-1 Performance Charts 6. ELECTRICAL DATA 6-1 Electrical Characteristics 6-2 Electric Wiring Diagram 6-3 System Wiring Diagram...

  • Page 4: Operating Range

    1. OPERATING RANGE AEI826SH AEI835SH Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 43°C D.B. Cooling Minimum 10°C D.B. / 6°C W.B. -15°C D.B. Maximum 27°C D.B. 24°C D.B. / 18°C W.B. Heating Minimum 5°C D.B.

  • Page 5: Specifications

    2. SPECIFICATIONS 2-1 Unit Specifications AEI826SH 220 - 240 V ~ 50 Hz Power source 230 V Voltage rating Cooling Heating Performance * AWI8826HL(B) 2,90 3,30 Capacity BTU/h 9895 11260 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating...
  • Page 6 AEI835SH 220 - 240 V ~ 50 Hz Power source 230 V Voltage rating Cooling Heating Performance * AWI8835HL(B) 3,50 3,90 Capacity BTU/h 11942 13307 Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating Electrical Rating 198 ~ 264 Available voltage range 4,40 4,30...

  • Page 7: Major Component Specifications

    2-2 Major Component Specifications AEI826SH Compressor Rotary (Hermetic) DC inverter Type G4C090LUCJR Compressor model Nominal input (compressor rating condition) RB68EP …… 320 Compressor oil…Amount Ω Coil resistance (Ambient temp. 20°C) 0,77 Software Protection Overload relay Safety devices Type Operating Temp. Open °C...
  • Page 8 AEI835SH Compressor Rotary (Hermetic) DC inverter Type 5RS102XBE01 Compressor model Nominal input (compressor rating condition) RB68A …… 320 Compressor oil…Amount Ω Coil resistance (Ambient temp. 20°C) 0,858 Software Protection Overload relay Safety devices Type Operating Temp. Open °C Close °C Fan &...

  • Page 9: Other Component Specifications

    2-3 Other Component Specifications AEI826SH AEI835SH SQ-136 (Coil) SHF-4H-23U (Valve) 4-way Valve (20S) AC 220/240 V, 50 Hz Coil rating Ω (at 20°C) 1440 ± 5% Coil resistance ZCAM-MD12EX(Coil) ZCAM-BD15EX (Valve) Electronic Expansion Valve DC 12 V Coil rating Ω (at 20°C) 46 ±...

  • Page 10: Dimensional Data

    3. DIMENSIONAL DATA AEI826SH AEI835SH 4 - Ø12 for anchor bolt WIDE TUBE ø.9,52 NARROW TUBE ø.6,35 dimension [mm]...

  • Page 11: Refrigerant Flow Diagram

    4. REFRIGERANT FLOW DIAGRAM Outdoor Unit: AEI826SH Indoor Unit: AWI8826HL(B) AEI835SH AWI8835HL(B) Outdoor Unit Indoor Unit Insulation of Refrigerant Tubing IMPORTANT Because capillary tubing is used in the outdoor unit, both the wide and narrow tubes of this air conditioner become cold. To prevent heat loss and wet floors due to dripping of condensation, both tubes must be well insulated with a proper insulation material.

  • Page 12: Performance Data

    5. PERFORMANCE DATA 5-1 Performance charts AEI826SH Cooling Characteristics Heating Characteristics Indoor inlet air D.B. (°C) Indoor inlet air D.B. (°C) D.B. Outdoor inlet air temperature (°C) Outdoor inlet D.B. temperature (°C) 1,00 2,90 0,95 Indoor inlet air Indoor inlet air D.B.
  • Page 13 AEI835SH Cooling Characteristics Heating Characteristics Indoor inlet air Indoor inlet air D.B. (°C) D.B. (°C) D.B. Outdoor inlet air temperature (°C) Outdoor inlet D.B. temperature (°C) 3,60 1,10 Indoor inlet air 3,40 D.B. (°C) Indoor inlet air 1,00 D.B. (°C) 3,20 0,90 3,00...

  • Page 14: Electrical Data

    6. ELECTRICAL DATA 6-1 Electrical characteristics OUTDOOR UNIT: AEI826SH COOLING Outdoor unit Indoor Unit Complete Unit Fan Motor + Compressor Fan Motor 230 V - 1 Phase - 50 Hz Performance at 2,87 Rating conditions Running Amps. 0,13 Power input...
  • Page 15 OUTDOOR UNIT: AEI835SH COOLING Outdoor unit Indoor Unit Complete Unit Fan Motor + Compressor Fan Motor 230 V - 1 Phase - 50 Hz Performance at 4,27 Rating conditions Running Amps. 0,13 Power input 0,031 0,919 0,950 Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B. Outdoor Air Temperature 35°C D.B.

  • Page 16: Electric Wiring Diagram

    6-2 Electric Wiring Diagram 6-3 System Wiring Diagram INDOOR UNIT POWER SUPPLY...
  • Page 17 OUTDOOR UNIT POWER SUPPLY INDOOR + OUTDOOR UNIT POWER SUPPLY...
  • Page 18 0.8180.564.00 10/2008 Tel. +39 0331 755111 - Fax +39 0331 776240 www.argoclima.it...
