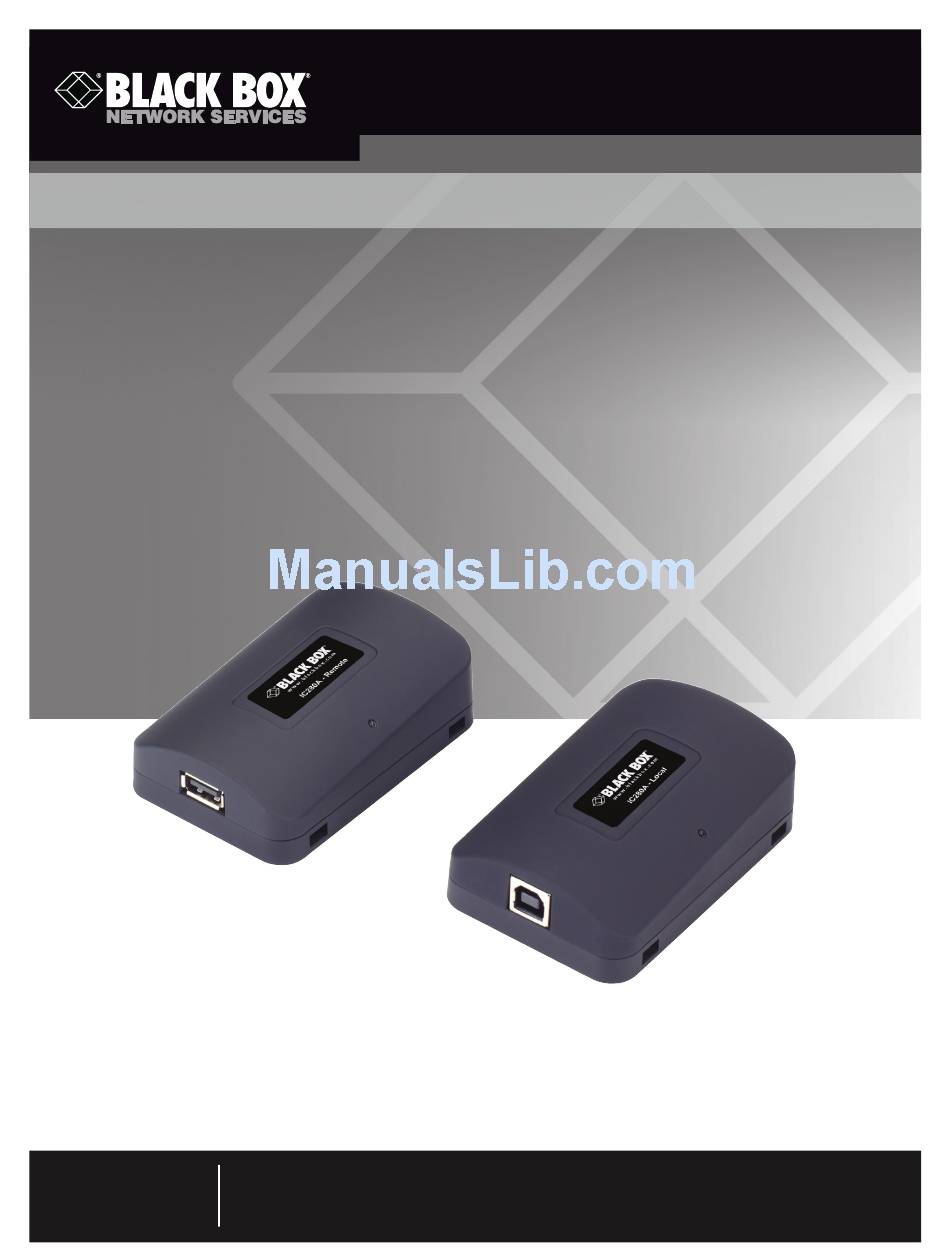

USB 2.0 CAT5 Extender
Transmit USB 2.0 device signals up to 328 feet
(100 m) over CAT5 cable, and power the extender
locally or remotely.
Customer
Support
Information
IC280A
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
BLACK BOX
IC280A
®
Advertisement
Table of Contents
Related Manuals for Black Box IC280A
Summary of Contents for Black Box IC280A
-
Page 1: Black Box
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Support Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Information Web site: www.blackbox.com • E-mail: info@blackbox.com IC280A... - Page 2 Trademarks Used in this Manual/FCC and IC RFI Statement Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. Mac OS X is a registered trademark of Apple Computer, Inc. Windows is a registered trademark of Microsoft Corporation.
-
Page 3: Instrucciones De Seguridad
Objectos han caído o líquido ha sido derramado dentro del aparato; o El aparato ha sido expuesto a la lluvia; o D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o El aparato ha sido tirado o su cubierta ha sido dañada. IC280A Page 3... -
Page 4: Table Of Contents
3.7 Checking the Installation ............................11 3.8 Connecting a USB Device ............................11 3.9 Compatibility ................................12 Troubleshooting ................................. 13 4.1 Problems/Solutions ..............................13 4.2 Contacting Black Box ..............................14 4.3 Shipping and Packaging ............................. 14 Technical Glossary ................................15 724-746-5500 | blackbox.com IC280A... -
Page 5: Specifications
Power — Input: 100-/240-VAC, 50–60 Hz, 600 mA maximum; Output: 24 VDC, 1 A; AC adapter connector: 2.1-mm center-positive jack Size — Each unit (local or remote): 1.1"H x 3.35"W x 2.25"D (2.8 x 8.5 x 5.7 cm) IC280A Page 5... -
Page 6: Overview
• Transmitter and receiver units featuring mounting slots on their sides. 2.3 What’s Included Your package should include the following items. If anything is missing or damaged, contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. • (1) Local Extender Unit •... -
Page 7: Hardware Description
The local extender connects to the host computer using the supplied USB A–B cable. Figure 2-1. Top panel of the local extender. Figure 2-2. Left side panel of the local extender. Figure 2-3. Right side panel of the local extender. IC280A Page 7... -
Page 8: Remote Extender Unit
The remote extender provides two downstream Type A ports for standard USB devices. Additional devices may be connected via USB hubs. Figure 2-4. Top panel of the remote extender. Figure 2-5. Left side panel of the remote extender. Figure 2-6. Right side panel of the remote extender. 724-746-5500 | blackbox.com IC280A Page 8... -
Page 9: Typical Application
Figure 2-7 shows a typical installation of the extender. USB over 328 feet (100 m) of CAT5 (or better) cabling Receiver Transmitter USB devices Figure 2-7. Sample installation. NOTE: The power supply can be connected at either the local or remote location, but not both. IC280A Page 9... -
Page 10: Installation
3.3 Installing the Local Extender Unit 1. Place the local extender near the host computer. 2. Plug the supplied USB cable into the local extender and into an available USB port on the computer. 724-746-5500 | blackbox.com IC280A Page 10... -
Page 11: Installing The Remote Extender Unit
Connect the included 24-VDC, 1-A power adapter to the local OR remote extender, based on your installation requirements. CAUTION: Use only the AC adapter supplied with the IC280A. Using a different adapter may cause permanent damage to the system and will void the warranty. -
Page 12: Compatibility
3.9 Compatibility The extender complies with USB 1.1 and USB 2.0 specifications governing the design of USB devices. However, Black Box does not guarantee that all USB devices are compatible with the extender, as there are a number of different factors that may impact the operation of USB devices over extended distances. -
Page 13: Troubleshooting
Table 4-1 provides troubleshooting tips. The solutions are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. -
Page 14: Contacting Black Box
If you determine that your USB 2.0 CAT5 Extender is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box Technical Support at 724-746-5500 or info@blackbox.com. Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description, including: •... -
Page 15: Technical Glossary
Table 5-2. T568A wiring. Pair Wire Cable Color Pair Wire Cable Color White/Orange White/Green Orange Green White/Green White/Orange Blue Blue White/Blue White/Blue Green Orange White/Brown White/Brown Brown Brown Figure 5-2. T568A connector pinout. Figure 5-3. T568B connector pinout. IC280A Page 15... - Page 16 About Black Box Black Box provides an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
