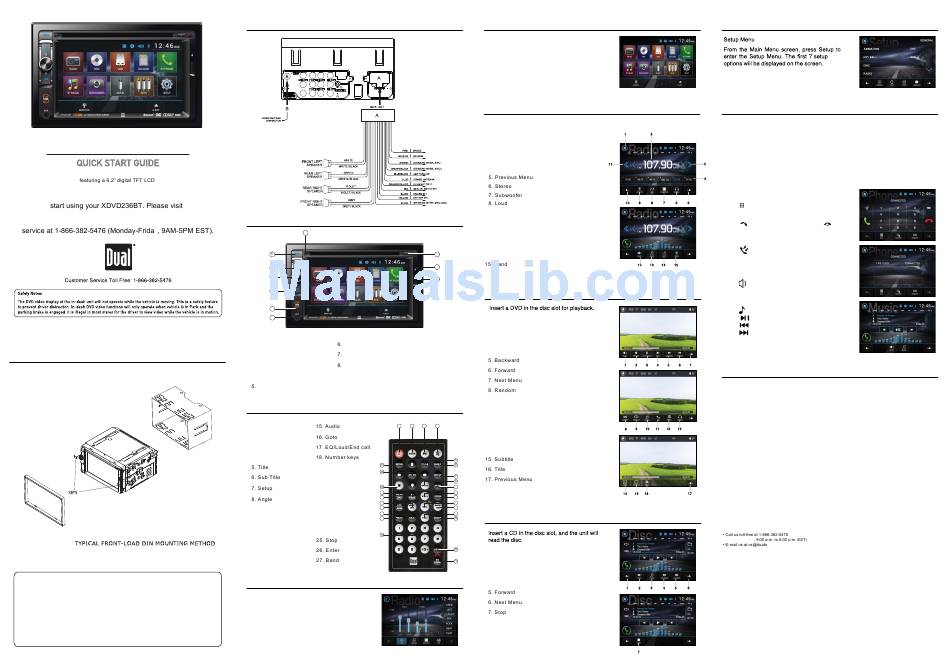

XDVD236BT

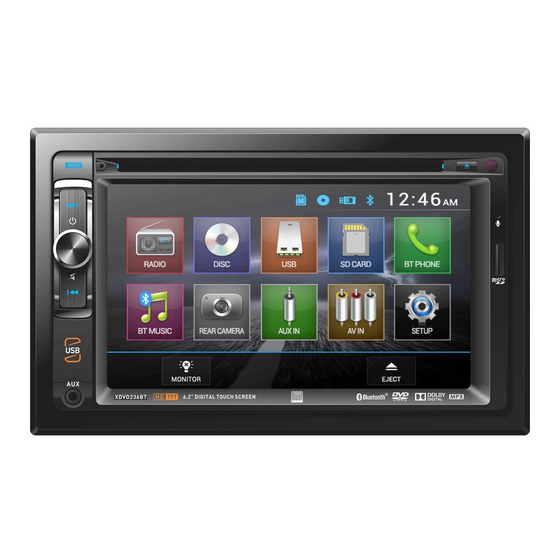

Multimedia DVD Receiver with Bluetooth
This Quick Start Guide gives you the basics to
www.dualav.com/support/manuals.php
to download a complete owner's manual or call customer
y
Installation
Copyright and Trademark Notes
This product incorporates copyright protection technology that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited. Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. DVD Logo is a
trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan and other countries.
SD Logo is a trademark of SD-3C, LLC. iPod and iPhone are trademarks of Apple Inc., registered in the U.S.
and other countries. Dual Electronics Corporation is not affiliated with Apple, Inc. Other trademarks and
trade names are those of their respective owners.
Wiring Diagram - Inputs/Outputs
Control Locations
4
9
10
1. microSD Card
Tune/Track Up
2. Mic
Power/Volume/Mute
3. Eject - Press to eject disc
Tune/Track Down
4. Reset
9. USB Slot
Mode
10. AV Input
Remote Control
1. Power
1
2
3
2. Mode
3. Play/Pause
4. Mute
19. Root
20. OSD
(On Screen Display)
21. Local/Random
24
23
22. Seek Down/
22
21
9. Slow
Prevous Track
20
10. Volume UP
23. AS/PS/Repeat
19
11. Zoom
24. Stereo/Program
12. Select/Talk
13. Seek UP/Next Track
14. Volume Down
Audio Control
Tap VOL to select between Volume, Bass, Treble,
Balance and Fader. You can adjust the level for
each audio option by turning the rotary left and
right.
Main Menu
In the Menu mode, press the desired icon
to enter the corresponding mode: Tuner, Disc,
USB, SD Card, BT Phone, BT Music,
Rear Camera, Aux In, AV In, Setup.
Tuner Operation
Select the Tuner icon from the Main Menu screen or press MODE unit Tuner
is selected.
1. Current Mode Indicator
2. Information Display
3. Tune Up
4. Preset Station Display
9. Local/Dx
10. Next Menu
11. Tune Down
12. Mute
13. Audio
3
14. As/Ps
2
1
DVD Operations
1. Mute
2. Previous
3. Play/Pause
4. Next Track
9. Circulate
10. Audio
11. Dial
4
12. Menu
13. Stereo
14. Goto
9
10
11
12
13
14
CD Operations
1. Previous Menu
2. Mute
3. Audio
4. Backward
General Operation
Bluetooth Operation
Bluetooth Microphone
The microphone is built-in to the receiver.
Pairing and Connecting
Before you can use a Bluetooth device, it must be paired and connected. The
Multi Media broadcasts the pairing signal constantly when no devices are
currently connected. Complete the pairing sequence from your Bluetooth device.
The device name is "Dual BT". The Bluetooth passcode "0000". Once pairing is
complete, most Bluetooth will connect automatically if the device is in range
when the unit is powered-on.
Dialing a Number
Press
to display keypad and dial a number.
Making and Ending a Call
Press
to connect a call, and press
to
end a call.
Accessing Recent Call List
Press
to access the recent call list and
view/select numbers from recent Received,
Dialed or Missed calls.
Transfering Audio
Press
to transfer audio between the head unit
and mobile phone.
Streaming Audio
Press
to enter the music control menu.
Press
to play or pause the music.
Press
to skip to the previous track.
Press
to advance to the next track.
