Summary of Contents for myappliances ART29101

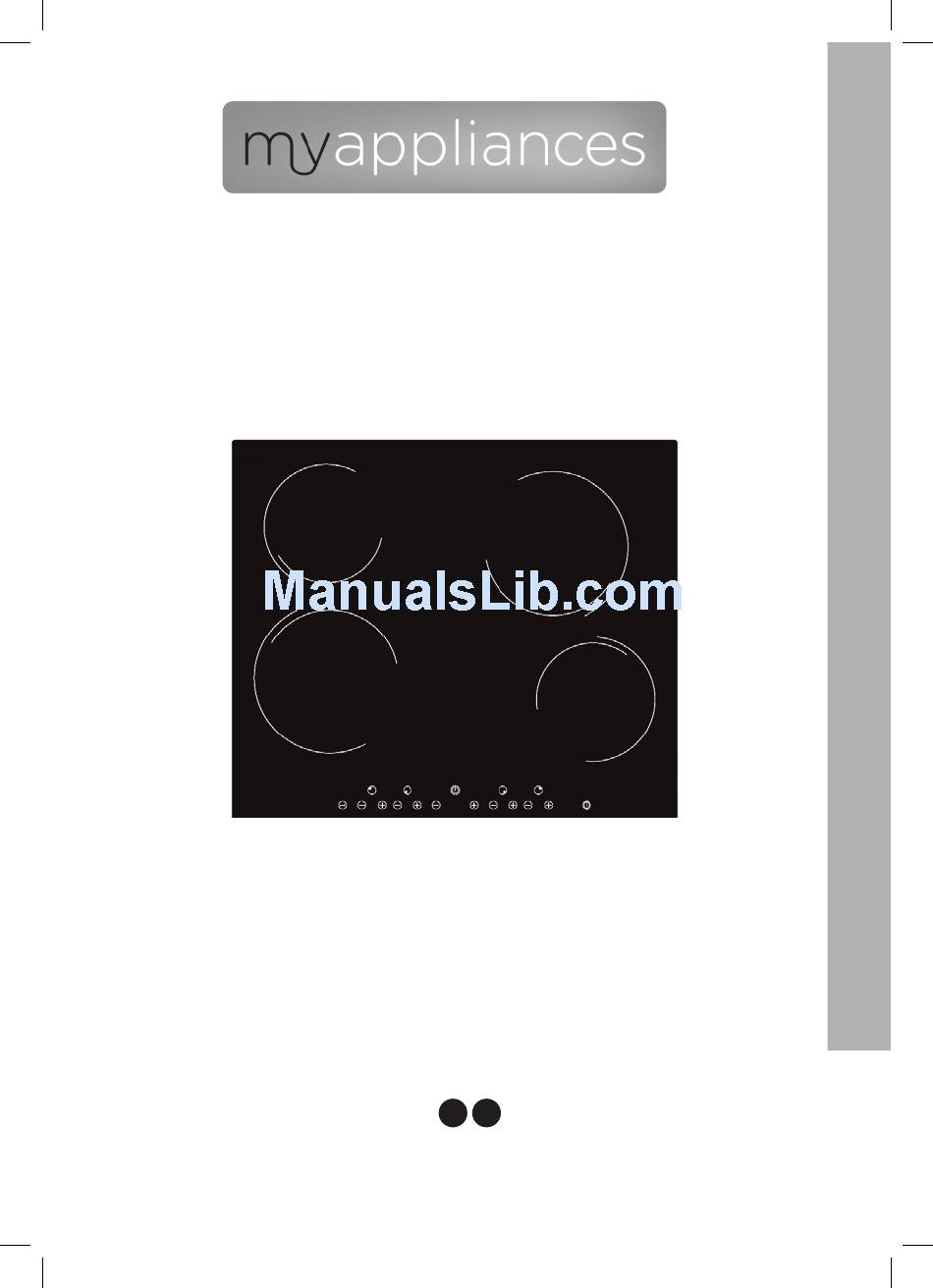

- Page 1 USER HANDBOOK Touch Control Ceramic Hob ART29101...
- Page 2 [01] x 1 [04] x 4 [02] x 4 [05] x 1...
- Page 3 ART29101 60 cm Touch Control Ceramic Hob Table de cuisson céramique 60 cm Installation Installation...
-
Page 4: Table Of Contents
Let's get started... started... Getting Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity Appendix Installation... -
Page 5: Getting Started
Getting Started... Before you start Safety... - Page 6 Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners.
- Page 7 Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions.
- Page 8 Safety We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system.
-
Page 9: In More Detail
more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 10: Product Functions
Operation Product functions > The ceramic hob caters for all kind of cooking, with its electromagnetic cooking zones and its electronic touch controls and multi-functions, making it the ideal choice for the modern family. > The ceramic hob is extremely user-friendly, durable and safe. Special functions Protection from over-heating >... -
Page 11: Operation
Operation Operation Zone Position ON/OFF Timer Timer Control Child lock Power regulating key Reference Description Zone position Power regulating key (reduce) Power regulating key (increase) Child lock ON / OFF Timer function... -
Page 12: Operating Instructions
Operation Preparation before use > When the power is switched on, the buzzer will sound once and all the indicators will switch on for one second and then switch off. The hob is now in standby mode. Place the pan in the centre of the cooking zone. Operating instructions Caution •... -
Page 13: Timer Function
Operation Timer function 2. Then adjust timer +/- controls of timer, the timer indicator cooking zone is with a timer setting. 4. When cooking time expires, the relative cooking zone will be switched off automatically. 5. Cooking timer only works for one cooking zone at the same time. Minute minder 6. - Page 14 Operation Safety mode (Child lock) To ensure the safety of children, the ceramic hob is fitted with an interlock device. To lock: Hold down the "Lock" ; the hob then switches to "Lock" mode, the timer displays "LOW" and the rest of the keys are disabled except the "ON/OFF" key.
-
Page 15: Care And Maintenance
Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, contact customer services. Care and maintenance Care Damaged power cables should be replaced by a competent person or qualified electrician. For domestic use only. - Page 16 Care and maintenance Avoid banging pots and pans down on the hob. The ceramic surface is tough but not unbreakable. Do not put detergents or flammable materials beneath the hob. Care and maintenance Appliance cleanliness Caution • Avoid rubbing with any abrasive or with the base of the pans, etc, as this will wear the markings on the top of the ceramic hob over time.
-
Page 17: Troubleshooting
Care and maintenance Troubleshooting Before calling the customer services, please check that the appliance is correctly connected, any of the following cases is not covered by the guarantee > Damage caused by improper use, storage or maintenance > Damage caused by unauthorised disassembly and repair. >... -
Page 18: Recycling And Disposal
Technical and legal information Recycling and Disposal Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 19: Technical And Legal Information
Technical and legal information All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST BE EARTHED. - Page 20 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For your own safety a qualified electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation.
- Page 21 Technical and legal information Caution The surface of the appliance becomes quite hot when operating. This could alter the electrical insulation and could cause electricity leakage. N1 L2 L1 220- 240V 220- 240V 220-240V 2+2N~ 220-240V~ NOTE The appliance must NOT be connected to the mains supply by means of a 13A plug and socket.
-
Page 22: Guarantee
Technical and legal information Manufacturer's Guarantee This appliance is covered by a full manufacturer’s 2 years labour and 5 years guarantee and covers all parts and labour costs associated with parts the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. -
Page 23: Customer Service
Technical and legal information Exclusions to the guarantee (continued) Claims arising from non-domestic use or commercial environment. If no fault is found then GAA reserves the right to charge for the call out at the going rate of £55.00 plus VAT. In the course of the service work carried out it may be necessary to ppliance is glued, grouted or tiled in such a manner that it cannot be removed, it is the... -
Page 24: Ce Declaration Of Conformity
CE Declaration of conformity CE Declaration of Conformity EC60T2 The Manufacturer has a policy of continuous product improvement, it reserves prior warning. -
Page 25: Appendix
Appendix... Installation... -
Page 26: Hob Installation
Installation Hob installation Caution The ceramic hob must be installed by a suitably qualified person. Never try to install the appliance yourself. The ceramic hob must not be installed above refrigerators, freezers, dishwashers or tumble dryers. The wall and the area above the hob should be able to withstand heat. - Page 27 Installation Clearance Warning Good ventilation is required around the appliance for easier dissipation of heat and low power consumption. Sufficient clearance is required around the appliance. The gap between the hob and any cupboard above it should be at least 750mm. 750mm 750mm At least...
-
Page 28: Installation Instructions
Installation Installation instructions Remove all the packing materials plus disposal statement. Siting (see fig.1) Caution Good ventilation is required around the appliance for easier dissipation of heat and low power consumption. Sufficient clearance is required around the appliance. The appliance should not be placed near anything that may echo. - Page 29 Installation [04] x 1 Cut out worktop to the template dimensions with suitable equipment and seal the cut edge with appropriate sealant. [02] x 4 [03] x 4 Using a screwdriver and 4x screws provided [03] mount the brackets on the hob adjusting the bracket to suit the work surface thickness.
-
Page 30: Technical And Legal Information
Installation WORKTOP WORKTOP BRACKET BRACKET Place hob into the worktop and tighten screws underneath the hob to secure in place. Note: For electrical connection see Technical and legal information section... - Page 31 Notes...
- Page 32 Unit 3, Normandy Landings Wakefield Europort, Pope Street Castleford West Yorkshire WF6 2AG...
