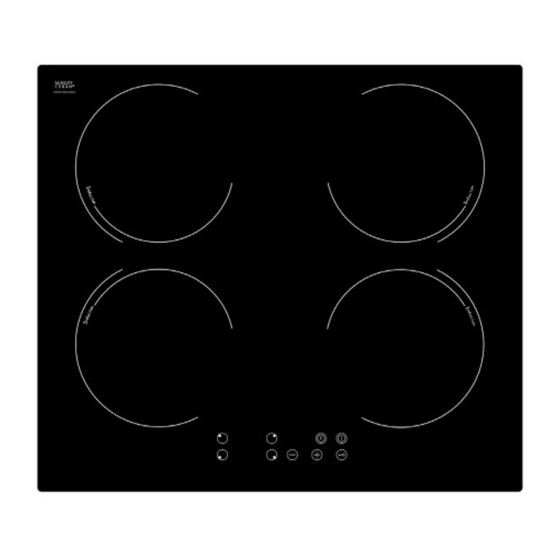

- Page 1 IND60ECO 60cm Induction Hob Barcode 8422248602440...
- Page 2 [01] x 1 [03] x 2 [02] x 2 [04] x 1...
- Page 3 IND60ECO Induction Hob Table à induction Installation...
-
Page 4: Table Of Contents
Let's get started... started... Getting Before you start Safety more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity Appendix Installation... -
Page 5: Getting Started
Before you start Safety... - Page 6 Before you start Before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners.
- Page 7 Safety These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. • This appliance must be installed correctly by a suitably qualified person, strictly following the manufacturer’s instructions.
- Page 8 Safety We also recommend that great care be taken during use and cleaning. Read the cleaning and maintenance sections for this appliance carefully. A steam cleaner is not to be used. The appliance is not intended to be operated by means of external timer or separated remote-control system.
-
Page 9: In More Detail
more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 10: Product Functions
Operation Product functions > The induction hob caters for all kind of cooking, with its electromagnetic cooking zones and its electronic touch controls and multi-functions, making it the ideal choice for the modern family. > The induction hob is extremely user-friendly, durable and safe. Working principle iron pot magnetic circuit... - Page 11 Operation Detection of small or non-magnetic items When an unsuitably sized or non-magnetic pan (e.g. aluminium) or some other small item (e.g. knife, fork, key) has been left on the hob, the hob switches automatically to standby one minute later. Residual heat indicator When the hob has been operating for some time, there will be some residual heat.
-
Page 12: Operation
Operation Operation Heating zone selection Key Timer key ON/OFF Power regulating key Child lock Reference Description Heating zone selection key Power regulating key (reduce) Power regulating key (increase) Child lock ON / OFF Timer key Preparation before use > When the power is switched on, the buzzer will sound once and all the indicators will switch on for one second and then switch off. - Page 13 Operation Operating instructions Caution • When the ON/OFF key (E) is pressed, the induction hob returns to standby mode if no other operation is carried out within one minute. • The four zones can take a maximum power of 3000 W. Consequently, the hob automatically reduces the maximum output power by allowing a maximum sum of total power levels of 12.
- Page 14 Operation Timer function 1. Press the timer key and the indicator will start to flash. 2. Then set the time for between 1 and 99 minutes by pressing the "+" and "-" keys. 3. Pressing the "+" key once increases the time by one minute; pressing the "-"...
- Page 15 Operation Safety mode (Child lock) To ensure the safety of children, the induction hob is fitted with an interlock device. To lock: 1. Hold down the "Lock" ; the hob then switches to "Lock" mode. 2. The timer displays "LOW" and the rest of the keys are disabled except the "ON/OFF"...
- Page 16 Oil Frying Pan Stainless steel pot Iron pan Enamel coking utensil Iron plate You may have a number of different cooking vessels This induction hob can identify a variety of cooking vessels, which you can test by one of the following methods: 1.
-
Page 17: Care And Maintenance
Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, contact an official distributor or authorised dealer. Care and maintenance Damaged power cables should be replaced by a competent person or qualified electrician. For domestic use only. - Page 18 Care and maintenance Do not leave metal objects, such as knives, forks, spoons and lids on the hob as they may get hot. Do not store detergents or flammable materials beneath the hob. Care and maintenance Appliance cleanliness Caution • The glass surface is tough but not unbreakable. •...
-
Page 19: Troubleshooting
Care and maintenance Troubleshooting The following circumstances may not be a problem. Do not contact the customer services until the problem has been confirmed. If your appliance is still not functioning properly after making the checks below, please contact the customer services. Potential failure mode Potential cause Corrective action... -
Page 20: Recycling And Disposal
Care and maintenance Recycling and disposal Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. -
Page 21: Technical And Legal Information
Technical and legal information Power supply V / Hz 220-240 V~/50 Hz External dimensions 590 x 55 x 520 (WxHxD) Net weight Legal information The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. - Page 22 Technical and legal information All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST BE EARTHED.
- Page 23 Technical and legal information Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E. Regulations and local electricity company regulations. For your own safety a qualified electrician or contractor who is on the roll of the National Inspection Council for Electrical Installation Contracting (NICEIC) should undertake the electrical installation.
-
Page 24: Guarantee
Technical and legal information Manufacturer's Guarantee This appliance is covered by a full manufacturer’s 24 month parts and labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 25 Technical and legal information Exclusions to the guarantee (continued) Claims arising from non-domestic use or commercial environment. Any gas appliance not fitted by a gas safe qualified installer. If no fault is found then GAA reserves the right to charge for the call out at the going rate of £55.00 plus VAT.
-
Page 26: Ce Declaration Of Conformity
We herebyc ertify that them entioned accessoryc ompliesw itht he essentialr equirements of theE uropeanD irectivesa pplicable,i ncluding theirm odifications andt he corresponding transpositions from the national law. MACHINE APPLICATION: IND60ECO Induction Hob TYPE: Comply with the following European Directives 2006/95/CE:... -
Page 27: Appendix
Appendix... Installation... - Page 28 Installation Caution The ceramic hob must be installed by a suitably qualified person. Never try to install the appliance yourself. The ceramic hob must not be installed above refrigerators, freezers, dishwashers or tumble dryers. The wall and the area above the hob should be able to withstand heat.
- Page 29 Installation Clearance Warning Good ventilation is required around the appliance for easier dissipation of heat and low power consumption. Sufficient clearance is required around the appliance. The gap between the hob and any cupboard above it should be at least 750mm. 750mm 750mm At least...
- Page 30 Installation Installation instructions Remove all the packing materials plus disposal statement. Siting (See fig.1) Caution Good ventilation is required around the appliance for easier dissipation of heat and low power consumption. Sufficient clearance is required around the appliance. The appliance should not be placed near anything that may echo.
- Page 31 Installation ure the hob is correctly installed as shown in Figure(2). mini 750 mm Air exit mini 5 cm mini 5 mm mini 2 cm [04] x 1 Air intake e (2) Cut out worktop to the template dimensions with suitable equipment and seal the cut edge with appropriate sealant.
- Page 32 Installation [02] [03] Place hob into the worktop and tighten screws underneath the hob to secure in place. Note: For electrical connection see Technical and legal information section...
- Page 33 Notes...
- Page 34 Notes...
- Page 35 Notes...
- Page 36 CNA Trading U.K. Ltd Hillbrow House Hillbrow Road Esher Surrey KT10 9NW...
