- Page 1 User Manual UBTCCMZ60 Built-in ceramic hob...
- Page 3 Warning 1） The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. children being supervised not to play with the appliance.
- Page 4 Warning use of the appliance in a safe way and understand the hazards involved. children shall not play with the appliance. cleaning and user maintenance shall not be made by children without supervision. 9） WARNING: The appliance and its accessible parts become hot during use.
-
Page 5: Table Of Contents
Contents Safety Warnings 6 – 11 Product Overview 12 – 13 Top View Control Panel Product Information Before using your New Ceramic Hob Using the Touch Controls Choosing the right Cookware Using your Ceramic Hob 15-16 Dual Zone Function 17-18 Locking the Controls Residual Heat Warning Auto Shutdown... -
Page 6: Safety Warnings
Safety Warnings Your safety is important to us. Please read this information before using your cooktop. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. - Page 7 • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • Failure to install the appliance correctly could invalidate any warranty or liability claims.
- Page 8 and lids should not be placed on the hob surface since they can get hot • Keep children away. • Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
- Page 9 or sit, stand, or climb on it. • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. •...
- Page 10 •This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments ; -bed and breakfast type environments.
- Page 11 • Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts •A steam cleaner is not to be used. •The appliance is not intended to be operated by means of an external timer or separate remote-control system.
-
Page 12: Product Overview

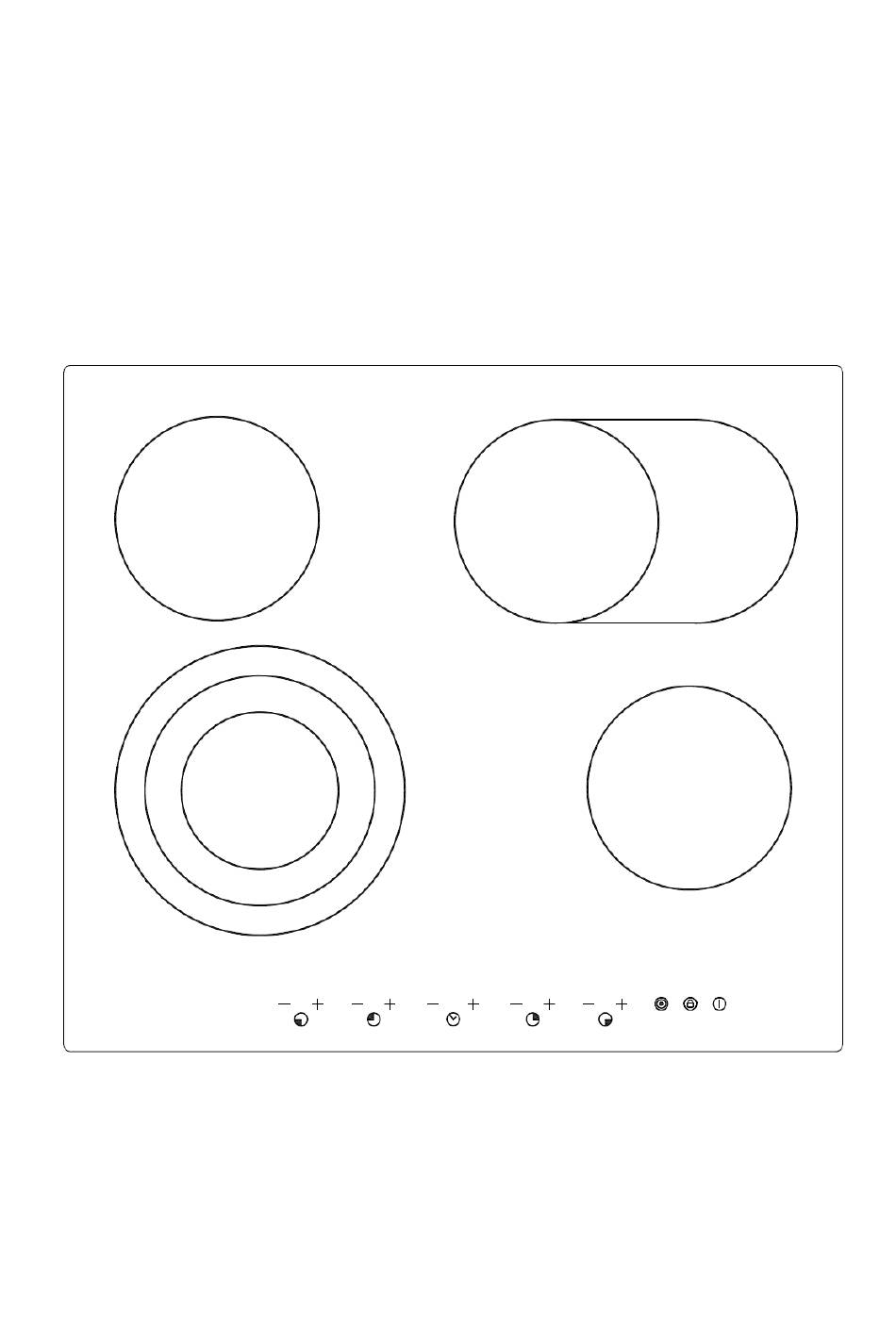

Product Overview Top View 1. max. 800/1600/2300 W zone 2. max. 1200 W zone 3. max. 1100/2000 W zone 4. max. 1200 W zone 5. Glass plate 6. Control panel... -
Page 13: Control Panel
Control Panel 1. Power regulating key 2. Timer regulating key 3. Dual zone control 4. keylock control 5. ON/OFF control Product Information The microcomputer ceramic hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. -
Page 14: Choosing The Right Cookware
Choosing the right Cookware Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone. Always lift pans off the ceramic hob –... -
Page 15: Using Your Ceramic Hob
Using your Ceramic Hob To start cooking • After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the state of standby mode. 1. Touch the ON/OFF control. - Page 16 When you have finished cooking 1. Turn the cooking zone off by scrolling down to“0” or touching “-” and “+” control together. Make sure the display shows“0” 1. Turn the whole cooktop off by touching the ON/OFF control. 2. Beware of hot surfaces H will show which cooking zone is hot to touch.
-
Page 17: Dual Zone Function
Dual Zone Function • The function only work in 1# and 3# cooking zone • The dual cooking zone has two cooking areas that you can use a central section and an outer section. You can use the central section (A) independently or both sections (B) at once. - Page 18 2. For zone1 the power level indicator flash, ” ” two time press the The three loop function is activate, and power level shows “6” and “ ” alternately. Deactivate the dual zone 1. Press the heating zone selection control of the dual loop heating zone, the power level indicator flash, then press”...
-
Page 19: Locking The Controls
Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). • When the controls are locked, all the controls except the ON/OFF control are disabled. To lock the controls Touch the keylock control. - Page 20 Using the Timer as a Minute Minder If you are not selecting any cooking zone Make sure the cooktop is turned on. Note: you can use the minute minder even if you’re not selecting any cooking zones. Touch”+” the controls of the timer. The minder indicator will start flashing and “10”...
- Page 21 time and the timer indicator will flash for 5 seconds. 6. Buzzer will beep for 30 seconds and the timer indicator shows “- - “ when the setting time finished. Setting the timer to turn one or more cooking zone off If the timer is set on one zone: 1.
- Page 22 4. Touching the ”-“ and “+” together, the timer is cancelled, and the ”00” will show in the minute display. 4. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds. NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.
- Page 23 If the timer is set on more than one zone: When you set the time for several cooking zones simultaneously, decimal dots of the relevant cooking zones are on. The minute display shows the min. timer. The dot of the corresponding zone flashes. (set to 15 minutes) (set to 45 minutes) Once the countdown timer expires, the corresponding zone will switch off.
-
Page 24: Cooking Guidelines
Cooking Guidelines Cooking Tips • When food comes to the boil, reduce the power setting. • Using a lid will reduce cooking times and save energy by retaining the heat. • Minimise the amount of liquid or fat to reduce cooking times. •... -
Page 25: Heat Settings
Heat Settings Heat setting Suitability • delicate warming for small amounts of food 1 - 2 • melting chocolate, butter, and foods that burn quickly • gentle simmering • slow warming • reheating 3 - 4 • rapid simmering • cooking rice •... -
Page 26: Hints And Tips
Boilovers, melts, and Remove these immediately with • Remove stains left by melts and hot sugary spills on a fish slice, palette knife or razor sugary food or spillovers as soon the glass blade scraper suitable for as possible. If left to cool on the ceramic glass cooktops, but glass, they may be difficult to beware of hot cooking zone... -
Page 27: Technical Specification
(layers of different metals vibrating differently). Technical Specification Cooking Hob UBTCCMZ60 Cooking Zones 4 Zones Supply Voltage 220-240V~/380-415V 2N~ Installed Electric Power 6700W Product Size L× W× H(mm) -
Page 28: Installation
Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. - Page 29 locating the fixing brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation.
- Page 30 5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat. 6. A steam cleaner is not to be used. 7. This ceramic can be connected only to a supply with system impedance no more than 0.427 ohm. In case necessary, please consult your supply authority for system impedance information.
- Page 31 Connecting the hob to the mains power supply The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below. 1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.
