INSTALLATION INSTRUCTIONS
This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that
will enable you to obtain replacement parts or optional accessory items when needed. Keep it with your other important papers.
WARNING: ALWAYS LEAVE GLASS DOORS
FULLY OPENED OR FULLY CLOSED WHEN
OPERATING THIS FIREPLACE.
DESA INTERNATIONAL
2701 INDUSTRIAL DRIVE
P.O. BOX 90024
BOWLING GREEN, KY 42102-9004
www.desatech.com

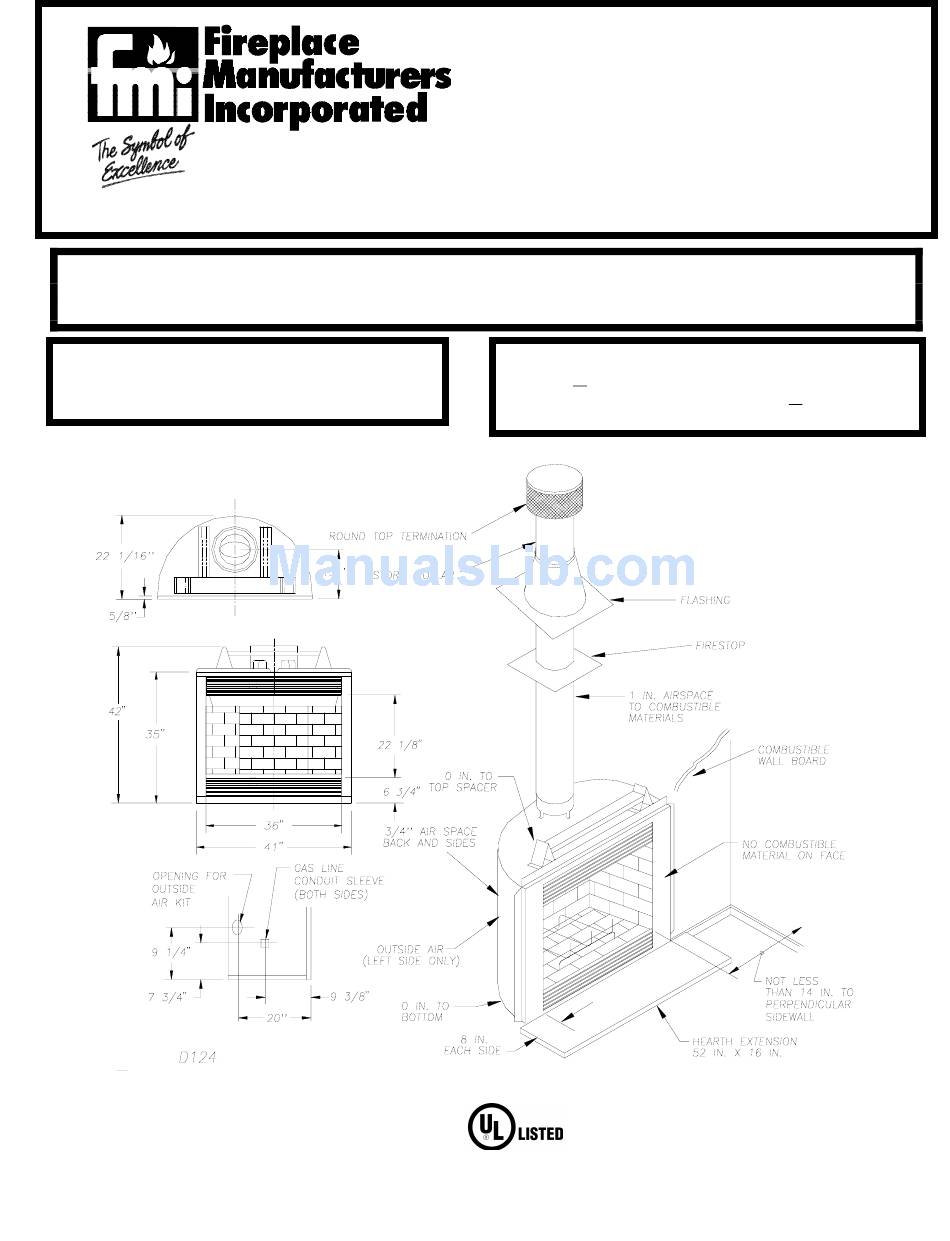

36" Wood Burning Fireplace
Models: 36ECD
SAVE THIS BOOK
This Fireplace is approved for use as a Wood Burning
Fireplace or for use with a vented gas log approved to ANS
Z21.60, Z21.84 or RGA 2-72 Standards or for use with a
vent-free gas log heater approved to ANS Z21.11.2 standard.
Circulating (Louvered)
I36ECD
Circulating (Louvered)
Fully Insulated
P/N 55392
REV B
1/00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FMI 36ECD
Summary of Contents for FMI 36ECD
-
Page 1: Installation Instructions
36” Wood Burning Fireplace Models: 36ECD Circulating (Louvered) I36ECD Circulating (Louvered) Fully Insulated INSTALLATION INSTRUCTIONS SAVE THIS BOOK This book is valuable. In addition to instructing you on how to install and maintain your appliance, it also contains information that will enable you to obtain replacement parts or optional accessory items when needed. -
Page 2: Installing The Fireplace
♦ The FMI warranty will be voided by and FMI disclaims fireplace. any responsibility for the following actions:... -
Page 3: Framing Dimensions
(exception – see page 5 figure 16). CHIMNEY PIPE: The FMI chimney system, consists of 12, 18, 24, 36 and 48 inch snap-lock double wall pipe segments, planned for maximum adaptability to individual site requirements. Actual... - Page 4 STEP 5: Add the next sections of the pipe until the end penetrates the roofline. Check to see that the proper clearances are maintained. Extend chimney by adding sections of double wall pipe until pipe is a minimum of 30 inches above the highest point of the roof cutout.
-
Page 5: Chase Installations
TERMINATIONS: 10 FOOT RULE: The fireplace system must be terminated with the listed round All chimney terminations must extend a minimum of 3 feet in top or chase terminations. In any case, refer to the installation height above the highest point where it passes through the roof instructions supplied with the termination. - Page 6 INSTRUCTIONS WHEN OFFSET OF CHIMNEY IS OFFSET RISE CHIMNEY LENGTH NEEDED 48" 36" 24" 18" 12" 4 - 3/8 16 -3/8 TO INSTALL ELBOWS 9 - 3/4 25 - 1/2 1. To achieve desired offset, you may install combinations 12 - 3/4 30 - 3/4 34 - 3/4 of 12”, 18”, 24”, 36”...
- Page 7 ROOM HEATERS, ANS Z21.11.2, ARE TO BE INSTALLED IN Remove fragmented portions of refractory (see figure 18). THIS FIREPLACE. NOTE: An FMI hood must be installed when using an unvented gas log set (see accessories on page 9). WARNING: DO NOT OPERATE AN UNVENTED GAS LOG SET IN THIS FIREPLACE WITH THE CHIMNEY REMOVED.
-
Page 8: Cold Climate Installations
8” beyond each side of the fireplace opening is required to protect combustible floor construction in front of the fireplace. Use FMI hearth extension (refer to FINISHING YOUR FIREPLACE: page 7) HE 36 or a layer of non combustible, inorganic Combustible materials such as wallboard, gypsum board, sheet material having a thermal conductivity of K=0.84 BTU IN/FT. -
Page 9: Technical Service
WARNING: Risk of fire; Replace grate with FMI Model MANTELS: A mantel may be installed if desired (see figure 24). 36E GR grate only. Woodwork such as wood trims, mantels, or any other combustible material projecting from the front face must not DAMPER OPERATION: be placed within 9 inches of the fireplace opening. - Page 10 R EPLA C E M EN T PA R TS A C C ESSO R Y PA R TS...
