Set Up Your Wi-Fi Connect into Your Home Network

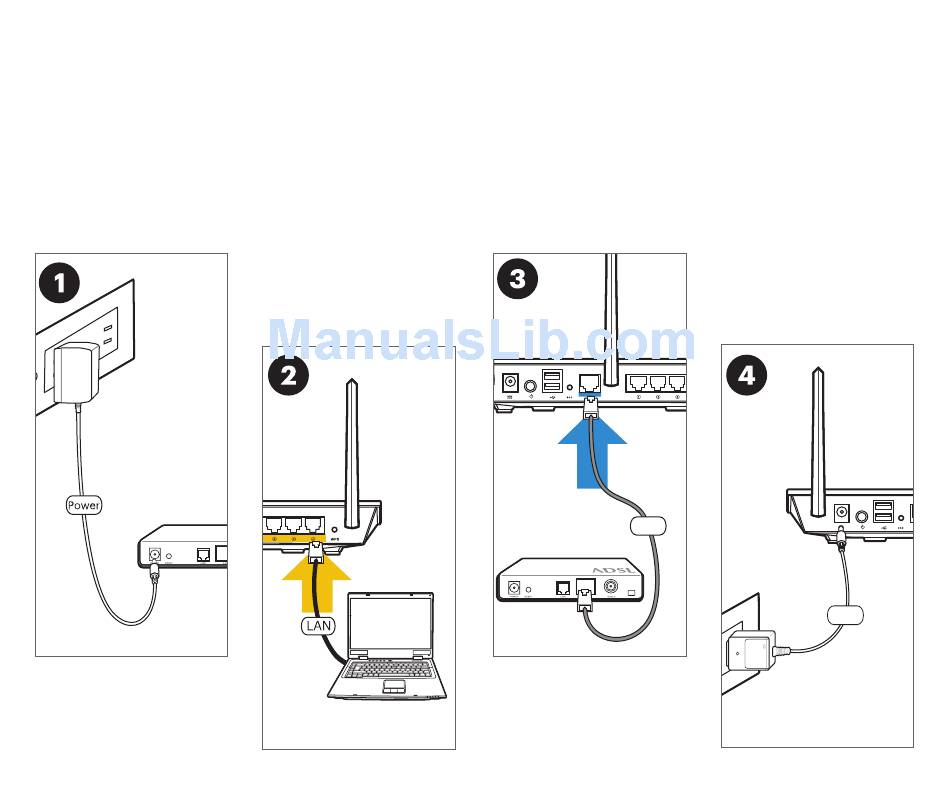

1. Unplug the power cord from your modem.
Wait 10 seconds then plug it back in.
2. Using the bundled network cable, connect your
computer to your Wi-Fi Connect's yellow LAN port.
3. Using another network cable, connect your
modem to your Wi-Fi Connect's blue WAN port.
6
4. Insert your Wi-Fi Connect's AC adapter into the
DC-IN port and plug it into a power outlet.
IMPORTANT! Ensure the Wi-Fi Connect's Power Button
is pushed in and network cables are clicked into
place. Wait about 1 minute until your Wi-Fi Connect's
blue indicator lights are solid.
WAN
Power
