Summary of Contents for Majestic Appliances MJ-9200W
Page 1

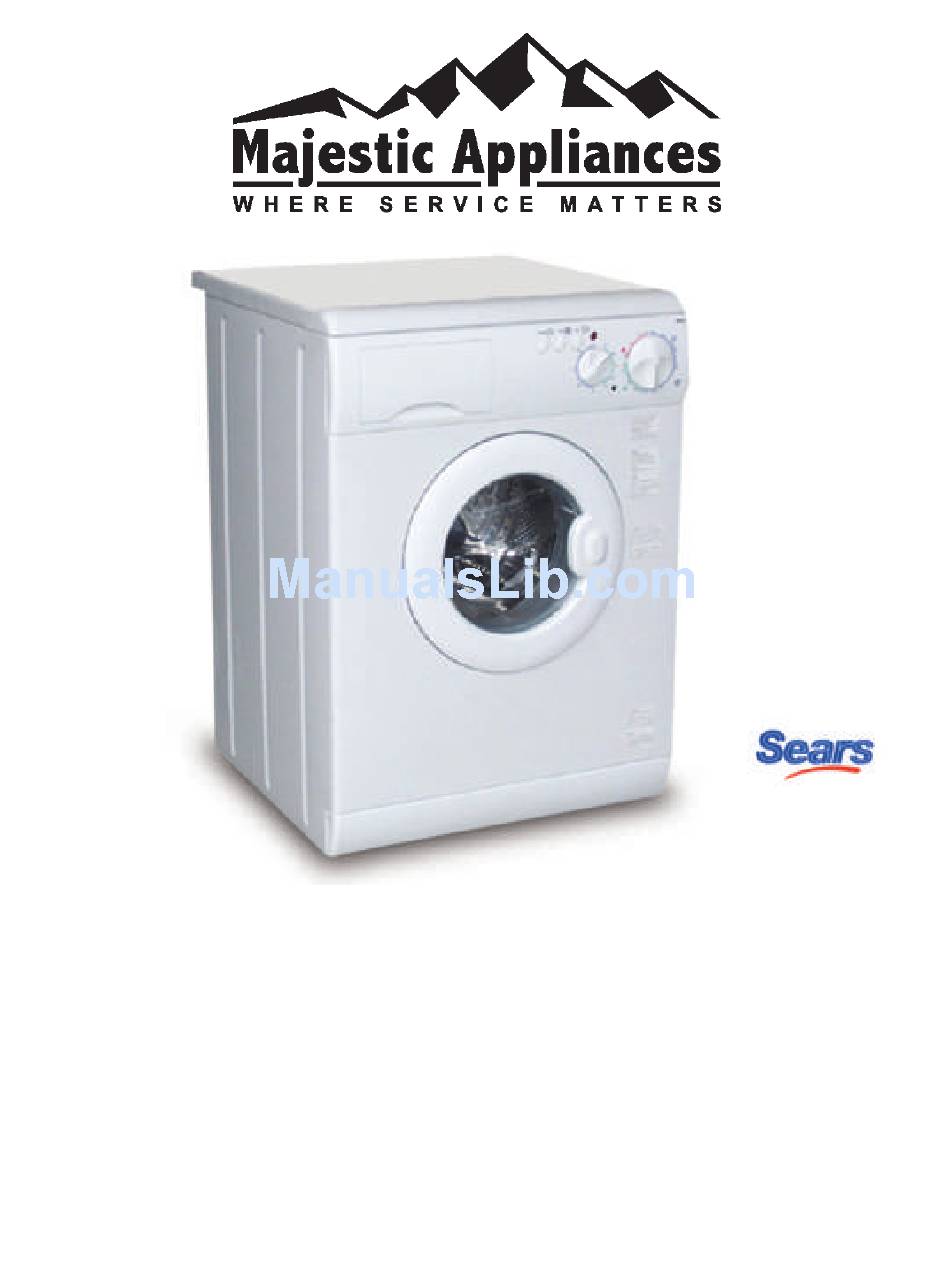

After sales service provided by Sears Service nationwide Model MJ-9200W Washing Machine Owners Manual Very Important ! Read Installation Instructions On Page 5 Website: http://www.MajesticAppliances.com Check this website under Models for the most up-to-date manual. In all situa- tions, the most current manual goverens in questions of use and warranty...
Important Safety Instructions WARNING- To reduce the risk of fire, electric shocks, or injury to persons when using your appliance, follow the basic precautions, including the following: 1. Read all instructions before using the appliance. 2. Do not wash articles that have been previously cleaned in, washed in, or spotted with gasoline, dry-cleaning solvents, or other flammable and explosive substances such as solvents.
Installing/Removing Getting things ready to install your appliance Unpacking, Inspecting, Electricity, Closets/Alcoves, Plumbing, Venting Unpacking • Check the shipped appliance for shipping damage. It is your responsibility to register any damage with the freight company delivering the product. • Remove the strapping, then slide the cardboard surround off the machine. Re≠move the foam protecting material and the plastic bag.
Page 6
REMOVING THE FOAM DRUM SUPPORT REPLACING THE METAL BOTTOM PAN. WARNING!!! IN ORDER TO REMOVE THE FOAM DRUM SUPPORT AND REPLACE THE METAL BOTTOM PAN, THE BOTTOM OF THE MACHINE MUST BE ACCESSED. SHIPPING BOLTS MUST REMAIN IN THE APPLIANCE WHILE ACCOMPLISHING THIS STEP IN THE PREPARATION PHASE OF THE INSTALLATION.
Page 7
Plese call Majestic Appliances for more information. • Installations in RV’s or Marine pleasure craft suggest that the machine might best be installed midships in the boat, or over the axles of the RV where movement is at a minimum.
Page 8
Connection of the drain hose to standpipe • Outlet end of drain hose (See figure 2) must be at least 20” above bottom of washer. Do NOT block top of standpipe closes with tape or other materials. An air break must be provided at the standpipe to avoid siphoning.
Washing For best results washing Preparation, sorting, inspecting, pre-wash treatments, helpful laundry hints, simple controls, detergent dispensers Preparation Before you begin washing, taking a few simple steps will help you have a better washing experience and save wear and tear on your clothing as well. 1) Read factory labels for washing instructions 2) Pre-treating heavily soiled areas will also improve washing results.
Washing For best results washing (continued) Preparation, sorting, inspecting, pre-wash treatments, helpful laundry hints, simple controls, detergent dispensers Selecting/setting the wash program. Red is for Wool Green is for Use Majestic Laundry Detergent. Cost effective. On the web at http://www.thehotdeal.com or call us toll free at 1-800-678-8002.
Page 11
2 Wash detergent A Softeners, conditioners and perfumes. C Bleach ���������� Washer Control This control turns clockwise and allows you to select any of 14 wash cycles for any load. It is best to adjust this with the power off. Blue is for Cotton, green for synthetics and red for wool.
Page 12
Guide for Selecting Programs on your Majestic™ laundry appliance Type of Fabric and Detergent degree of soiledness for Pre- wash Pre-Wash: Heavily soiled white laundry and color fast fabrics * † Heavy Duty: White and color fast fabrics * † Normal:Mixed cotton, synthetics and color fast fabrics †...
Page 13
Stains Tips on Stain Removal BALLPOINT INK Hold stain against towel, spray closely from behind with aerosol hair spray. Ink should transfer to towel BEVERAGES Soak in cool water. Re-wash with stain remover. Launder using chlorine bleach (if safe for fabric) or oxygen bleach. BLOOD Immediately rinse with cool water.
Troubleshooting tips Read here, then call us Even though your washer has been carefully designed and constructed, something may still go amiss with your machine. Before rushing to technician, please check that the operations listed below have been carried out. In many cases you will save time, money and a bother.
Now turn the power off and continue steps 4 and 5 and 6 above. Pump Self Cleaning Pump - Your washer dryer is equipped with a self-cleaning pump. It is therefore not necessary to carry out cleaning and maintenance operations. Some objects such as buttons, coins, etc., will sometimes drop into the pump and must be removed.
Page 16
But after all of these steps are exhausted Majestic Appliances may have to request that an RV Owner drive to the nearest authorized service dealer in order for us to provide service.
Page 18
2.25” deep UV Inhibitor PN 17-1056 drip Pan High Density ABS PN 17-1050 Stackable Attaching Kit Part for stacking the washer and dryer separates PN 17-1052 Econo Outside Vent Calcium filled Polypropylene Melting Point 325 Degrees Approx. UV Inhibitor added...
