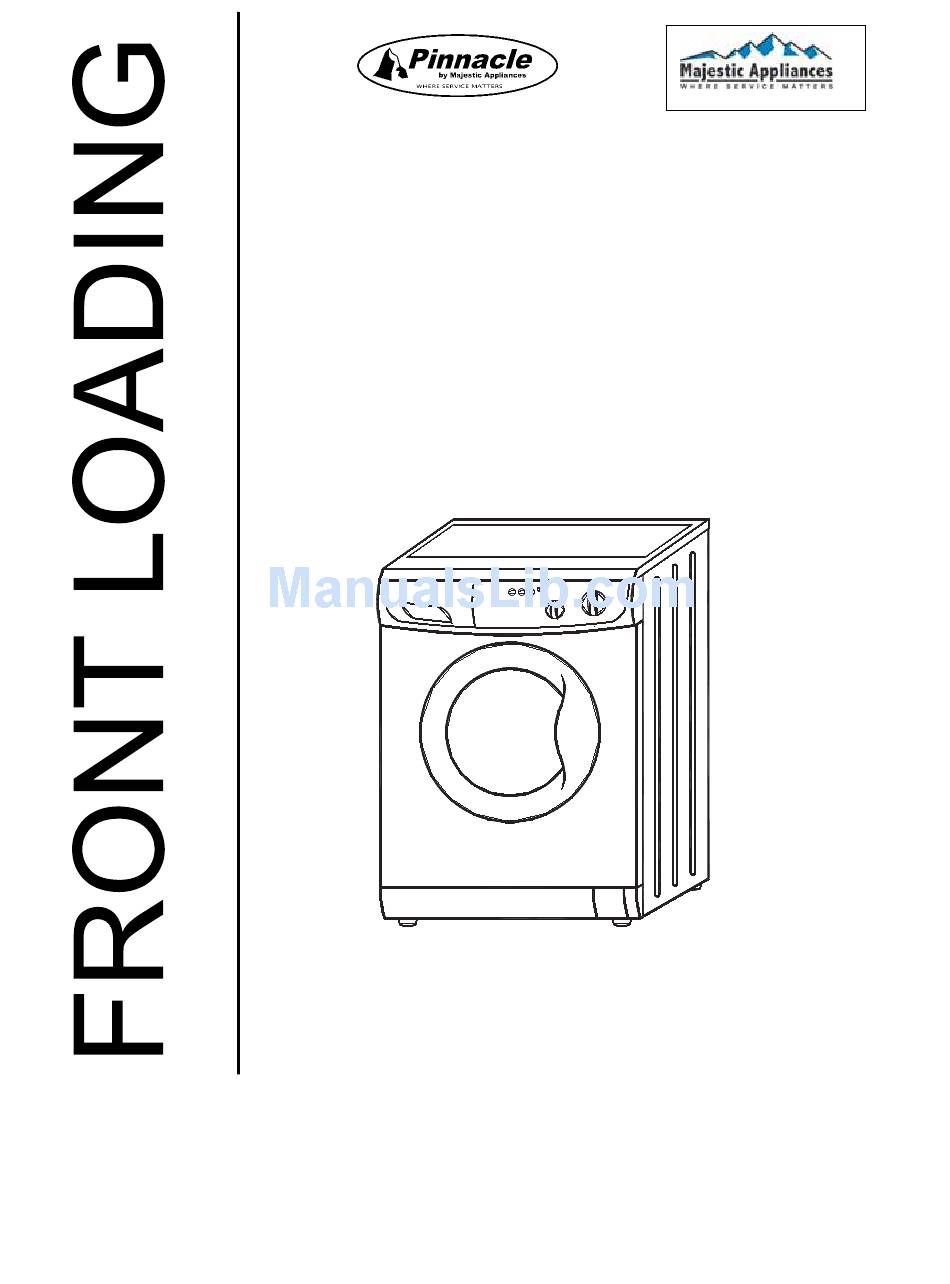

- Page 1 110v Washer MJ9250W / 17-2012 Owner’s Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Warranty……………………………………………………………………………2-4 Introduction ………………………………………………………………………….5 Important Safety Instructions ………………………………………………………6 Picture of the Combo Washer ………………………………………………9 Installation………………………………………………………………………….10-12 Control Panel…………………………………………………………………… 13-14 Operating Instructions …………………………………………………………….15 Program Selection Chart ………………………………………………………….16 Stain removal Chart………………………………………………………… 17-18 Maintenance ……………………………………………………………………….20 Technical Data …………………………………………………………………….20 Troubleshooting. ………………………………………………….……………… 21 Company Information …………………………………………………………….22 Please read the Owner’s Manual carefully before using your new Majestic Washer Washer Owner’s Manual... -
Page 3: Warranty
Geographic Exception: If the product is installed at a location more than 50 miles from an urban area (minimum population 25,000), Majestic Appliances may, at its option, offer a 2-year parts only Warranty, if a service agent cannot be found. Responsibility for labor, in such instances will be that of the consumer-owner. - Page 4 EXCLUSIONS In no event shall Majestic Appliances be liable for incidental or consequential damages or for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts God. This warranty does not cover service calls, which do not involve defective workmanship or materials covered by this warranty.
-
Page 5: Warranty
Remember to send in your Warranty Registration Card so that a proof of your purchase exists with Majestic Appliances. You can also register online or by calling Majestic Appliances Customer Service at 1-866-218-6902. -
Page 6: Introduction
Congratulations on your new Pinnacle by Majestic Washer. In addition to its award winning design, this is a highly sophisticated engineered product that will give you many years of satisfaction. Please take the time to read this Owner’s Manual in order to understand the machine and get the best use out of your valuable purchase. -
Page 7: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and that of you children Your washing machine has been built in compliance with safety regulations, to protect you and all your family. WARNING o reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: 1. - Page 8 Use Low sudsing Detergent. This is recommended for all front-loading washers. It ensures there is no over sudsing, which may reduce the performance of your machine. If you have any problem obtaining low sudsing detergent, please call Majestic Appliances to obtain information on our house brand, Majestic high efficiency detergent.
- Page 9 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER BACK). USER SERVICABLE PARTS INSIDE. REFER SERVICING QUALIFIED SERVICE PROFESSIONALS. Your new appliance is carefully engineered product. Many times what appears to be a reason to call service, the problem may require nothing more than a simple adjustment you can easily make in your own home.
-
Page 10: Picture Of The Combo Washer
PICTURE OF THE WASHER Control panel Detergent dispenser Door Adjustable feet spin speed Wash program Selector knob selector knob Coin trap Washer Owner’s Manual... -
Page 11: Installation
INSTALLATION UNPACKING, LEVELING, & POSITIONING Remove the packing and check that the washer dryer is undamaged. If you have any doubt, do not use the washer dryer and call Majestic Customer Service. Keep all packing parts (plastic bag, foam rubber, screws, etc.) out of the reach of children since they could be dangerous. -
Page 12: Connecting The Drain Hose
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding plug. - Page 13 RECESSED, CLOSET AND ALCOVE INSTALLATION (Instructions) The machine may be installed in a recessed area, closet or alcove. The installation spacing is in inches and is the minimum acceptable. Additional spacing should be considered for easy installation, servicing and compliance with local codes and ordinances.
-
Page 14: Control Panel
CONTROL PANEL A Wash program knob B Spin speed select knob C Detergent compartment D Power button The detergent dispenser has 4 compartments, marked 1, 2, A, C. 1. Pre-wash detergent 2. Wash detergent A. Fabric softener (Additives) C. Bleach (i.e. Clorox) E ½... - Page 15 Power button. Pressed in for ON Not pressed for OFF 1/2 Load button. If you have half a load or a light load, press this button. No spin button. For delicate clothing (wools, silks etc.) Press this button for the, “Delicate” cycle and the washer drum will not spin.
-
Page 16: Operating Instructions
Warning — to reduce the risk of fire, electric shock, or injury to person, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. OPERATING INSTRUCTIONS 1. Make sure Washer is turned off. (Indicator light should be off). 2. Separate clothes into cottons, permanent press and delicates. 3. -
Page 17: Program Selection Chart
PROGRAM SELECTION CHART Type of Fabric Program 1 - Prewash 2 - Heavy Cottons 3 - Normal 4 - Fast 5 - Super Permanent 6 - Standard Press 7 - Express Delicates 8 - Delicates SPIN SPEEDS Cottons High spin ... -
Page 18: Stain Removal Chart
STAIN REMOVAL CHART Blood Rinse or soak fresh stain in cold water. Work detergent into any remaining stain. Rinse. If stain persists, put a few drops of ammonia on stain and repeat detergent treatment. Rinse. If necessary bleach. Candle Wax Scrape off excess. - Page 19 Grass Work detergent into stain. Sponge with denatured alcohol. Bleach, if necessary. Grease or Oil Scrape away excess. Rub detergent paste or a general-purpose liquid household cleaner into stain, rinse with hot water. If stain remains, sponge thoroughly with a grease solvent. Dry. Repeat if necessary.
- Page 20 WINTERIZING YOUR WASHER/DRYER To winterize your washer/dryer please, follow the instructions below to avoid damage to your unit due to freezing: 1. With the unit off, remove wash filter. This will allow the water remaining in the pump and drain hose to be evacuated.
-
Page 21: Maintenance
Model Rated Voltage Washing input power Spin input power Capacity Spin Speed Wash programs Water pressure Dimensions (HXWXD) Weight MAINTENANCE (Fig.7) MJ9250W 110-120V/60Hz 560W 980W 14lbs. 1,000 rpm 0.05-1(MPa) 33.5 x 23.5 x 21.6 (inches) 167 lbs. Washer Owner’s Manual... -
Page 22: Troubleshooting
TROUBLESHOOTING In most cases, when your washer fails to work, the problems arising can be easily solved without having to call for a technician. Before calling for assistance, always check these points. The washer fails to start Is the plug correctly inserted into the socket? Is there electricity in the house? Is the door closed properly? Is the power button pressed? -
Page 23: Company Information
COMPANY INFORMATION www.majesticpinnacle.com SERVICE & SUPPORT: service@majesticpinnacle.com (866) 218-6902 Majestic Appliances 2801 W Sam Houston Pkwy N, Suite 195 Houston, TX 77043-1611 Phone (713) 933-1462 • Fax (832) 202-2732 All rights reserved. Manual subject to change without notice Washer Owner’s Manual...
