Summary of Contents for Majestic Appliances MJ9000V

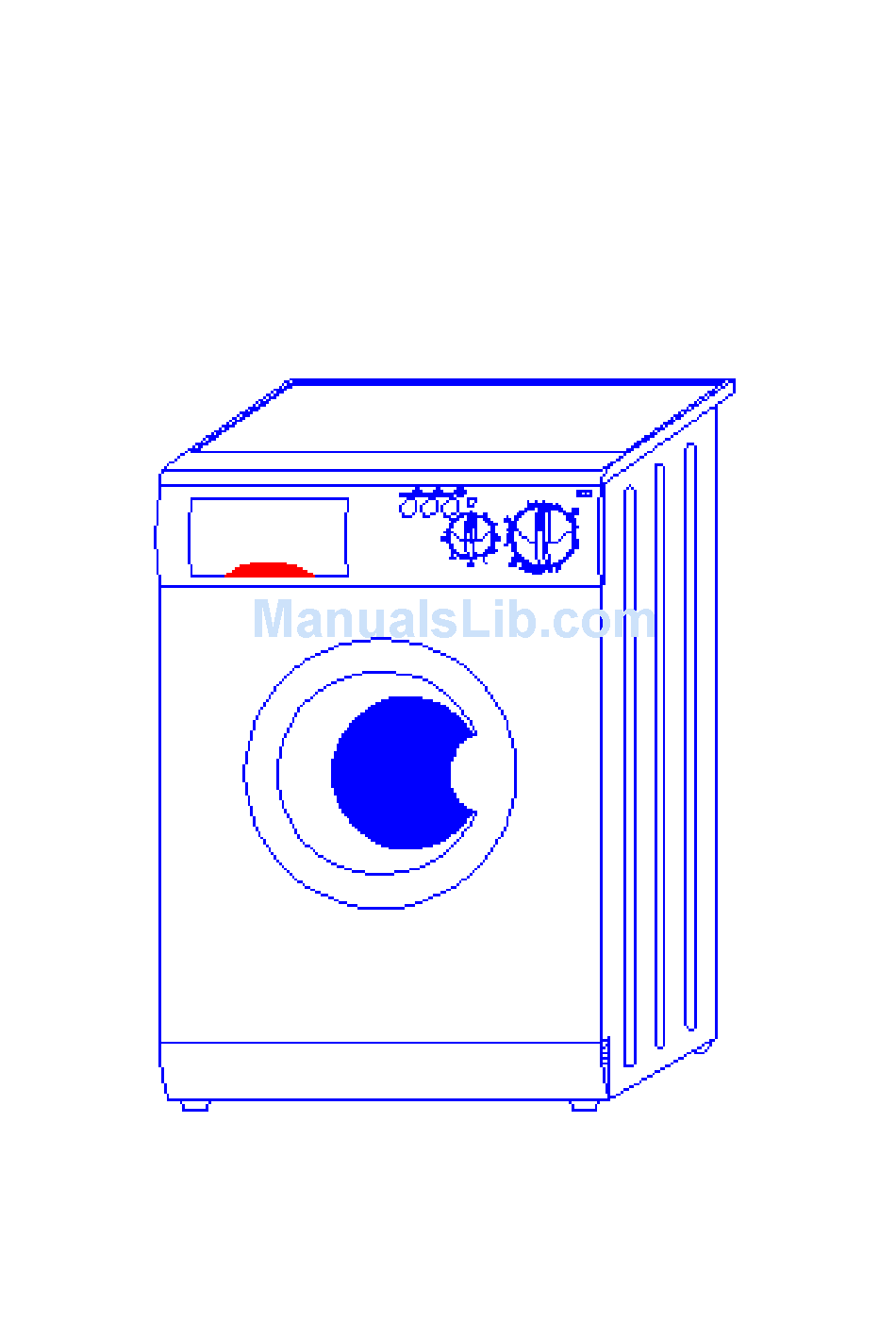

- Page 1 MJ9000V TECHNICAL MANUAL MJ9900 Installation dimension...
- Page 2 Your machine, has a solution to every problem What to do if We have put together here a few questions which may come...
- Page 3 to mind when you start using your machine, you will see for yourself that your new washer dryer can give a convincing and state of the art reply to all of them. This machine has been designed to adapt the washing 1.
- Page 4 We would also advise you to place your washer-dryer in such a way that there is some space-even a fraction of an inch-all sides. (Fig.1) First of all, remember to switch off the electricity. Then, to 6.How shoulder I clean the body and any rubber parts use a damp cloth and clean my washer- a little soap.
- Page 5 3. Clean the detergent dispenser every so often. This is very simple and should be done with water. Your machine has an extractable dispenser to make it even easier. Just pull it upwards and out, as shown in Fig.2 (Fig.2) 4.
- Page 6 Check that: The washer-dryer The tap is open and properly connected to the inlet pipe; won’t fill with The inlet pipe is not bent. water Check that: The washer-dryer The inlet pipe is placed at least 80cm/32 inches above fills and drains ground level.
- Page 8 WASHING MACHINES REF.MODELS MJ9000V DESCRIPTION Back panel Cabinet assembly Top panel assembly Rest for hose and cable Board panel Switch cover Lamp cover Timer (washing) knob Timer (drying) knob Dispenser handle Micro delaying device Porthole catch Porthole catch pin Porthole catch spring...
- Page 10 WASHING MACHINES REF.MODELS MJ9000V DESCRIPTION Drum Tub cover gasket Tub front flange “U” bolt Porthole gasket Front counterweight Detergent recovery hose Hose tub to pump Hose dispenser to tub Shock absorber Shock absorber support Tub suspension spring Spring rest Upper counterweight...
- Page 12 WASHING MACHINES REF.MODELS MJ9000V DESCRIPTION Dry timer 02-05-45 Pressure switch hose 03-04 Pressure switch Wash timer “Y” coupling Transmission to detergent tray Cam follower Bush to timer cam Timer cam Cable assembly Pump 14-15 Capacitor Motor Nut M6 Motor spacer...
- Page 14 WASHING MACHINES REF.MODELS MJ9000V DESCRIPTION Fan motor The wire with fuse Thermostat 2TT NC 125/85 Upper body of blower Reflecting screen WDM Heating element Gasket of blower body WDM Lower body of blower Zipper for porthole gasket and blower Fan nut...
- Page 17 Timer removal and installation Motor check and how to change it...
- Page 18 8P socke t M4 ground connection Terminal Description Resistance 5.3-5.8_ 23.3-24.1_...
- Page 19 How to change pressure switch This machine has a 1levle pressure switch and 2 level pressure switch. A: 2 level pressure switch 2 Level pressure 1 level pressure switch switch...
- Page 20 B: 1level pressure switch: The process is same as above, wiring connect as fellow: Hose dispenser to tub (9000V\9900) Micro delaying device Capacity 1_picture...
- Page 21 2_test C1=80uF C2=80uF 3_connect to wiring Connect C1, C1X terminals of wiring to C1. Connect C2, C2X terminals of wiring to C2. 1_picture...
- Page 22 2_removal and connection...
- Page 23 Test the machine to sure the machine can work normal. Recovery the top panel assembly. Complete. How to change drying timer _Disconnect power from machine. 2_Remove top panel assembly by removing two size SD3.5x13mm screws. 3_pull out timer knob from control panel. 4_unscrew two screw size M4x6 from control panel.
-
Page 24: Fan Motor
Fan motor Connection: Plug terminal MV of wiring to upper terminal of fan motor. Plug terminal TF of wiring to lower terminal of fan motor. 1_picture 2_connection to wiring... - Page 25 Heat element...
- Page 26 Wire with fuse and Thermostat 2TT NC 125/85 Connection of dryer...
