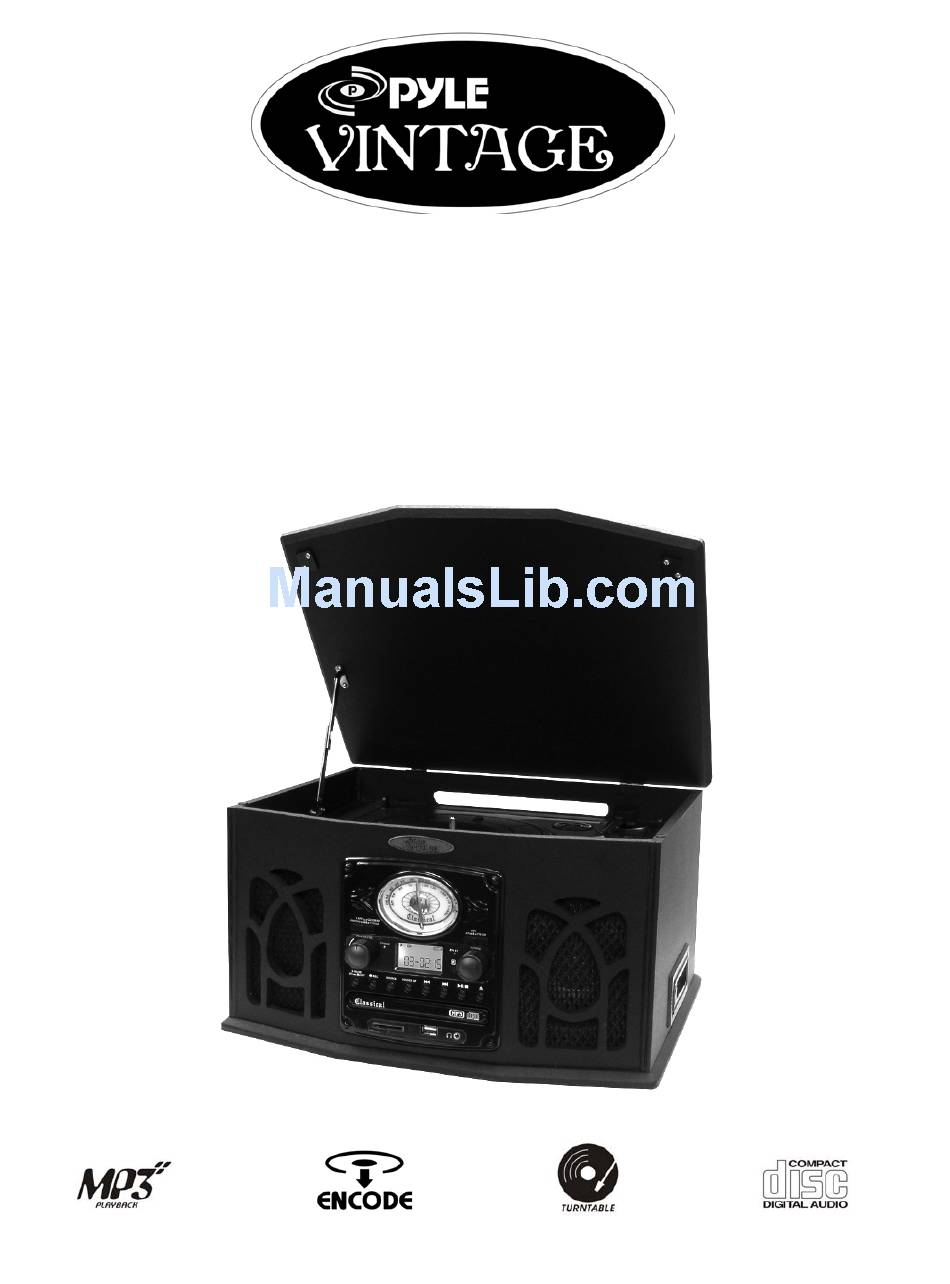

- Page 1 Vintage Turntable With CD / Cassette / Radio / Aux-In / USB / SD / MP3 and Vinyl-to-MP3 Encoding PTCDS7UI www.PyleAudio.com...
- Page 2 Location of controls 1) Dial pointer 2) LCD display 3) Functions switch 4) Power LED indicator 5) Power on/off, volume up/down knob 6) MP3 folder up button 7) Source button 8) Extra bass on/off button 9) Record button 10) CD door 11) SD/MMC card slot 12) Radio band selector switch 13) FM stereo LED indicator...
- Page 3 Listening to radio Manual tuning 1. Select the desired band by Radio band selector (12) (AM or FM or FM-Stereo). 2. Tune to the required station by turning the Tuning knob (14). 3. Adjust volume knob (5) to the desire volume level. FM &...
- Page 4 Remark:- - In that case of no name had been assigned for the track, “ none “ or “ unknown “ is being displayed” on LCD display (2). - The system support English alphabet and numeral only for ID3 text Mp3 track format requirement:- Mp3 bit rate : 32 kbps~256 kbps.
- Page 5 1. Set in CD/USB/SD mode & stop the cd/mp3 disc playback. 2. Press the “Program” button, “ PROG “ indicator will appear on LCD display (2). Moreover, it will indicate program no. and digits for track no. to be programmed. 3.
- Page 6 Remark Make sure the direction is correct when inserting the tape into the system. There is some searching noise can be heard and the system cannot perform normal playback function during fast forward mode. This is recommended to take out the cassette tape from the system every times after listening and don’t leave the cassette tape inside the system when not under playback mode.
- Page 7 II) Recording the complete CD Place a CD with the printed side facing up inside the CD tray & then close the CD door. After disc search has been completed, press the “ Record “ button (9) – note: for recording whole CD, do not press “...
- Page 8 I) Copying 1 track (assume copy from SD card to USB mode) Perform normal playback of the track at SD/MMC card you want to copy, Press “ Record “ button (9) during the playback of the desire track, unit will display “ “...
- Page 9 Remote control transmitter Battery installation (battery not provided) The infra-red transmitter requires 2 pcs AAA size battery for operation Button description 1) Find In MP3 playback, press to active file/folder name search function. 2) Info In MP3 playback mode : press to active id3 function In Phono mode : press to select encoding bitrate 3) Rec Press to active encoding or recording function...
