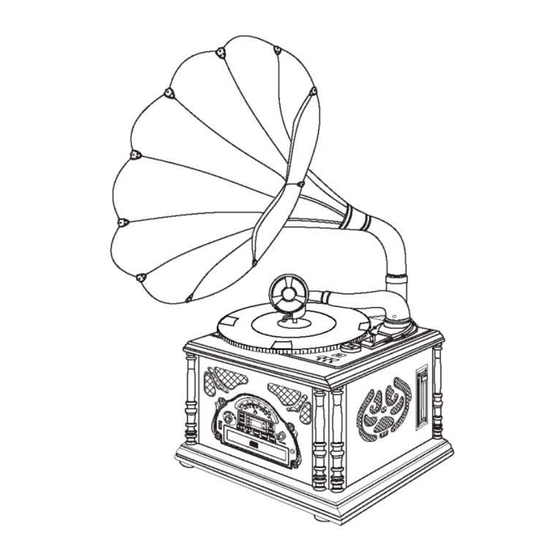

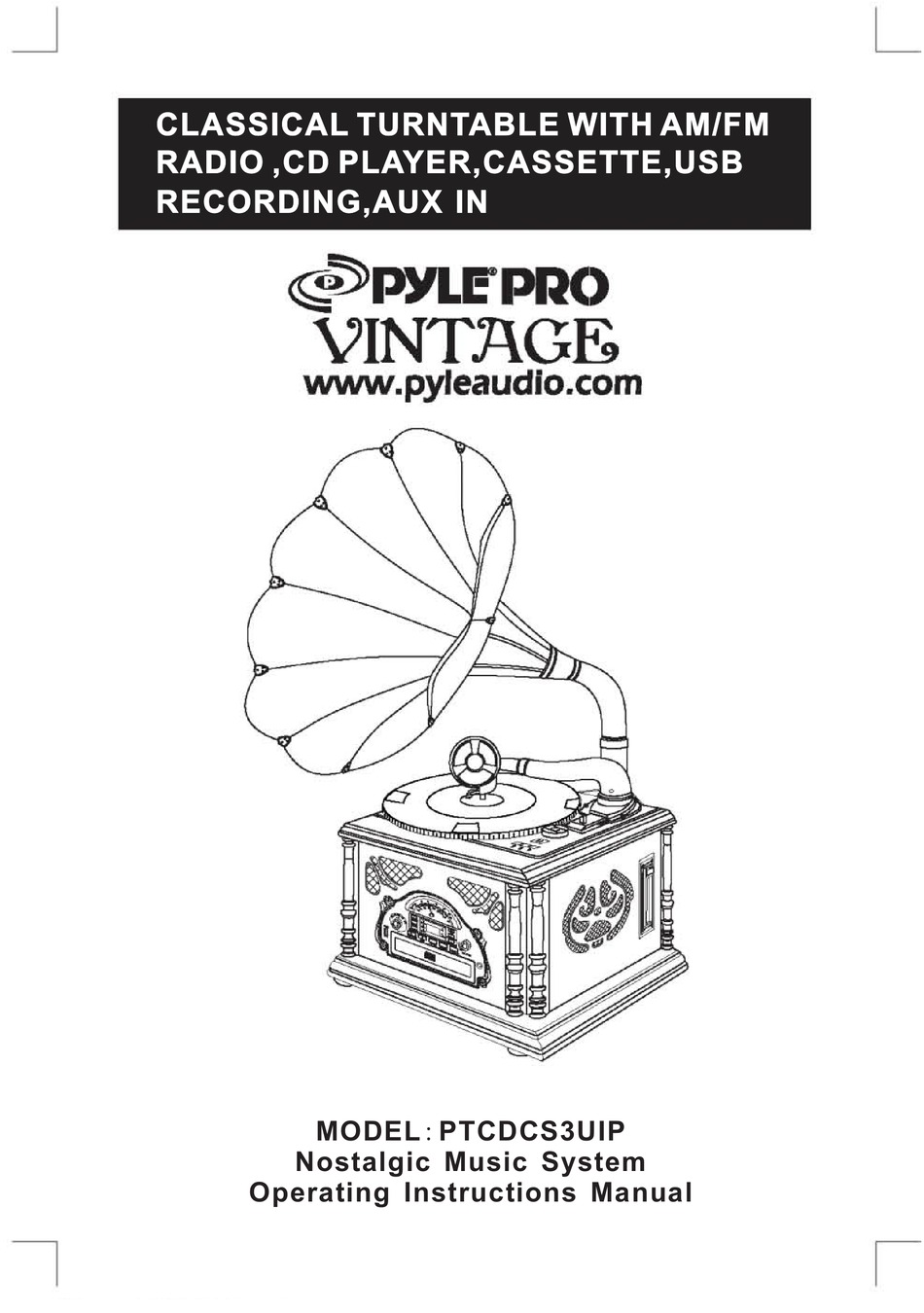

- Page 1 CLASSICAL TURNTABLE WITH AM/FM RADIO ,CD PLAYER,CASSETTE,USB RECORDING,AUX IN MODEL: PTCDCS3UIP Nostalgic Music System Operating Instructions Manual...
-
Page 2: Important Safety Instructions
CAUTION TO PREVENT FIRE OR SHOCK HAZARD,DO NOT USE THIS PLUG WITH ANEXTENSION CORD,RECEP TACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.TO PREVENT FIRE OR SHOCK HAZARD,DONOT EXPOSE THISAPPLINACE TO RAIN OR MOISTURE. IMPORTANT SAFETY INSTRUCTIONS 1.) Read these instructions. -
Page 3: Important Notes
IMPORTANT NOTES Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric heaters, on top of other stereo equipment that radiates too much heat, places lacking ventilation or dusty areas, places subject to constant vibration and/or humid or moist areas. Do not attempt to clean this unit with chemical solvents as this might damage the finish. -
Page 4: Power Source
POWER SOURCE This product is designed to operate on 120V 60Hz AC only. Attempting to operate this system from any other power source may cause damage to the system, and such damage is not covered by your warranty. NOTE: You will note that this system is equipped with domestic standard AC power 2-pin plug. -
Page 5: Location Of Controls And Indicators
LOCATION OF CONTROLS AND INDICATORS FRONT PANEL 18 28 16) SKIP REV. Control Button. 1) Turntable. 17) SKIP FWD. Control Button. 2) Stylus. 18) OPEN/CLOSE Control Button. 3) Speakers. 19) PHONO Speed Selector. 4) Tuning Control Knob. 20) CD Track Number Display. 5) FM Dial Scale. -
Page 6: Remote Control Operation
BACK PANEL PHONOGRAPH AUX IN 31.) Antenna Jack/FM Antenna. 34.) Turntable. 32.) AUX IN (Audio input). 35.) 45 RPM Adapter. 33.) AC Power Cord. 36.) Speed Selector(33/45/78 RPM). 37.) Tone Arm with Stylus. 38.) Speed Display. 39.) PHONO Power Switch. REMOTE CONTROL OPERATION: R1) OPEN/CLOSE. -
Page 7: Parts List
PARTS LIST A) Horn Speaker (1pc) B) U-type Bracket (1pc) C) Middle Tube (1pc) D) Bottom Tube (1pc) D) Screw A (2pc) (KM5*8mm) F) Screw B (2pc) (PM4*16mm) G) Screw C (3pc) (BA4*18mm) G) Screw D (4pc) (KA3*14mm) Important note: Assemble this unit on clean and smooth surface, so as not to scratch or damage the surface of the unit. - Page 8 Rotate three screws C(G) clockwise into the holes.Tighten with a Philip s head screwdriver. 5.) Look at Fig6. It shows the assermbled PTCDCS3UIP host cabinet apparatus. Fig5...
- Page 9 PTCDCS3UIP host cabinet as shown. Rotate clockwise four screws D(H) into the holes on the sides and one screw B(F) inot the middle and tighten. 8.) Look at Fig8. It shows the assembled PTCDCS3UIP host cabinet with the U-type bracket (B) apparatus. Fig7 Fig8 9.) Look at Fig9.
-
Page 10: Radio Operation
OPERATING INSTRUCTIONS RADIO OPERATION Rotate the OFF/VOLUME control clockwise until a ‘click’ is heard and set the volume to a low level. 2) Set the Function selector( AM/FM/PH/CD/USB/TA ) to AM or FM position. Rotate the TUNING control to tune the desired radio station. If you tune to an FM stereo station, the FM ST. -
Page 11: Usb Operation
Press the OPEN/CLOSE button again to close the CD drawer. The disc will spin for a few seconds while the player is reading the disc, then the disc stops spinning and start to play the first track on the disc. The playing track number, Cd and the folder name will be shown on the screen 5 seconds in turn during the playback. -
Page 12: Programmed Playback
PROGRAMMED PLAYBACK This feature allows you to program up to 20 CD tracks and 99 MP3 tracks on a disc for playback in any desired order. Press the PROGRAM button to enter the Program mode. The program number briefly shows ‘ P01', the Program indicator flashes. Press SKIP REV. -
Page 13: Cassette Operation
CASSETTE OPERATION Note: Before inserting a tape in the player be sure that there is no excess slack in the cassette that could become jammed in the mechanism. Refer to the Care and Maintenance section for instructions on removing excess slack from the cassette. - Page 14 Make sure that you have removed the stylus cover from the stylus and have released the Tone Arm Lock that secured the tone arm to the tone arm rest. Set the turntable Speed Selector to the appropriate speed, 33, 45, or 78 RPM.
- Page 15 Operate external device as usual and through the speaker of unit can hear the songs from the external device. PTCDCS3UIP external device A AUX IN RECORDING tracks from CD/MP3/PHONO/CASSTTE to USB CD RECORDING Rotate the VOLUME control clockwise and set the volume to a low level.
-
Page 16: Program Recording
start to record the playing track into USB, the track will be re-start play from the beginning of the selected track. ’rEC’ will be shown on the display and ‘rEC’ indicator flashes. Press STOP button will cancel the record function. Press STOP button once will stop RECORD mode, and ‘rEC’... -
Page 17: Care And Maintenance
CASSETTE RECORDING Rotate the OFF/VOLUME control clockwise until a ‘click’ is heard, and set the Volume to a low level. Set the function selector(AM/FM/PH/CD/USB/TA) to TA position. Plug U Disk into USB socket. Place the record on the turntable center and play the record. -
Page 18: Compact Disc Care
COMPACT DISC CARE CARE AND MAINTENANCE To remove a disc from its storage case, press down on the centre of the case and lift the disc out, holding it carefully by the edges. Fingerprints and dust should be carefully wiped off the discs recorded surface with a soft cloth.
