Before connecting, operating or adjusting this product, please read the
instructions completely. Please keep this manual for future reference.
Operations in these instructions are described mainly using remote
control, but you can do the operations on the main unit if the controls
are the same.
PC

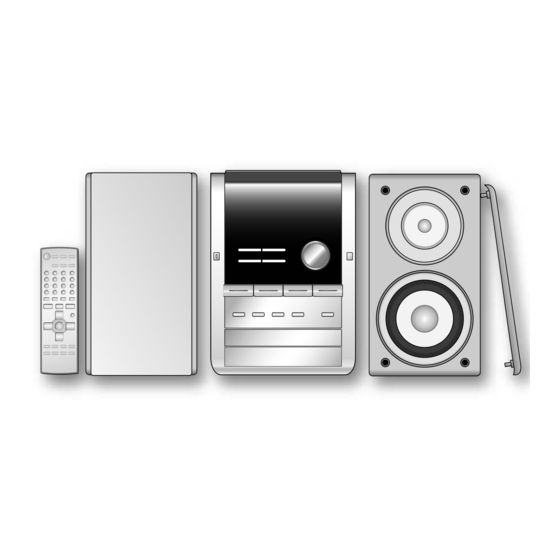

Operating Instructions

CD Stereo System
Model No.

Table of contents

Supplied accessories....................... 2
INSTRUCTIONS ............................... 3
Product Service ................................ 3
Listening caution.............................. 3
Getting started .................................. 4
Overview of controls ........................ 6
CDs and MP3 - Play ......................... 7
Cassette tape - Play......................... 9
Cassette tape - Record ................... 10
Radio - Tune ..................................... 11
Timer.................................................. 12
Sound Adjustment............................ 13
Troubleshooting guide..................... 14
Specifications ................................... 15
Maintenance...................................... 15
Warranty ............................................ 16
RQT7968-Y

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-PM21 and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic SC-PM21

Summary of Contents for Panasonic SC-PM21

  • Page 1: Table Of Contents

    Operating Instructions CD Stereo System SC-PM21 Before connecting, operating or adjusting this product, please read the Model No. instructions completely. Please keep this manual for future reference. Operations in these instructions are described mainly using remote Table of contents control, but you can do the operations on the main unit if the controls are the same.
