Motorola DS3578 Quick Start Manual

DS3578 with FIPS

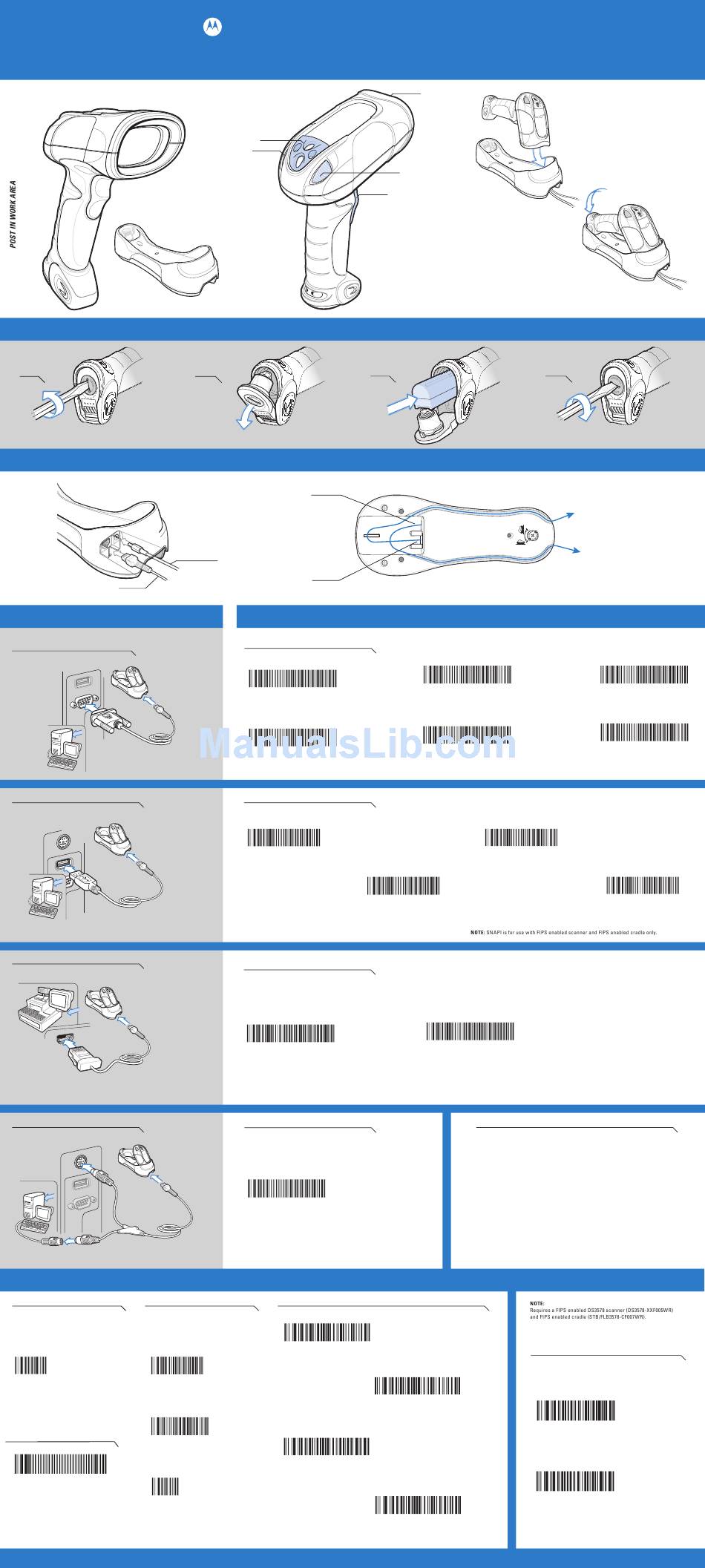

Quick Start Guide
See Product Reference Guide for detailed information
1
Or use coin
Host

STEP 3 - CONNECT HOST INTERFACE

NOTE: Cables may vary depending on configuration
RS-232
USB
IBM 46XX
Keyboard Wedge
Set Defaults
Note: The scanner connection to the cradle
is dissolved when Set Defaults is scanned.
SET DEFAULTS
Unpairing/Disconnection
UNPAIR/DISCONNECT
1
2

STEP 1 - BATTERY INSERTION/REMOVAL

2

STEP 2 - CRADLE CABLE CONNECTION

Power
RS-232
Scan ONE of the bar codes below
STANDARD RS-232
ICL RS-232
USB
Scan ONE of the bar codes below
HID KEYBOARD EMULATION
IBM 46XX
Scan ONE of the bar codes below
PORT 5B
Keyboard Wedge
Scan bar codes below
IBM PC/AT and IBM PC COMPATIBLE

PROGRAMMING BAR CODES

Carriage Return/Line Feed
SCAN OPTIONS
<DATA><SUFFIX>
ENTER
3
2
4
1 Tether Plate
2 LED Indicators
3 Scan Window
4 Scan Trigger
3
Power
Host

STEP 4 - SET UP INTERFACE (Scan Host Bar Codes)

IBM HAND-HELD USB
Radio Communications Host Types
CRADLE HOST
SERIAL PORT PROFILE (SLAVE)
BLUETOOTH KEYBOARD EMULATION (HID SLAVE)
SERIAL PORT PROFILE (MASTER)
Cradle Insertion
Caution: DS3478 cordless scanners are incompatible with STB3508/3578 cradles.
DS3578 cordless scanners are incompatible with STB3408/3478 cradles.
4
NIXDORF RS-232 MODE B
FUJITSU RS-232
SNAPI WITH IMAGING
(For use with hands-free base only)
PORT 9B
123SCAN2
123Scan is an easy-to-use, PC-based
2
software tool that enables rapid and
easy customized setup via a bar code or
USB cable. For more information, visit:
http://www.motorola.com/123Scan
FIPS
Scan ONE
Enable FIPS
*Disable FIPS
Or use coin
Connect to
Appropriate Host
Power
(if required)
NIXDORF RS-232 MODE A
OPOS/JPOS
SNAPI WITHOUT IMAGING
(For use with hands-free base only)
2
FIPS MODE
of the bar codes below
