Owner's Manual
Video Cassette Recorder
CMWV405

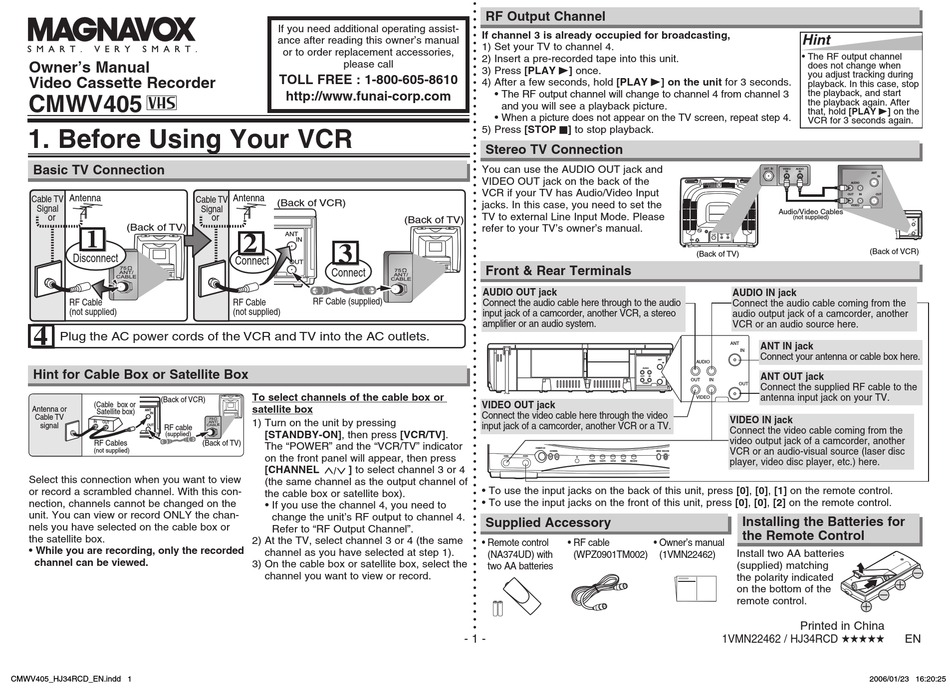

1. Before Using Your VCR
Basic TV Connection
Antenna
Cable TV
Cable TV
Signal
Signal
or
(Back of TV)
Disconnect
RF Cable
(not supplied)
4
Plug the AC power cords of the VCR and TV into the AC outlets.
Hint for Cable Box or Satellite Box
(Back of VCR)
(Cable box or
Antenna or
Satellite box)
ANT
IN
Cable TV
IN
OUT
signal
OUT
RF cable
(supplied)
RF Cables
(Back of TV)
(not supplied)
Select this connection when you want to view
Connection B
(Back of VCR)
or record a scrambled channel. With this con-
ANT
(Cable box or
IN
nection, channels cannot be changed on the
Satellite box)
Cable
OUT
unit. You can view or record ONLY the chan-
Signal
IN
OUT
nels you have selected on the cable box or
(Back of TV)
RF Cable
RF Cable
(supplied)
the satellite box.
• While you are recording, only the recorded
channel can be viewed.
If you need additional operating assist-
ance after reading this owner's manual
or to order replacement accessories,
please call
TOLL FREE : 1-800-605-8610
http://www.funai-corp.com
Antenna
(Back of VCR)
or
2
ANT
IN
3
Connect
OUT
Connect
RF Cable (supplied)
RF Cable
(not supplied)
To select channels of the cable box or
satellite box
) Turn on the unit by pressing
E
[STANDBY-ON], then press [VCR/TV].
The "POWER" and the "VCR/TV" indicator
on the front panel will appear, then press
[CHANNEL
] to select channel 3 or 4
(the same channel as the output channel of
the cable box or satellite box).
• If you use the channel 4, you need to
E
change the unit's RF output to channel 4.
Refer to "RF Output Channel".
2) At the TV, select channel 3 or 4 (the same
channel as you have selected at step ).
3) On the cable box or satellite box, select the
channel you want to view or record.
RF Output Channel
If channel 3 is already occupied for broadcasting,
) Set your TV to channel 4.
2) Insert a pre-recorded tape into this unit.
3) Press [PLAY B] once.
4) After a few seconds, hold [PLAY B] on the unit for 3 seconds.
• The RF output channel will change to channel 4 from channel 3
and you will see a playback picture.
• When a picture does not appear on the TV screen, repeat step 4.
5) Press [STOP C] to stop playback.
Stereo TV Connection
You can use the AUDIO OUT jack and
VIDEO OUT jack on the back of the
VCR if your TV has Audio/Video Input
jacks. In this case, you need to set the
TV to external Line Input Mode. Please
(Back of TV)
refer to your TV's owner's manual.
Front & Rear Terminals
AUDIO OUT jack
Connect the audio cable here through to the audio
input jack of a camcorder, another VCR, a stereo
amplifier or an audio system.
VIDEO OUT jack
Connect the video cable here through the video
input jack of a camcorder, another VCR or a TV.
STANDBY-ON
CHANNEL
VIDEO
AUDIO
IR
• To use the input jacks on the back of this unit, press [0], [0], [1] on the remote control.
• To use the input jacks on the front of this unit, press [0], [0], [2] on the remote control.
Supplied Accessory
• Remote control
• RF cable
(NA374UD) with
(WPZ090TM002)
two AA batteries
- -
VIDEO
AUDIO
IN
IN
(Back of TV)
AUDIO IN jack
Connect the audio cable coming from the
audio output jack of a camcorder, another
VCR or an audio source here.
ANT IN jack
ANT
IN
Connect your antenna or cable box here.
ANT
AUDIO
IN
AUDIO
ANT OUT jack
OUT
IN
OUT
OUT
IN
Connect the supplied RF cable to the
OUT
VIDEO
antenna input jack on your TV.
VIDEO
VIDEO IN jack
Connect the video cable coming from the
video output jack of a camcorder, another
VCR or an audio-visual source (laser disc
REW
PLAY
F.FWD
STOP/EJECT
MENU
RECORD
player, video disc player, etc.) here.
POWER
VCR/TV
CST.IN
TIMER
RECORD
Installing the Batteries for
the Remote Control
• Owner's manual
Install two AA batteries
(VMN22462)
(supplied) matching
the polarity indicated
on the bottom of the
remote control.
VMN22462 / HJ34RCD ★★★★★
Hint
• The RF output channel
does not change when
you adjust tracking during
playback. In this case, stop
the playback, and start
the playback again. After
that, hold [PLAY B] on the
VCR for 3 seconds again.
VIDEO
AUDIO
IN
IN
ANT
IN
AUDIO
OUT
IN
OUT
VIDEO
Audio/Video Cables
(not supplied)
ANT
IN
OUT
(Back of VCR)
Printed in China
EN
