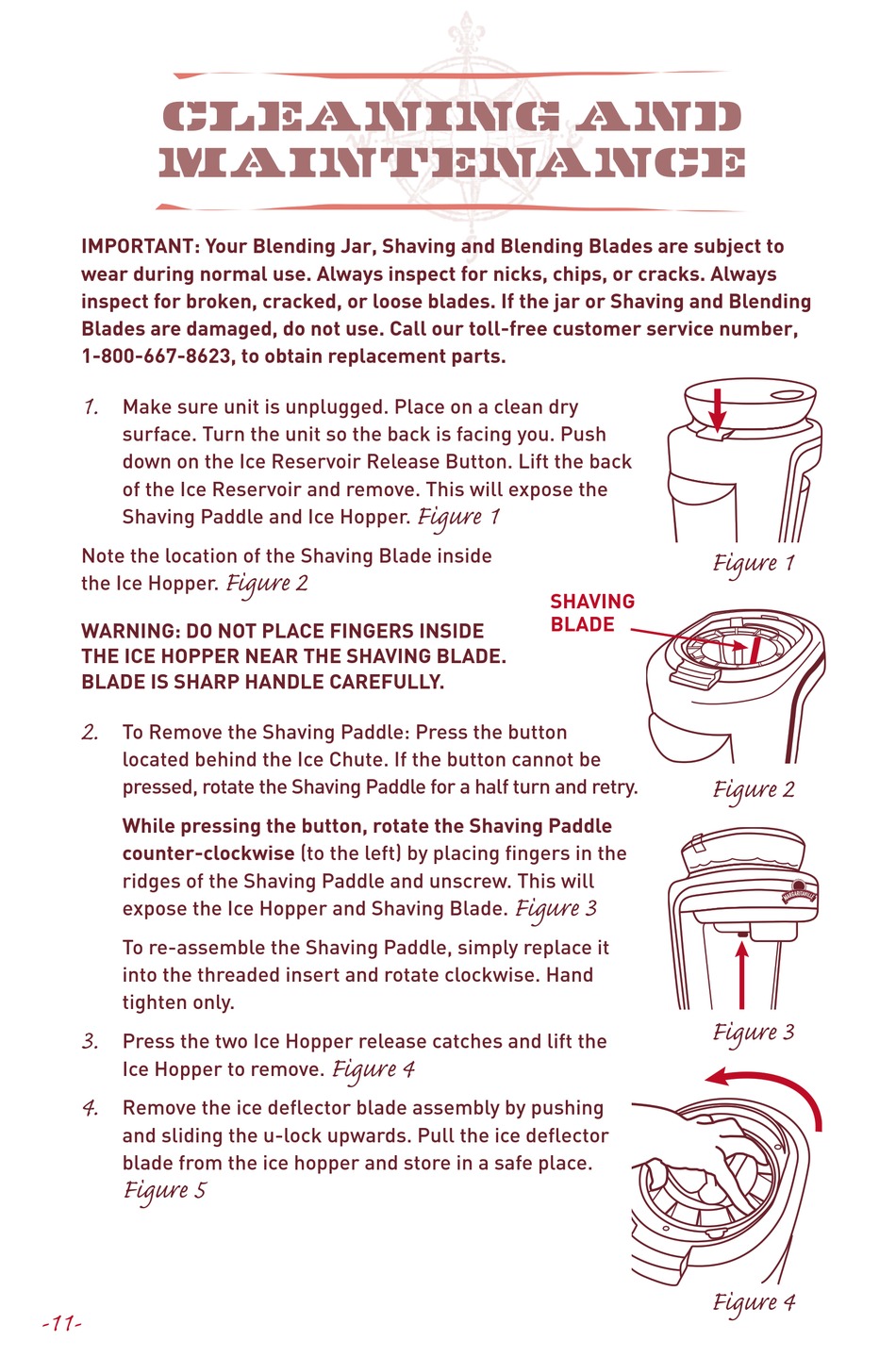

Cleaning and

Maintenance

IMPORTANT: Your Blending Jar, Shaving and Blending Blades are subject to
wear during normal use. Always inspect for nicks, chips, or cracks. Always
inspect for broken, cracked, or loose blades. If the jar or Shaving and Blending
Blades are damaged, do not use. Call our toll-free customer service number,
1-800-667-8623, to obtain replacement parts.
1.
Make sure unit is unplugged. Place on a clean dry
surface. Turn the unit so the back is facing you. Push
down on the Ice Reservoir Release Button. Lift the back
of the Ice Reservoir and remove. This will expose the
Shaving Paddle and Ice Hopper.
Note the location of the Shaving Blade inside
the Ice Hopper.
WARNING: DO NOT PLACE FINGERS INSIDE
THE ICE HOPPER NEAR THE SHAVING BLADE.
BLADE IS SHARP HANDLE CAREFULLY.
2.
To Remove the Shaving Paddle: Press the button
located behind the Ice Chute. If the button cannot be
pressed, rotate the Shaving Paddle for a half turn and retry.
While pressing the button, rotate the Shaving Paddle
counter-clockwise (to the left) by placing fingers in the
ridges of the Shaving Paddle and unscrew. This will
expose the Ice Hopper and Shaving Blade.
To re-assemble the Shaving Paddle, simply replace it
into the threaded insert and rotate clockwise. Hand
tighten only.
3.
Press the two Ice Hopper release catches and lift the
Ice Hopper to remove.
4.
Remove the ice deflector blade assembly by pushing
and sliding the u-lock upwards. Pull the ice deflector
blade from the ice hopper and store in a safe place.
Figure 5
-11-
Figure 2
Figure 4
Figure 1
SHAVING
BLADE
Figure 3
Figure 1
Figure 2
Figure 3
Figure 4
