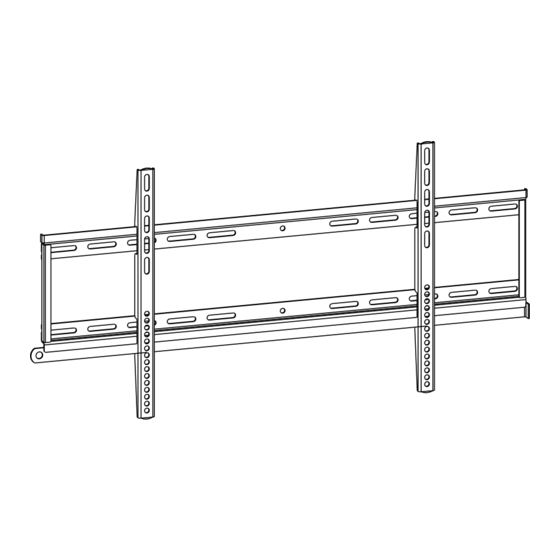

- Page 1 Installation Instructions Flat Wall Mount CAUTION: DO NOT EXCEED THE MAXIMUM STATED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! 80” 400x200 / 400x400 SLT-800 70kg 600x400 / 800x400...
- Page 2 NOTE: Please read the entire instruction manual before you start installation and assembly WArNINg Do not commence installation until you have read and understood the instructions ➔ and warnings contained in this installation sheet. If you have any questions regarding any of the instructions or warnings, please contact your place of purchase.
- Page 3 Component Checklist IMPOrTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your local distributor for assistance. Adapter bracket (x2) Wall plate (x1) Safety bar (x1) M4x12 (x4) M4x25 (x4) M5x12 (x4)
- Page 4 1a. Mounting on Timber Stud Walls Find and mark the Drill pilot exact location of holes. mounting holes. Screw the wall plate onto the wall. WArNINg Make sure that mounting screws are anchored into the centre of the studs. ➔ Use of a stud finder is highly recommended.
- Page 5 1b: Mounting on Solid Brick and Concrete Block Mark the exact Drill pilot location of holes. mounting holes. Screw the wall plate onto the wall. WArNINg When installing wall mounts on cinder block, verify the actual concrete thickness ➔ is at least 35mm for using the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 25mm minimum from the side of the block.
- Page 6 2. Attach Adapter Brackets Top of TV Position the adapter brackets as close as possible to the middle of the screen. ➔ Screw the adapter brackets onto the TV. ➔ Tighten all screws, but do not over tighten.
- Page 7 3. Hang TV on the Wall Plate Make sure adapter brackets have been securely hooked onto the wall plate before releasing the TV.
- Page 8 A padlock can be used in the safety bar to help prevent theft of your TV. Insert the safety bar to secure the rails. Note: the padlock is not included. Maintenance Check that the bracket is secure and safe to use at regular intervals ➔...
