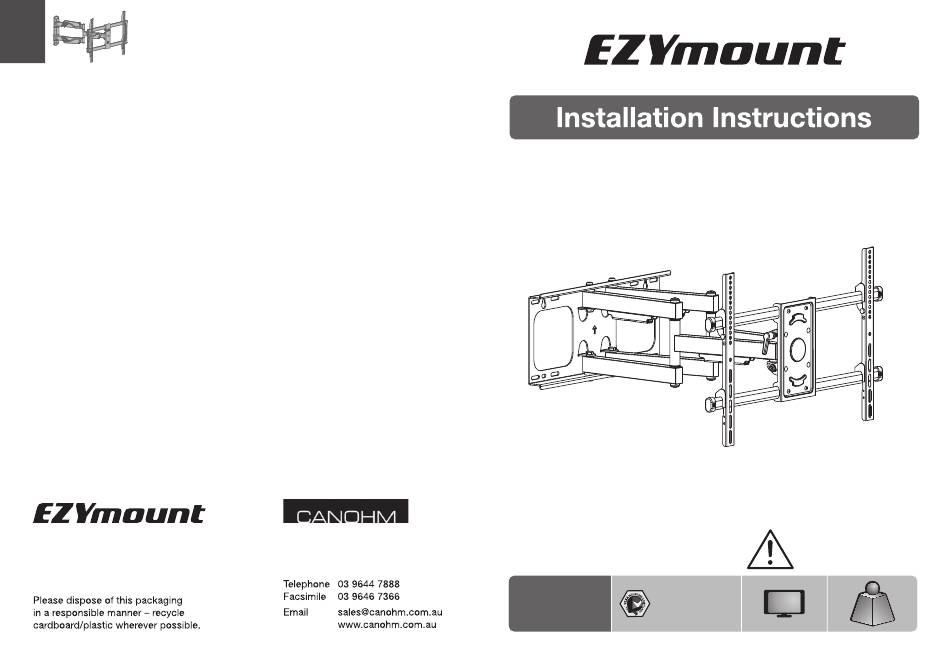

- Page 1 Full Motion LED, LCD TV Wall Mount CAUTION: DO NOT EXCEED 4/30 Prohasky Street RATED LISTED WEIGHT. SERIOUS Port Melbourne, Victoria INJURY OR PROPERTY DAMAGE 3207 Australia MAY OCCUR! 200x200/300x300 80" VLM-5400 400x200/400x400 65kg 65kg 600x400...
-
Page 2: Component Checklist
Component Checklist NOTE: Read the entire instruction manual before you start installation and assembly. IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone your local distributor for a replacement. WARNING •... - Page 3 1a. For Wood Stud Wall Mounting 1b. For Solid Brick and Concrete Mounting 95mm 95mm 90mm 90mm (3.7") (3.7") (3.5") (3.5") ø 12mm ø 6mm (ø 1 /2") (ø 1/4") W-B W-A Mark the exact location of mounting holes Find and mark the exact location of mounting holes Drill pilot holes Drill pilot holes...
- Page 4 2.Installing the Adapter Brackets 2-2 For Recessed Back Screens or to Access A/V Inputs 2-1 For Flat Back Screens Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen. · Position the adapter brackets as close as possible to the centre of the TV. ·...
- Page 5 3. Hooking the TV onto the Wall Mount 4 Cable Management Run the cables through the cable clip. Note: Leave slack in the cable for cantilever arm movement. 5 Adjustment Nuts for level adjustment fastener Handle for tilt adjustment · Lift the TV with brackets attached and hook the brackets over the sliders.
- Page 6 120° +15° -5° Adjust to the desired position or tilt.
