- Page 1 NEA SMART ROOM CONTROL UNIT D Installation and operating manual...
-
Page 2: Table Of Contents
CONTENT Safety More information on the Nea Smart control system and all Used symbols documentation available for download can be found at Intended use General safety warnings www.rehau.com/neasmart Versions Technical data Compliance Installation Box contents Installation Operation Overview and displays Operation Commissioning (incl. -
Page 3: Safety
There is a risk to life and limb. Intended use The Nea Smart room control unit D (in the following abbreviated as room control unit D) is a room control unit for the base station Nea Smart 24 V. The device is intended - for the control of the base station Nea Smart 24 V. -
Page 4: Versions
86 x 86 x 26,5 mm Target temp. setting range 5 bis 30°C Target temp. resolution 0.2 K Actual temp. measuring 0 bis 40°C (int. sensor) range Measuring accuracy of ±0.3 K internal NTC Tab. 2-1 Technical data Nea Smart room control unit D... -
Page 5: Installation
3 INSTALLATION Box contents Installation ~30cm ~150cm Nea Smart remote sensor Accessories: Nea Smart remote sensor Fig. 3-1 Box contents Fig. 3-2 Notes on the mounting location of the room control unit... - Page 6 5b 5b Ø 3,5 mm Fuse Pairing Power Pump Boiler Cool Master Fig. 3-3 Installation and connection of the room control unit...
-
Page 7: Operation

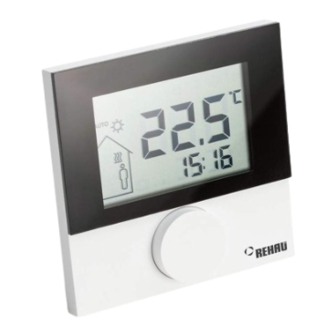

4 OPERATION Overview and displays Display with function indications Room temperature Time Control knob Fig. 4-1 Front view of the Nea Smart room control unit D Symbol Meaning Symbol Meaning Menu "Functions" active Night mode active Menu "Parameters" active Condensation detected, cooling deactivated Menu "Service"... -
Page 8: Operation
1. Activate the pairing function at the base station for the desired The following lifestyle functions are available to you; you can find heating zone (see manual base station Nea Smart 24 V). further information in the table “Functions” on the next page. -
Page 9: Lifestyle Functions
Lifestyle functions Overview parameters This menu is needed only for basic setup. Lifestyle function Symbol Steps - Press the control knob. Party - Activate by pressing. - Select the menu “Parameters” and activate it by pressing again. Deactivates the - Set the duration in hours (hh) temperature setback for - Confirm your entry by XX hours... -
Page 10: Parameters
- Confirm by pressing. Floor heating - Activate and select the minimum temperature desired comfort tempera- (only in connection ture with Nea remote (1.0...6.0 ≈ 18 °C...28 °C) sensor) - Confirm by pressing. - Activate and set the desired Setback temperature temperature. -
Page 11: Troubleshooting, Cleaning And Decommissioning
5 TROUBLESHOOTING, CLEANING AND DECOMMISSIONING Troubleshooting Cleaning Error messages are displayed by, the corresponding symbols in the Only use a dry and solvent-free, soft cloth for cleaning. display flashing. Disposal Display Meaning Handling The room control unit must not be disposed with domestic - Room control unit paired. - Page 12 Guangzhou, +86 20 87760343, guangzhou@rehau.com Beijing, +86 10 64282956, beijing@rehau.com Shanghai, +86 21 63551155, shanghai@ rehau.com Chengdu, +86 28 86283218, chengdu@rehau.com Xian, +86 29 68597000, xian@rehau.com Shenyang, +86 24 22876807, shenyang@rehau.com QingDao, +86 Bogota, +57 1 898 528687, bogota@rehau.com Praha, +420 272 190111, praha@rehau.com...
