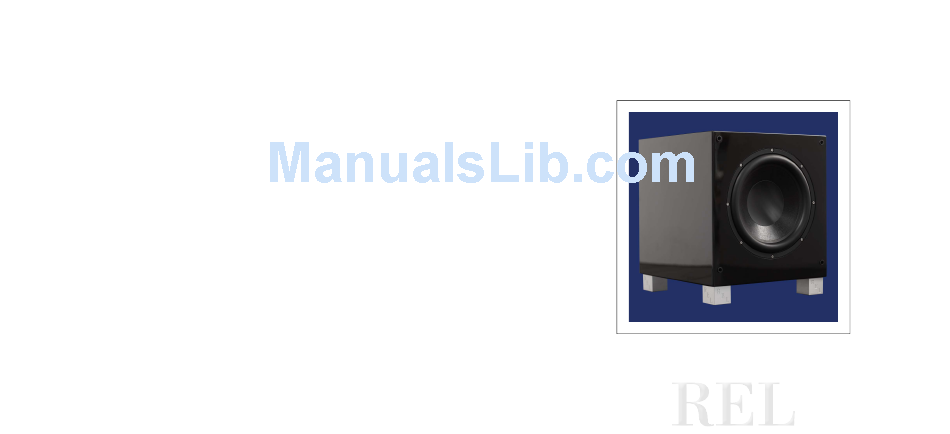

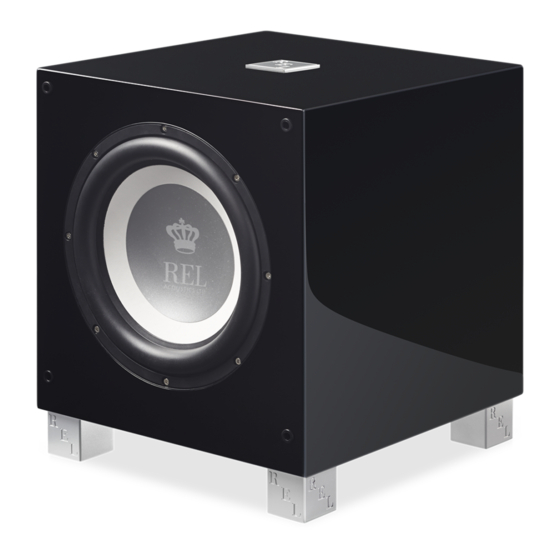

  • Page 2 Operating Instructions for the SerieT/i Sub-Bass Systems REL Acoustics Limited North Road, Bridgend industrial Estate . Bridgend, CF31 3TP . United Kingdom Telephone: +44 (0)1 656 768 777 . Fax: +44 (0) 1 656 766 093 Web: www.rel.net...

  • Page 3: Table Of Contents

    Caution Marking Explanation Table of Contents Important Safety Instructions ........................... 3 Informations Importantes Relatives a la Securite .................... 6 Welcome to the REL Family ..........................8 REL Serie S Rear Panel Connection Legend ..................... 9 The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated dangerous voltage within the product’s enclosure that may Connecting Up ...............................

  • Page 4: Important Safety Instructions

    Warning / Avertissement Important Safety Instructions To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Cet article est lourd. Pour éviter tout risque de blessure, prendre soin lors de la manipulation. 1 Read all of these instructions.

  • Page 5: Informations Importantes Relatives A La Securite

    Attention Explication Marquage Informations Importantes Relatives a la Securite 1 Lisez attentivement ces instructions. 2 Conservez ces instructions. 3 Respectez tous les avertissements. 4 Suivez toutes les instructions. L’éclair avec le symbole de pointe de flèche dans un triangle équilatéral est destiné à alerter l’ 5 Ne pas utiliser cet appareil près de l’eau.

  • Page 6: Welcome To The Rel Family

    Sécurité Design Welcome to the REL Family Cet appareil est livré avec un cordon amovible cordon. Pour le fonctionnement d’un fusible de 230V 1.6A/ T/5i, 2A/ T/7i, 3.15A/ T/9i est montée dans la douille, pour le fonctionnement de 120V un fusible de 3.15A/ Thank you, your new SerieT/i is designed to set a new standard for excellence in its category.
  • Page 7 REL Serie T/i Rear Panel Connection Legend 1 Wireless Interface Socket: Used to connect ARROW™ wireless system. 2 Phase: Used to set phase 0-180 degrees. 3 Volume Control for HI/LOW Level input: Use to adjust output when using either HI Level or LOW Level input.

  • Page 8: Connecting Up

    speakers. Red to amplifier main right speaker red terminal, yellow to amplifier main left speaker red terminal Connecting Up and black to amplifier main speaker black terminal, right or left but not both. Plug the Neutrik® Speakon® Always switch off your system before disconnecting any wires. plug into the HI LEVEL Speakon®...

  • Page 9: Rel Set-Up Made Simple

    • The standard high-level hook up procedure is: attach the red wire to the amplifier’s right positive speaker REL Set-Up Made Simple output terminal; attach the yellow wire to the amplifier’s left positive speaker output terminal; attach the black wire to whichever of the amplifier’s ground output terminals is convenient; plug the Speakon® REL products are not traditional subwoofers, but true Sub-Bass Systems.
  • Page 10 • If connecting RELs to Mono Bloc amplifers we strongly advocate using (2) RELs, one for each amplifier. • If connecting a single REL as a dedicated center channel sub, please consider connecting to the rear of the Connect the black wire of each REL to the negative speaker terminal of the corresponding amplifier speaker, rather than routing the REL High Level cable all the way back to the amplifier.
  • Page 11 Low-level connection (via phono connectors) is always an option if high-level connection is not possible. 4 Placement: The next step is to determine precisely how far from the corner the sub should be placed to When connecting to the low-level inputs in a system in which high-level connection is not possible, such as achieve the most efficient output, as well as the lowest frequency extension.

  • Page 12: Technical

    Theatre Applications Technical For Dolby Digital AC3 or other 5.1 theatre systems, once the standard set-up for two-channel outlined above is complete, the LFE output from the processor or receiver should be connected to the .1/LFE INPUT and The SerieT/i models use an unusual method of bass loading. They are designed to operate below normal appropriate volume adjustments made using the .1/LFE level control.

  • Page 13: T/9I Specifications

    A thermal overload device is fitted to all SerieT/i Sub-Bass Systems. If the unit is deliberately overdriven this T/9i Specifications device will sense the temperature rise and cut the output; recovery time is approximately five minutes. If this happens, it is a warning that the unit is being overdriven and the volume level control should be reduced Type: Passive Radiator, front-firing active woofer, down-firing passive radiator to a safe level.

  • Page 14: T/7I Specifications

    Mains Lead: Mains Lead: Neutrik Speakon Interconnect: Yes (10 Meters Nominal) Neutrik Speakon Interconnect: Yes (10 Meters Nominal) Users Manual: Users Manual: In the interest of product development, REL Acoustics Limited reserve the right to vary these specifications without notice.
  • Page 15 Notes...
