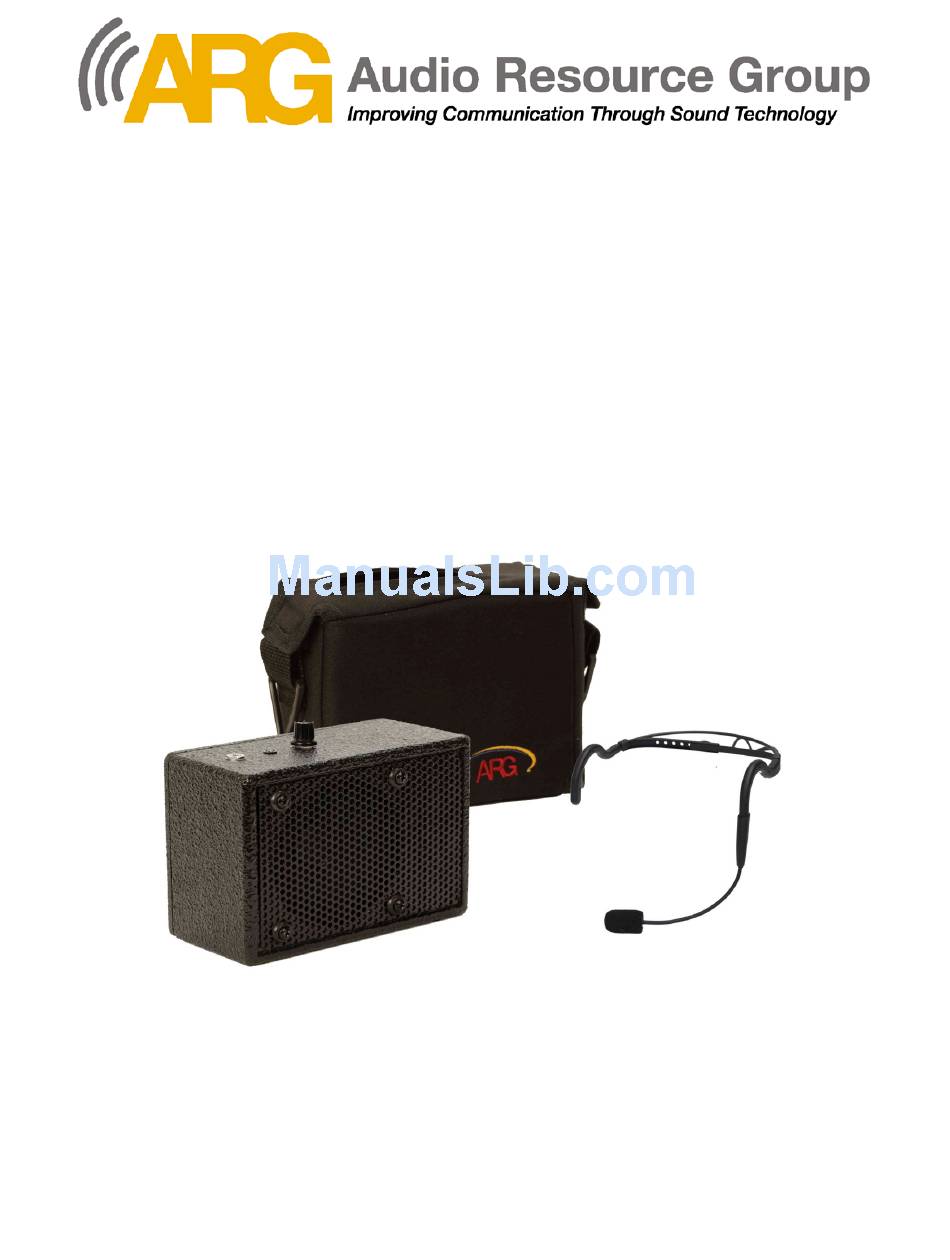

- Page 1 20 Watt Portable Amplifier Manual and User Guide User Guide Part # ARG-OM035 Audio Resource Group, Inc. • 405 Main Ave W, Unit 4G • West Fargo, ND 58078 • ©2013 Audio Resource Group, Inc. • All Rights Reserved •...
- Page 2 Table of Contents Safety Information System Contents System Features System Controls Quick Use Guide Troubleshooting Guide Technical Specifications Warranty Information Audio Resource Group, Inc. • 405 Main Ave W, Unit 4G • West Fargo, ND 58078 • ©2014 Audio Resource Group, Inc. Page 2 All Rights Reserved •...
- Page 3 DO NOT DISPOSE ELECTRONICS IN THE HOUSEHOLD TRASH! Help ARG protect our environment by locating an electronics recycling center. Audio Resource Group, Inc. • 405 Main Ave W, Unit 4G • West Fargo, ND 58078 • ©2014 Audio Resource Group, Inc.
- Page 4 Unpacking the box – Inside the box of your new VoiceAmp® Tour you will find the following items. 1. The VoiceAmp® Tour Portable Amplifier 2. The battery charger (ARG-PS004) 3. A Padded Waist Pack (ARG-CC24) 4. A shoulder strap (ARG-SS1) 5. A lightweight headband microphone (ARG-MP14) 6. The user manual (ARG-OM035) Optional Accessories 1.
- Page 5 1. Plug in the battery charger to charge the battery: FULLY charge the on-board lithium battery pack before using. To charge the battery, plug the ARG-PS004 battery charger into the power charging jack located on the side of the amplifier. Plug the other end into a 110-125V AC outlet. The power indicator LED on the top of the amplifier will illuminate RED while in the charge cycle;...
- Page 6 4. Connect the headband microphone: Plug the microphone into the MIC/Line Input Jack. Adjust the headpiece to position on your head with the flexible microphone one inch or less from your mouth. 5. Power-up and use the VoiceAmp® Tour: a. Rotate the ON/OFF/Audio Level Control clockwise to turn unit on. You will hear a click and the power indicator LED will illuminate GREEN.
- Page 7 VoiceAmp® Tour Technical Specifications Rated Power Output 20 Watts CLASS D Max SPL @ Rated Power 92dB @ 1 meter Frequency Response 150 Hz – 15 kHz Switch Power Supply/Battery Charger INPUT 100Vac-240Vac, 50/60Hz 0.3A OUTPUT: 16V – 0.06A Built-In Battery 14.8V 3000mAh Lithium Polymer Battery Dimensions 6.125”...
- Page 8 Warranty does not include normal wear and tear on the product or any other physical damage unless the damage was the result of a manufacturing defect. ARG is not liable for consequential damages due to any failure of equipment to perform as intended.
