Summary of Contents for ARG ARG-OM001-C

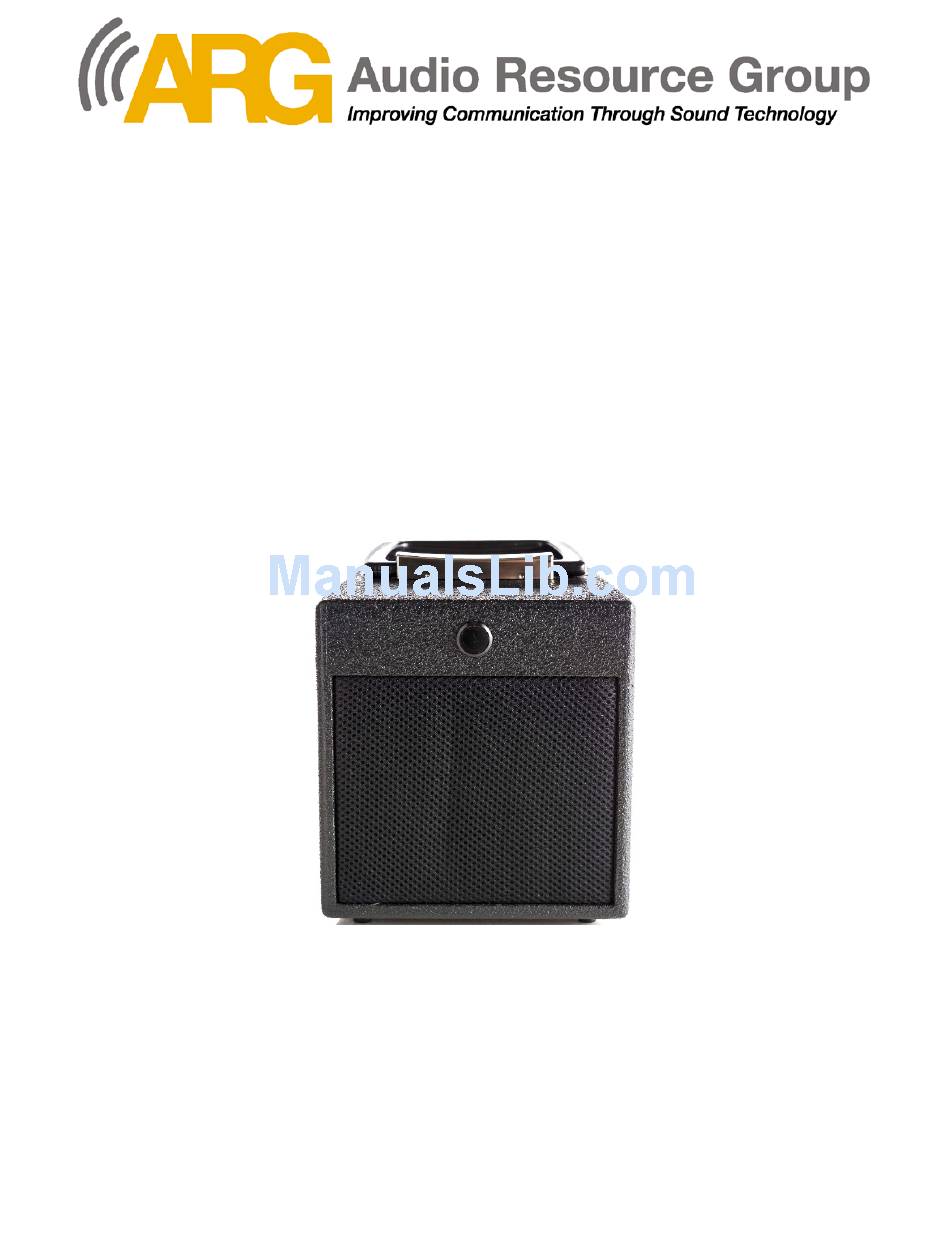

- Page 1 30 Watt Portable Amplifier Manual and User Guide User Guide Part # ARG-OM001-C Audio Resource Group, Inc. • 405 Main Ave W, Unit 4G • West Fargo, ND 58078 • ©2013 Audio Resource Group, Inc. • All Rights Reserved •...
-
Page 2: Table Of Contents
Rear View Diagram Page 6 System Controls Page 7 – 8 Quick Use Guide Page 9 ARG-TX900HH Product Details Page 10 ARG-TX900BP Product Details Page 11 – 12 Trouble Shooting Guide Page 13 Technical Specifications Page 14 Compliance Information Page 14... -
Page 3: Safety & Caution Information
THIS PRODUCT SHOULD BE USED WITH THE SUPPLIED SWITCHING POWER SUPPLY AND 110-125V AC OUTLET ONLY. Product Recycling Instructions DO NOT DISPOSE ELECTRONICS IN THE HOUSEHOLD TRASH! Help ARG protect our environment by locating an electronics recycling center. Page 3... -
Page 4: Models Available
Package Contents for Each SpeakEasy™ Model VoiceAmp® SpeakEasy™ Model ARG-VA30SE Basic 30 Watt Amplifier with a wired Microphone includes the following: ARG-VA30SE Portable Amplifier ARG-PS004 Power Supply/Battery Charger ARG-MP09 Professional Uni-Directional Microphone ARG-CC08 Medium Soft-Sided Carry Case VoiceAmp® SpeakEasy™ Model ARG-VA30SE-B1... -
Page 5: Front View Diagram
ARG-VA30S VoiceAmp® SpeakEasy™ System Front View: 1. Durable, lightweight, hand-crafted wood cabinet that delivers superb audio quality. 2. Infrared Sensor for remote control. Green LED Indicator Light illuminates when amplifier is charging. Blinking Red LED Indicator Light illuminates to indicate low battery. -
Page 6: Rear View Diagram
ARG-VA30S VoiceAmp® SpeakEasy™System Controls: Rear View Page 6... -
Page 7: System Controls
Note: Always set the Master Volume Control (22) to the minimum setting before using! 25. Power Supply / Charging Jack: Plug the supplied 18V AC adapter (ARG-PS004) to supply continuous power or to recharge the Lithium Battery Pack for portable use. - Page 8 MP3/USB Player LCD Display Detail: Correct System Layout Diagram Incorrect System Layout Diagram Page 8...
-
Page 9: Quick Use Guide
1. Getting Started: The VoiceAmp® SpeakEasy™ can operate on either AC or battery power. To use AC power, plug the ARG-PS004 switching power supply/battery charger to the power supply/charging jack “DC 18V/3A” located on the back of the speaker. Plug the other end into a 110-125 VAC outlet and push the Master Power ON button. -
Page 10: Arg-Tx900Hh Product Details
(+): Use to scroll up the 1-12 available channels while the transmitter is in the “unlock” mode (3) for channel selection. Battery Compartment: Holds three AA disposable alkaline batteries (ARG-BCAA). Microphone Gain: To increase the gain, press the channel + (5) to choose between setting 0-9 while the transmitter is in the “lock”... -
Page 11: Arg-Tx900Bp Product Details
900MHz Digital Bodypack Transmitter Model Number ARG-TX900BP Page 11... - Page 12 Operating Instructions: ARG-TX900 Transmitter 1. Before installing batteries, determine if they are carbon zinc, heavy duty, alkaline or rechargeable. Open the battery compartment door and locate the “ALK/NiMH” switch. If using carbon zinc, heavy duty or alkaline batteries slide the switch to the “ALK” position; if using NiMH rechargeable batteries;...
-
Page 13: Trouble Shooting Guide
• The transmitter batteries are weak or dead and need to be replaced. • Using the ARG-TX900BP transmitter, make sure the microphone is plugged into the microphone input jack located on the side of the transmitter. • If the problem continues, cycle the transmitter power OFF and then ON again. -
Page 14: Technical Specifications
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE! COMPLIANCE ARG-TX900BP and ARG-TX900HH are authorized by rule under the Low Power Radio Service (47 C.F.R. part 95) and must not cause harmful interference to TV reception or United States Navy SPASUR installations. You do NOT need an FCC license to operate this transmitter. -
Page 15: Warranty Information
Warranty does not include normal wear and tear on the product or any other physical damage unless the damage was the result of a manufacturing defect. ARG is not liable for consequential damages due to any failure of equipment to perform as intended.
