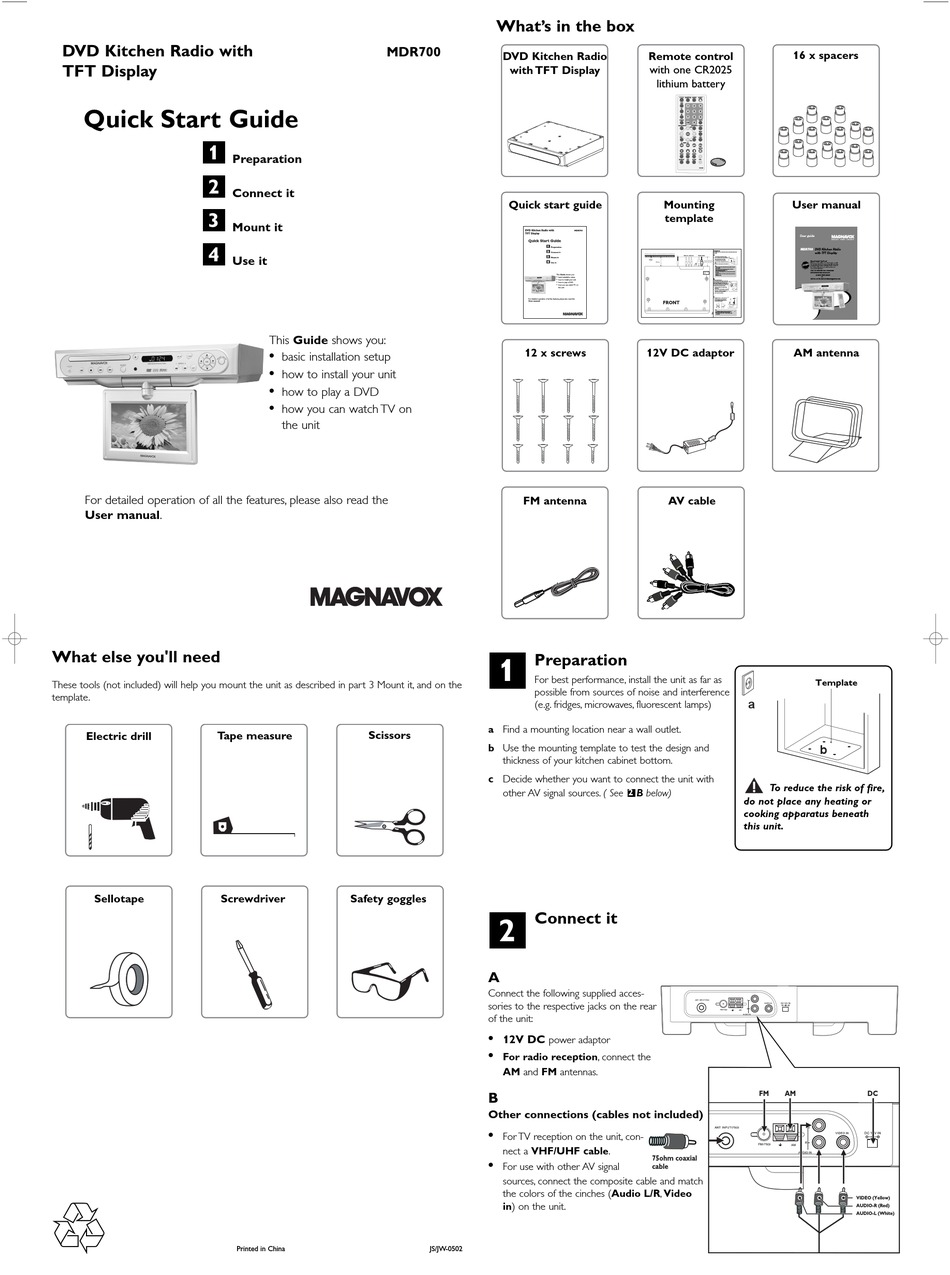

Magnavox DVD KITCHEN RADIO WITHTFT DISPLAY MDR700 Quick Start Manual

DVD Kitchen Radio with
TFT Display

Quick Start Guide

1
2
3
4
For detailed operation of all the features, please also read the
User manual.
What else you'll need
These tools (not included) will help you mount the unit as described in part 3 Mount it, and on the
template.
Electric drill
Sellotape
W
Preparation
Connect it
Mount it
Use it
This Guide shows you:
•
basic installation setup
•
how to install your unit
•
how to play a DVD
•
how you can watch TV on
the unit
Scissors
Tape measure
Screwdriver Safety goggles
Printed in China
What's in the box
MDR700
DVD Kitchen Radio
with TFT Display
Quick start guide
DVD Kitchen Radio with
TFT Display
Quick Start Guide
For detailed operation of all the features, please also read the
User manual.
12 x screws
FM antenna
Preparation
1
For best performance, install the unit as far as
possible from sources of noise and interference
(e.g. fridges, microwaves, fluorescent lamps)
a Find a mounting location near a wall outlet.
b Use the mounting template to test the design and
thickness of your kitchen cabinet bottom.
c Decide whether you want to connect the unit with
other AV signal sources. ( See
Connect it
2
A
Connect the following supplied acces-
sories to the respective jacks on the rear
of the unit:
•
12V DC
•
For radio reception, connect the
AM and FM antennas.
B
Other connections (cables not included)
•
For TV reception on the unit, con-
nect a VHF/UHF cable.
•
For use with other AV signal
sources, connect the composite cable and match
the colors of the cinches (Audio L/R, Video
in) on the unit.
JS/JW-0502
Remote control
with one CR2025
lithium battery
POWER SUBTITLE AUDIO EJECT
DVD
1 2 3
TV
4 5 6
AV
7 8 9
FM/AM GOTO
+10 0
TV/LCD SETUP DVD SETUP 16:9/4:3
CH+
INFO
OK
LCD LCD
SET TIME ON/OFF ON/OFF
CH-
-
SEEK +
MUTE
TITLE MENU ZOOM
+
REPEAT A-B SLOW VOL
-
RC 518B
Mounting
template
MDR700
1
Preparation
2
Connect it
3 VIDEO IN AUDIO IN FM ANT INPUT
Mount it
4
Use it
This Guide shows you:
•
basic installation setup
•
how to install your unit
• how to play a DVD
• how you can watch TV on
the unit
FRONT
12V DC adaptor
AV cable
2 B below)
power adaptor
75ohm coaxial
cable
16 x spacers
User manual
User guide
S M A R T . V E R Y S M A R T .
MDR700 DVD Kitchen Radio
Mount it
Ask a friend to help out. An extra hand to hold the unit makes mounting easier with TFT Display
and quicker.
A
• Cut the template to fit inside the cabinet. A
•
Align the template border marked "FRONT" Template
along the front edge of your cabinet.
• Use adhesive tape to fix the template.
Need help? Call us!
• Drill 1/4 inch holes, as marked X on the tem-
plate. Magnavox representatives are ready to help you with
• any questions about your new product. We can guide
Remove the template when you finish drilling.
you through Connections, First-time Setup, or any of
Tip
– Clean the bottom of the cabinet surface and also empty your cabinet the Features.We want you to start enjoying your
before mounting. new product right away!
– Place the unit in a clean, safe place when drilling to avoid wood
shavings dropping into the ventilation slots.
– Use a nail to start each drill hole. CALL US BEFORE YOU CONSIDER
– Drill from the bottom upwards if you do not have enough room inside
the cabinet. RETURNING THE PRODUCT!
– Hold your drill firmly at 90o with the cabinet bottom and drill holes at
low speed. 1-800-705-2000
– Clear wood shavings.
or
Visit us on the web at www.magnavox.com
B
Using the spacers
On the spacers, there are 4 pairs of notch length B
options. Depending on the thickness of you cabi- Spacer
net bottom (with/ without an overhang), these L (Low) L••H (4 heights)
notch lengths correspond to the 4 notch height in Arrow
the space holders, and allow you to adjust to the
best height to help you mount the unit.
• Measure the height of the cabinet bottom
and/overhang.
• Turn the spacer counterclockwise to determine
which of the 4 heights is most suitable: Low •
• High. Align to the arrow indication.
•
Insert the spacers accordingly.
C
C
• Manually fasten the 4 screws down into Screw Mounting
the spacer holder holes to mount your
set. Start screwing at opposite corners of
the unit for better support.
Tip
electric drill to secure screws when mounting! To prevent damage to your set, do not use an
– If the overhang is more than 1 1/4 inch, use longer screws
(not included).
1
AM antenna
Template
a
b
To reduce the risk of fire,
do not place any heating or
cooking apparatus beneath
this unit.
FM AM DC
VIDEO (Yellow)
AUDIO-R (Red)
AUDIO-L (White)
