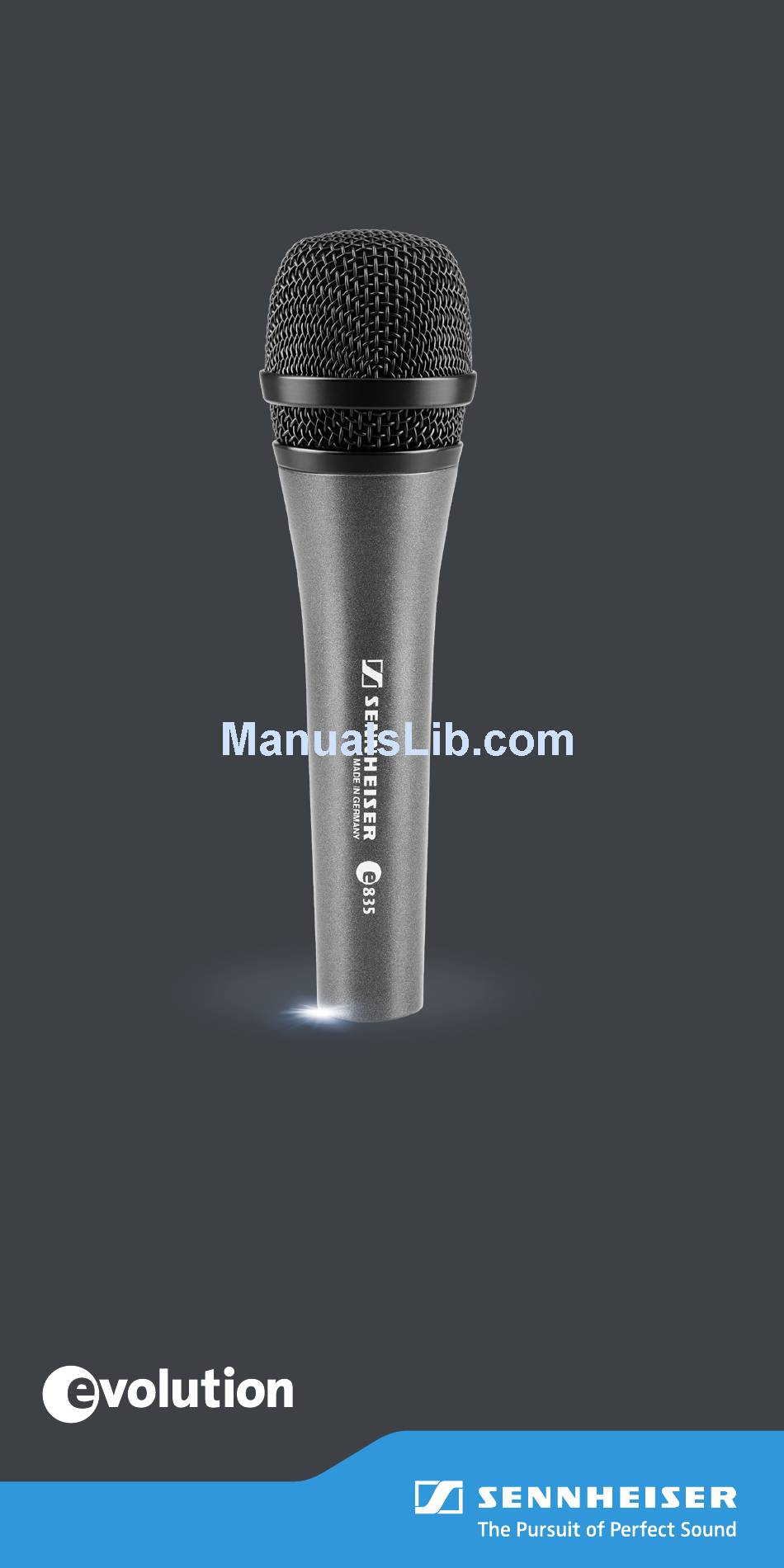

  • Page 1 e 835 Instruction manual Stage Microphones...

  • Page 2: Important Safety Information

    Important safety information • Please read this instruction manual carefully and completely before using the product. • Make this instruction manual easily accessible to all users at all times. • Always include this instruction manual when passing the product on to third parties. Before operation •...

  • Page 3: Package Contents

    The e 835 The e 835 is a cardioid lead vocal stage microphone specially designed to perform under pressure. Cardioid is the most commonly used pick-up pattern for live PA applications. It provides good on-stage freedom and also picks up sound from the sides. The “dead” side is at the rear. This pattern is good for picking up several vocalists at once, e.g. a choir or ensemble. The e 835’s balanced frequency response maintains signal quality when moving on and off axis during performance. The gentle presence boost ensures vocal clarity and projection. The minimal proximity effect provides for consistently clear bass-end performance when sing- ing closer to, or further from the microphone. The cardioid pick-up pattern provides excellent feedback rejection, enabling the microphone to handle higher sound pressure levels. The rugged metal construction and internal damping isolates handling noise. The e 835 S variant features a silent on/off switch. Features • Dynamic cardioid microphone for speech and vocals • Clear reproduction with a high presence • Consistent sound quality at varying distances or when off axis • High sound pressure handling capability • Optional silent on/off switch • Shock-mounted capsule provides excellent suppression of handling noise • Excellent feedback rejection • Humbucking coil • Rugged metal body Package contents 1 e 835 / e 835 S microphone 1 MZQ 800 microphone clamp 1 pouch...

  • Page 4: Using The Microphone

    Using the microphone Switching the e 835 S on/off Use the on/off switch to switch the the e 835 S on or off. If necessary, use the screw 4 to lock the on/off switch 3 in the “on” position. Positioning the microphone Pos. Resulting sound Commentary • High proximity effect Very little crosstalk (large bass boost) from other sound sources • Powerful, direct sound • Less proximity effect More crosstalk from (less bass boost) other sound sources • Some room ambience, natural, balanced sound • Very little proximity effect Higher crosstalk from (minimal bass boost) other sound sources...

  • Page 5: Specifications

    Specifications Transducer principle dynamic Frequency response 40 … 16,000 Hz Pick-up pattern cardioid Sensitivity (free field, no load at 1 kHz) 2.7 mV/Pa Nominal impedance (at 1 kHz) approx. 350 Ω Min. terminating impedance 1 kΩ Connector XLR-3 Temperature range 0°C to +40°C Dimensions Ø 48 x L 180 mm Weight 330 g The polar diagram and the frequency response curve D can be found on the cover pages. Connector assignment 6.3 mm 6.3 mm symmetrical...

  • Page 6: Manufacturer Declarations

    Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner. In compliance with the following requirements • WEEE Directive (2012/19/EU) • Please dispose of this product at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment. CE Declaration of Conformity • RoHS Directive (2011/65/EU) • EMC Directive (2004/108/EC) The declaration is available at www.sennheiser.com.
  • Page 7 · ³ e 835 ¿ » e 835 S 5-10 cm >10 cm...
  • Page 8 0° 0° 30° 30° 125 Hz 60° 60° 250 Hz 500 Hz 1,000 Hz 90° 90° 2,000 Hz 4,000 Hz 8,000 Hz 120° 120° 16,000 Hz 150° 150° 180° 180° 0°, 1 m...
  • Page 11 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com Publ. 08/15, 511655/A02...
