Summary of Contents for White Knight DW0945IA

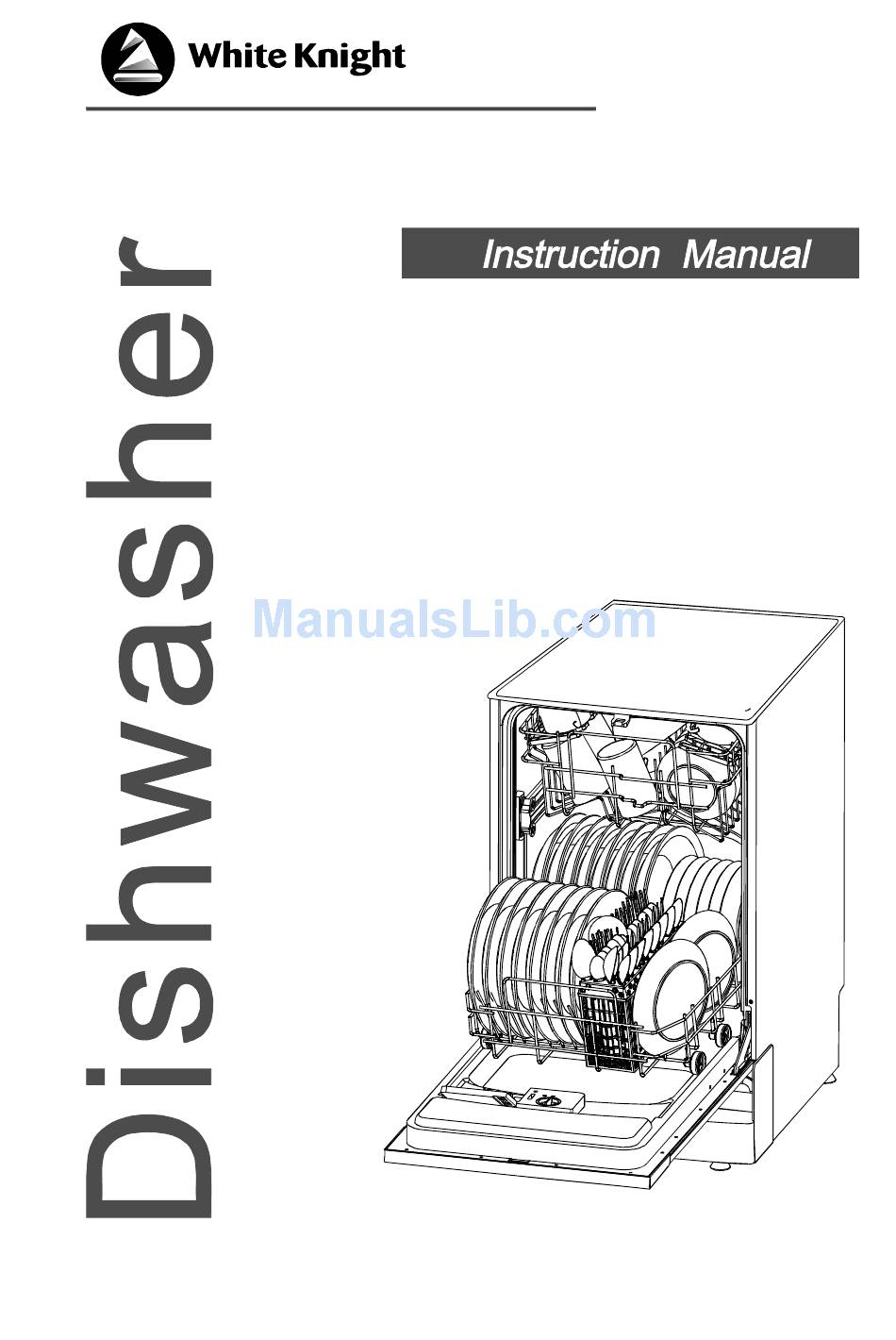

  • Page 1 DW0945IA...
  • Page 2 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the On/Off button to switch on the appliance, Open the door. With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).
  • Page 3: Table Of Contents

    Dear Customer, This appliance is inte nded to b e used in hou sehold and similar applications such as: Control Pan el...........3 -staff kitchen areas in shops, office s and other Dishwasher Fe atures........3 working environments; -farm houses; -by clients in hotels, motels and other resid entia l type environments;...
  • Page 4 When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of anelectric shock by providing a path of Check with a qualified electrician or service least resistance of electric current.
  • Page 5: Control Pan El

    Dispo se of the dishwasher packaging material correctly. All pa ckaging materials ca n be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e .g. sheet wrapping material for polysty rene, e.g. padding material po lyoxymethylene, e.g. pla stic clips polypropylene, e.g.
  • Page 6: Cutlery Basket

    To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Power indicator light and switch: To turn on/off and show the power supply. Salt and rinse aid warning lights: To sh ow when the salt contain er or dispenser need to be refilled. Dela yed Start Button and Delayed start indicator lights: To p reset the wash timer and delay the starting time Dela yed Start Button and Delayed start indicator lights: To p reset the wash timer and delay the starting time to 3 hours, 6 hours, 9 hours or 12 hours.
  • Page 7: Adjusting Salt Consumption

    Before using your dishwasher for the first time: Set the water softener B. Add 1.5Kg dishwashe r sa lt and then full fill the salt container with water Fill the rinse aid dispenser Fill in detergent The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.
  • Page 8: Rinse Aid Dispenser

    Always use the salt intended for use with dishwasher. The salt contain er is located beneath the lower basket and should be fill ed as explained in t he foll owing: Attention! Only use salt spe cif ically desi gne d for t he use i n dishwashers! Every other type of salt not speci fically de sig ned fo r the u se in a d ishwasher, espe cially table salt, will damage the w ater sof tener.
  • Page 9: Adjusting Rinse Aid Dispenser

    When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour " " of the optical level indicator C located next to the cap. When th e rinse-aid c ontainer is full, the whole indicator will be dark .As the rinse -aid diminishes, the size of the dark dot decreases.
  • Page 10: Wash Cycle Table

    Normally new pulverised detergent is with out phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt con taine r even when ° the hardness of water is only 6 dH. If dete rgents witho ut phosphate are used in the case of hard water often white spots appear on d ishes and glasses.
  • Page 11: Fill In Detergent

    Fill in Detergent Fill the detergent dispenser with detergent. The marking indicate s the dosing levels , as illustrate d on the righ t: The place of main wash cycle deterg ent placed. The place of pre-wash cycle deterge nt placed. Plea se o bserve the manufacturers dosing and storage Recommendations as stated on the detergent pac kaging.
  • Page 12 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended.
  • Page 13 The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and sau cers, as well as plates, small bowls and shallow pans (as long as th ey a re not too dirty). Position the dishes and cookware so that they will not get moved by the spray o f water.
  • Page 15: Adjusting The Upper Basket

    Adjusting the Upper Basket The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different h eight of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms.
  • Page 16 Means: need to fill rinse into the Rinse-Aid Dispenser. ℃ For heaviest soiled crockery, Pre-wash(50 ) 、 ℃ Wash (65 and normally soiled pots Intensive 、 pans dishes etc with dried Rinse 4/23g 1.13 16.0 on soiling. Rinse ℃ Rinse (55 Drying ℃...
  • Page 17: Unloading The Dishwasher

    Draw out the lower and up per b asket, load the dishes and push them back. It is commended to lo ad the lower bask et first, then the upper one (s ee the sectio n entitled “ ” Loading the Dishwasher ). “...
  • Page 18: Filter Assembly

    The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain.
  • Page 19: Cleaning The Filter

    Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week.
  • Page 20: Installation Preparation

    After Every Wash When not in Use for a LongTime It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside.
  • Page 21 【 】 Figure1 90 ° 90 ° Cabinet dimensions Less than 5mm 820mm between the top of dishwasher and 580mm Electrical, drain and cabinet and the water supply line entrances outer door aligned to cabinet. Space between cabinet bottom and floor 450 mm 【...
  • Page 22 2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by screws and bolts(See figure 4b) . Hop hook 【...
  • Page 23: Tension Adjustment Of The Door Spring

    ● Tension adjustment of the door spring The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable(see figure 5). Door spring tension is correct when the door remains horizontal in the ,...
  • Page 24: Dishwasher Installation Steps

    ● Dishwasher installation steps 1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. 2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion totighten the left and right door springs.
  • Page 25 Dishwasher must be level for proper dish rack operation and wash performance. Place level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the four leveling legs individually. When level the dishwasher, please pay attention not to let the dishwasher tip over.
  • Page 26: Positioning The Appliance

    Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.
  • Page 27 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher circuit breaker tripped Power supply is not Make sure the dishwasher is turned on and the door is closed securely. turned on Make sure the power cord is properly plugged into the wall socket.
  • Page 28: Error Codes

    The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 29 Height : 820mm(adjustable+60mm) Width : 445mm Depth : 540mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 9 Place settings...
  • Page 30 Technical Data Sheet Sheet of hous ehold d ishwasher according to EU Directive 1059 /2010: Manu facturer WHITE KNIGHT Type / Description DW0945IA Standard place settings Energy efficiency class Annual energy consumption 222 kWh Energy consumption of the standard cle aning cycle 0.77 kWh...
