Multifuel stove
Model : 134 04 11
Output : 4,5 kW
Technical manual
DIN EN 13240 : 2005-10
to be saved
by the user
for future reference
Description of the appliance
Installation instructions
Parc d'activités de la Verte Rue
Operating instructions
Allée des Prêles
59270 BAILLEUL
Spare parts
Tél. : 03 28 40 32 50
Warranty certificate
Advertisement
Table of Contents
Related Manuals for Belfort 134 04 11
Summary of Contents for Belfort 134 04 11

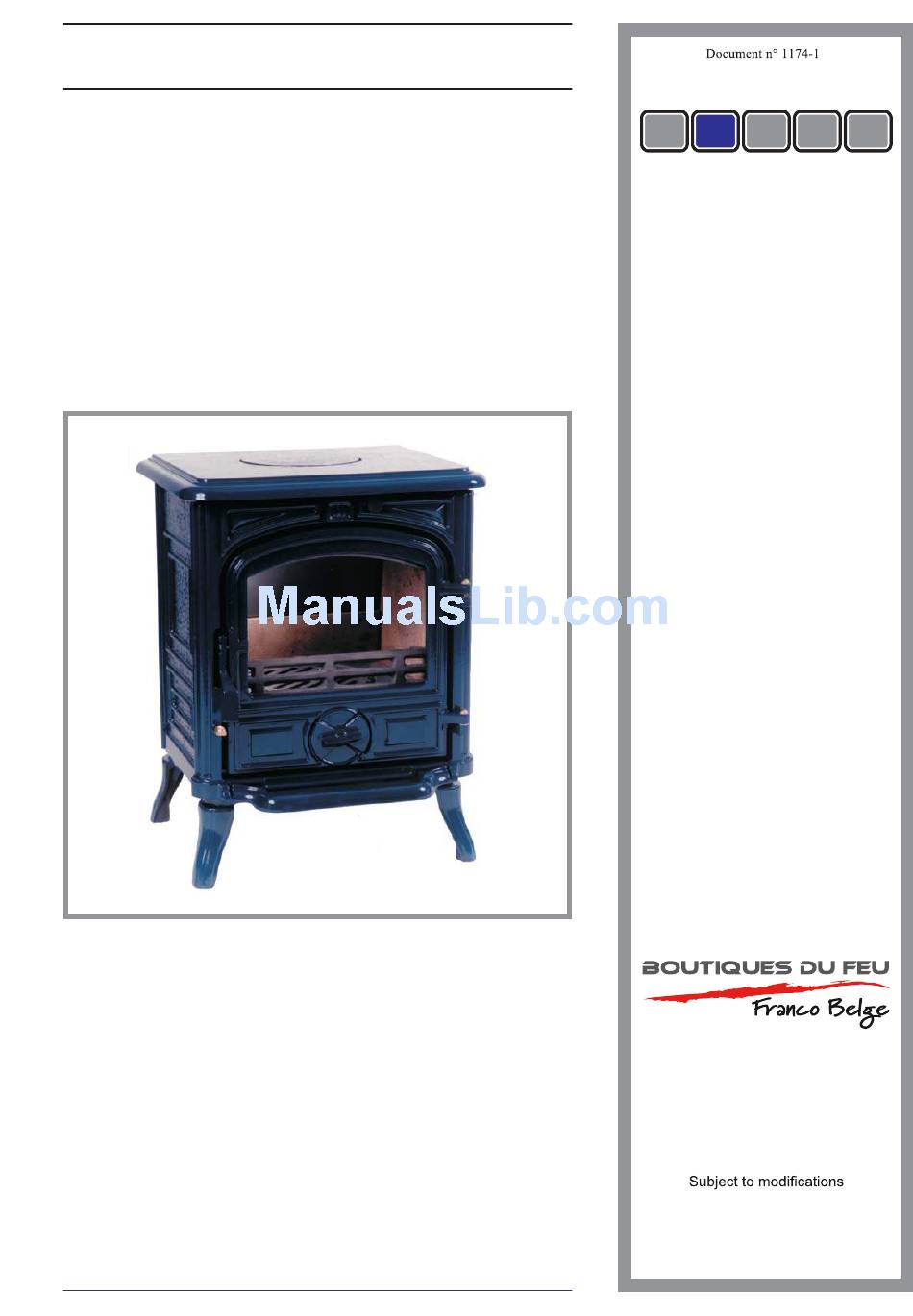

- Page 1 Belfort 19/09/2012 FR EN NL ES Multifuel stove Model : 134 04 11 Output : 4,5 kW Technical manual DIN EN 13240 : 2005-10 to be saved by the user for future reference Description of the appliance Installation instructions Parc d’activités de la Verte Rue Operating instructions Allée des Prêles...
- Page 2 DRAFT 24 Jul 2013 USER MANUAL FOR STOVES WITHOUT BOILERS SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET These instructions together with those in the instruction booklet cover the basic principles to ensure the satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions.
- Page 3 DRAFT 24 Jul 2013 Metal Parts When installing or servicing this stove care should be taken to avoid the possibility of personal injury. STOVE PERFORMANCE Refer to the manufacturer’s main instruction manual for details of the stove’s performance. PREPARATORY WORK AND SAFETY CHECKS IMPORTANT WARNING This stove must not be installed into a chimney that serves any other heating appliance.
- Page 4 DRAFT 24 Jul 2013 Hearth The hearth should be level and able to accommodate the weight of the stove and its chimney if the chimney is not independently supported. The weight of the stove is indicated in the brochure. The stove should preferably be installed on a non-combustible hearth of a size and construction that is in accordance with the provisions of the current Building Regulations Approved Document J.
- Page 5 DRAFT 24 Jul 2013 USER MANUAL FOR STOVES WITHOUT BOILERS SUPPLEMENTARY OPERATING INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET WARNING NOTE Properly installed, operated and maintained this stove will not emit fumes into the dwelling. Occasional fumes from de-ashing and re-fuelling may occur.
- Page 6 DRAFT 24 Jul 2013 In situations where it is not possible to sweep through the stove the installer will have provided alternative means, such as a soot door. After sweeping the chimney the stove flue outlet and the flue pipe connecting the stove to the chimney must be cleaned with a flue brush. Periods of Prolonged Non-Use If the stove is to be left unused for a prolonged period of time then it should be given a thorough clean to remove ash and unburned fuel residues.
-
Page 7: Table Of Contents
“BELFORT” - ref. 134 04 11 FRANCO BELGE congratulates you on your choice. FRANCO BELGE, guarantees the quality of its appliances and is committed to meet its customers’ needs. FRANCO BELGE, which can boast a 80-year experience in the industry of heating devices, uses state-of-the-art technologies to design and manufacture its whole range of products. -
Page 8: Product Information
“BELFORT” - ref. 134 04 11 Product information This appliance is meant to burn wood or coal safely Warning An incorrectly installed wood stove can cause serious accidents. We recommend that you engage the services of a professional engineer for its installation and the regular maintenance requirements 1. -
Page 9: Installation Instructions
“BELFORT” - ref. 134 04 11 Installation instructions 2. Installation instructions 2.1. Warning to the user material. Otherwise it must be necessary to install a non combustible protection. There must be a clearance of at least 350 mm at each... - Page 10 “BELFORT” - ref. 134 04 11 Installation instructions Hearth : The appliance must stand on a fireproof hearth. It is possible to provide a hearth made of non combusible board/sheet material or tiles at least 12 mm thick (C). Constructional hearths should be constructed of solid...
-
Page 11: Flue
“BELFORT” - ref. 134 04 11 Installation instructions Figure 6 - Chimney connections 1 - Chimney 2 - Funnel-shape fireproof material 3 - Non combustible register plate 4 - Cleaning access door 5 - Liner 6 - Non combustible register plate and ventilated 2.3. -
Page 12: Maintenance Of The Stove Body
“BELFORT” - ref. 134 04 11 Installation instructions 2.6. Door closing pressure The cast iron body panels of non-enamelled stoves can be cleaned with a proprietary stove cleaner or re-sprayed / touched up using a stove paint. These Figure 7 products are available from your Franco Belge Dealer. -
Page 13: Instructions For User
Awaiting better weather circumstances, don’t use Recommended fuel : any coal but only wood. The best fuels for use with the Franco Belge “Belfort” At the first lighting, the fire must be progressively are : increased to allow the various parts to expand normally Seasoned wood. -
Page 14: Instructions For Use With Wood
“BELFORT” - ref. 134 04 11 Instructions for user Figure 9 - Removing the fuel retainer 3.2. Instructions for use with wood 3.2.1. Lighting Figure 8 • Slide the top air control (rep. B1) to the right. Open the lower spin wheel (rep. C1). -
Page 15: De-Ashing
The door rope seals should be checked annually and It is essential to keep the grate free from a heavy build replaced when required. up of ashes. The Belfort is equipped with a grate riddling device which is used to “shake” ashes off the •... -
Page 16: Trouble Shooting
“BELFORT” - ref. 134 04 11 Instructions for user 3.10. Trouble Shooting þ : This sign means that you should ask for a qualified engineer to do the work. Problem Probable causes Action Fire difficult to start Wood green, too damp or poor Use the recommended fuel. -
Page 17: Spare Parts
When ordering spare parts, specify the stove type and serial number, including the colour index (on the guarantee or identification plate), the name of the part and the part number. Example : Belfort wood stove : “Belfort”, model : 134 04 11, colour Y, top : 352136 EF. A = 1340411 Y... - Page 18 “BELFORT” - ref. 134 04 11 Spare parts " $ " ! " " ! " # & " & " & " " ! & ! " & " " % " " " "...
- Page 19 “BELFORT” - ref. 134 04 11 Spare parts A = 1340411 Y C = 1340411 C E = 1340411 D G = 1340411 E B = 1340411 J D = 1340411 I F = 1340411 P N° Code . . . Description ... . . Type ..A . . . B . . . C . . . D . . . E . . . F . . . G . . Qty 309989 MK .
- Page 20 “BELFORT” - ref. 134 04 11 Note Note Technical manual “1174”...
