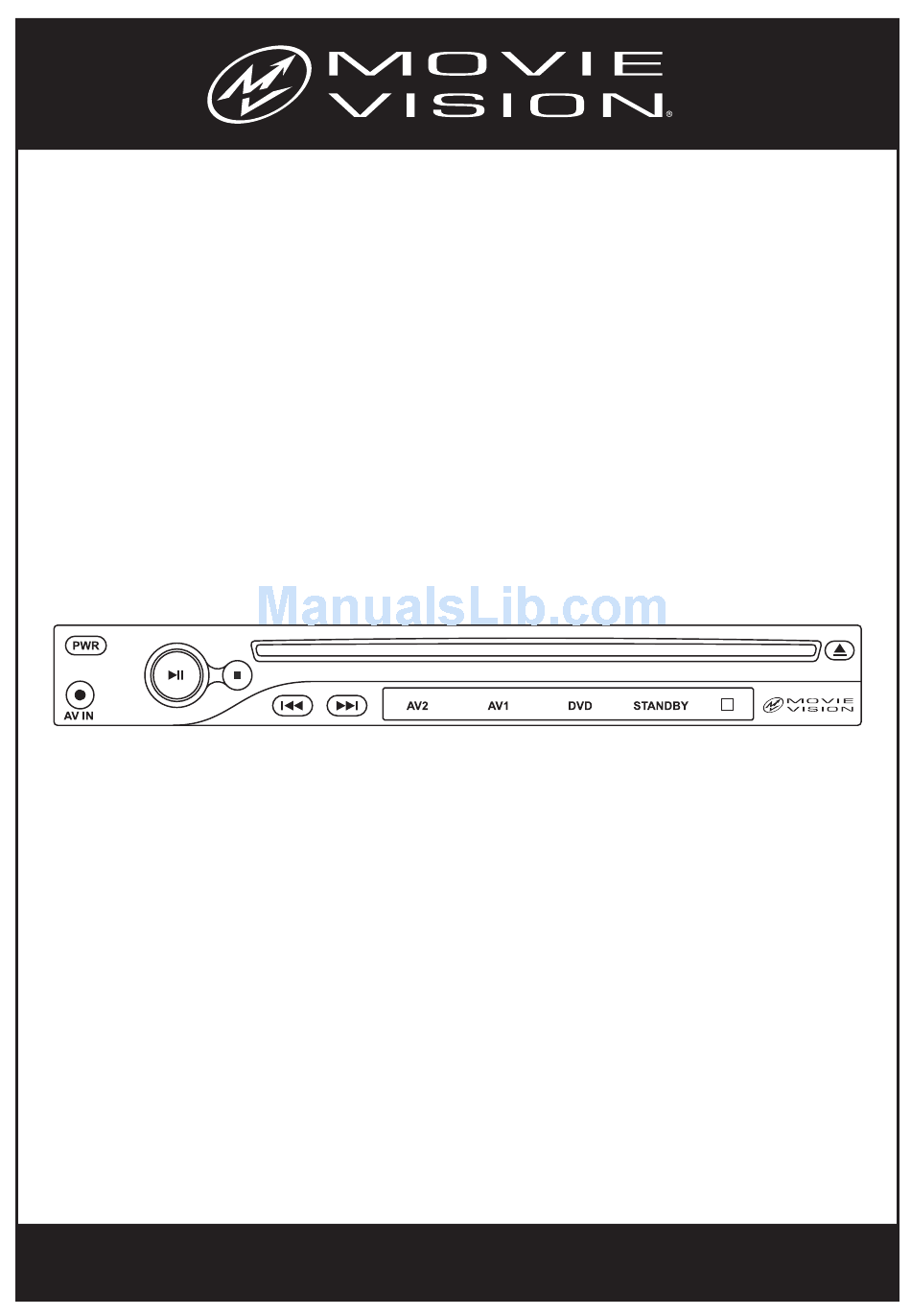

- Page 1 Compact Mobile DVD Player Owner's Manual Model: MV-DVD-PL8 For operational or technical assistance, after reading this manual, please call us toll free at (800) 638-3600 or visit www.magnadyne.com.
-
Page 2: Table Of Contents
U.S. patents and other intellectual property rights owned by Magnadyne Corporation and other rights owners. Use of this copyright protection technology must be authorized by Magnadyne Corporation, and is intended... -
Page 3: Features
DVD, DVD-R, DVD-RAM, CD, CD-R/RW. • Multi-Lingual On-Screen Display Menu • Last Position Playback Memory • Multi-image ratio, which enables the DVD player to match different TV screens. Using this Product Safely Proper Power Supply This product is designed to operate with a 12 Volt DC, negative ground battery system. -
Page 4: Disc Notes
Disc Formats Supported by this Player: DVD-R/DVD-RAM Discs which cannot be played with this player: • DVD-ROM • CDV • CD-G Disc Handling • Dirt, dust, scratches and warping disc will cause non operation. • Do not place stickers on disc or scratch disc. •... -
Page 5: Electric Connection
Connecting to a MovieVision System that uses a Separate Power Module as the Only Source MV-DVD-PL8 AV Input MovieVision Pod MV-POD10-2 MV-POD7 Electric Connection AV Output: White RCA Audio Out - Left Red RCA Audio Out - Right Yellow RCA... - Page 6 Connecting to a Monitor MV-DVD-PL8 AV Input Red Wire +12 V Accessory Black Wire Ground MovieVision Pod MV780 Electric Connection AV Output: White RCA Audio Out - Left Red RCA Audio Out - Right Yellow RCA Video Out White RCA...
-
Page 7: Installation
Notes: • With the screws provided, attach the brackets on both sides of unit as shown in the illustration below. Installation • Install the unit as a floor mount or underdash mount with the screws provided. Floor Mount Underdash Mount... -
Page 8: Remote Control
Being no more than 20 feet away, point the remote control towards remote infrared sensor on the front panel of the DVD player and press desired remote con- trol buttons. For best use, there should be no obstacles between the remote and the sensor. -
Page 9: Remote Control Functions
1. EJECT: Ejects the disc. 2. AV/DVD: Switches the source between DVD, AV1 and AV2. 3. MENU: Displays the DVD menu. 4. POWER: Turns the unit "On" or "Off". 5. TITLE: Displays the title menu that is stored on the disc. 6. -
Page 10: Front/Back Panel Functions
1. POWER 2. PLAY / PAUSE 3. STOP 4. DISC SLOT 5. EJECT 11. DC 12 VOLT INPUT 12. GROUND/DC +12V 13. AV INPUT 14. AV OUTPUT Front Panel Functions 6. REMOTE CONTROL INFRARED SENSOR 7. FUNCTION INDICATOR 8. NEXT TRACK / CHAPTER 9. -
Page 11: Basic Operations
Press PLAY/PAUSE during disc playback to stop play temporarily. Press PLAY/PAUSE again to resume normal playback speed. Note: When the DVD player is in fast for- ward or fast reverse mode, push PLAY/PAUSE button to resume normal playback speed. Volume Control Press the VOL + button to increase the volume level. - Page 12 Auxiliary Sources Pushing the AV/DVD button will switch between sources: AV1, AV2 and the DVD player. Note: When the this signifies an invalid operation that is not accepted by the DVD player. symbol is displayed,...
- Page 13 Push REPEAT again to repeat DIRECTORY. Push REPEAT again to repeat ALL. Push REPEAT once more to Cancel repeat. MP3 Operation This DVD player supports MP3 discs. Use the CURSOR buttons cursor through the MP3 directory. Then push ENTER to play desired file.
-
Page 14: System Setup
Note: • Setup the "DISC" function when there is no disc in the DVD player. This function is not available during disc playback. • Press the RETURN button to go back to the previous menu. For example, if you input the wrong password in the "PARENTAL LOCK"... -
Page 15: Video Settings
DISC SETTINGS Menu Language Setting Use this screen to setup the disc menu language. Parental Lock Rating Use this screen to setup the Parental Lock Rating. This function helps restrict viewing movies with certain ratings (e.g., PG-13, R, etc.) as supported by each DVD. Parental Lock Password Setting Use this screen to setup a four-digit parental lock password. - Page 16 AUDIO SETTINGS Use the CURSOR buttons AUDIO setting selections. Press the ENTER but- ton to confirm the setting. DISPLAY SETTINGS Use the CURSOR buttons OSD Language setting selections. Press the ENTER button to confirm the setting. OSD Language Setting Use this screen to setup the desired OSD Language.
-
Page 17: Specifications
Last Play Function The Last Play function automatically bookmarks the position on a DVD/CD disc and remembers the playback settings. Playback will resumes at the position which the player was turned off, the disc was ejected, or the power was cut off. Turning Off Last Play Function Press the SETUP button to display the main menu. -
Page 18: Troubleshooting
Only qualified service personnel should remove the cover or service this player. Otherwise the warranty will become invalid. If it appears that your DVD unit is faulty, first consult the list below. No Power: • Check to see if the player is set to "On". •... -
Page 19: Replacement Parts
9 a.m. and 5 p.m. weekdays. If UPS is unable to deliver, your order will be returned and additional shipping charges will be required. We Accept Checks, Money Orders, Visa and Master Card Make Checks Payable to: Magnadyne Corporation FIRST NAME STATE... -
Page 20: Warranty
DVD Remote Control RC-PL8 Magnadyne Corporation or its authorized agents will within 1 year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the...
