Icom AP-90M Connection Manual

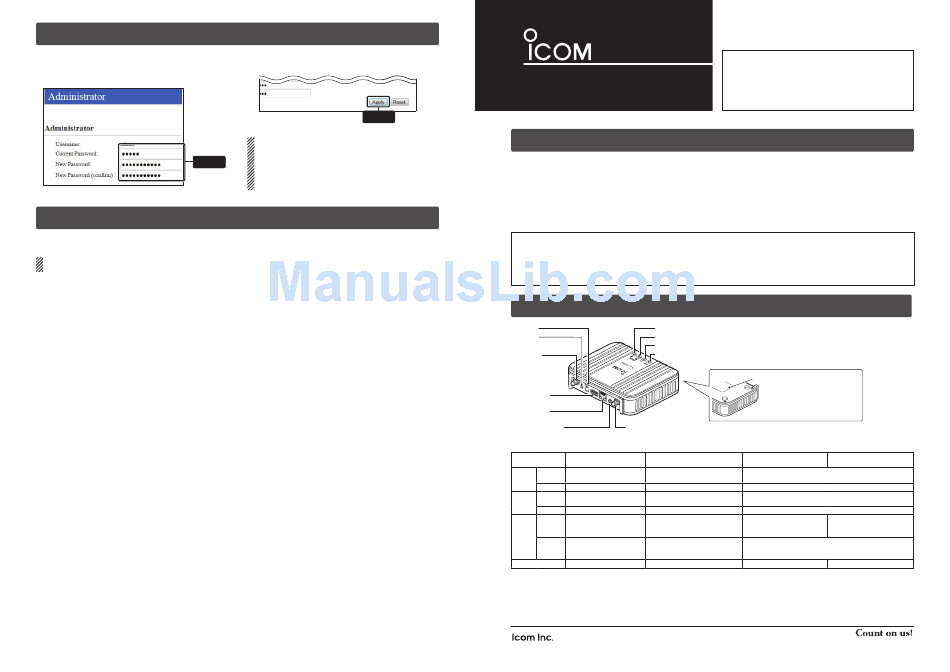

Step 6 Changing the administrator's password
To prevent unauthorized access, you must change the password.
Click [Management], then [Administrator].
q
w Fill out each box to change the password.
Enter
Step 7 DFS function and channel auto setting
The DFS function automatically avoids radio-frequency interference to Weather radars. The DFS conditions differ, depending on
your location.
NOTE: Whether or not the DFS function is enabled on a frequency is regulated by the local law, and cannot be disabled by
users.
• The Wireless Bridging is not activated if a channel is used that requires the DFS function or if automatic channel selection is set.
Refer to the PDF instruction manual on the Icom's website for setting details.
• The usable wireless LAN frequencies and channels differ, depending on your location.
After setting a channel in the setting screen, restart the
➥
AP-90M. The AP-90M will then search for a weather ra-
dar's signal for approximately 1 minute.
While searching for a signal, [WIRELESS 1 or 2] will blink,
and access to the AP-90M will be paused.
When a weather radar's signal is detected, the operating
channel automatically changes to a different channel to
avoid the interference.
The DFS function pauses on the new channel, if the chan-
➥
nel does not require the DFS.
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United
Kingdom, Germany, France, Spain, Russia and/or other countries.
Microsoft, Windows and Windows Server are registered trademarks of Microsoft Corporation in the United States and/or other
countries.
Adobe and Adobe Reader are registered trademarks of Adobe Systems Incorporated in the United States and/or other countries.
All other products or brands are registered trademarks or trademarks of their respective holders.
Click [Apply.]
e
Click
* Enter the new administrator's password from now on.
NOTE: If you have forgotten your password, you cannot
access the AP-90M's setting screen.
When you forgot your password:
Hold down the [MODE] button by following the instructions
described in the precautions guide. The AP-90M will have
to be reset as its default.
– 4 –
CONNECTION GUIDE
WIRELESS ACCESS POINT
AP-90M
Step 1 System Requirements
D Supplied Accessories
• Cushion sheet ............ 1
• Antenna ..................... 2
• Mounting bracket set ... 1
• Precautions guide
• "Setting the interface language and the Time Zone" leaflet
• Connection Guide (This guide)
About this Connection Guide:
This Connection Guide explains the basic operation of the
AP-90M. Access our website to download the instruction
manual.
Icom website http://www.icom.co.jp/world/
Step 2 Panel description
DC jack [WIRELESS 2]
[WPS] [WIRELESS 1]
Wi-Fi Protected Setup [LAN]
Antenna [POWER]
connector
[USB] port
(USB 2.0)
[LAN] port
(RJ-45)
Ground terminal Antenna connector
D About the indicators
LED POWER* 1 LAN
LAN connected
Lights ON
(1000BASE-T)
Green
Blinks — LAN is communicating (1000BASE-T)
"Accessing the USB flash
Lights
Red drive" error
Blinks "Duplicated IP address" error
LAN connected
Accessing the USB flash drive.
Lights (10BASE-T/
A firmware update is ready.
100BASE-TX)
Orange
LAN is communicating
Booting.
Blinks (10BASE-T/
Operating [MODE].
100BASE-TX)
OFF OFF LAN is not connected
* 1 When the LED OFF Mode is set to "Enable," the light is dimmed, and when set to "Enable (Completely)," the light turns OFF. (Default: Disable)
* 2 When there is no wireless device to communicate with the AP-90M, or no wireless communication is performed while the Wireless Unit is
enabled, the LED lights orange. The time when the LED turns orange differs, depending on the communication status.
3
* The LED also turns OFF when the same Wireless Mode is set to the internal antenna and the external antenna.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Read the "PRECAUTIONS" leaflet first, if you have not done so.
Thank you for purchasing this Icom product. The AP-90M
is designed and built with Icom's
wireless access point
IP network technology. It complies with the "IEEE802.11ac"
and "IEEE802.11n" standards, and is designed for dual
band communications in the 5 GHz and 2.4 GHz bands.
D Other requirements
• PC
• Ground wire
• LAN cable
• Power adapter
(The adapter type differs, depending on the access point version)
NOTE:
• Adobe ® Reader ® is required on your PC in order to display the
downloaded PDF instruction manual.
• If your PC does not have Adobe ® Reader ® , please download it
from the Adobe ® website.
[WIRELESS 1]: Internal antenna.
[WIRELESS 2*]: External antenna.
* The "IEEE802.11ac" standard can only be used when the 5
GHz band is selected.
Back side [MODE]
Refer to "Resetting to the
factory defaults" in the Pre-
cautions Guide, for details.
WIRELESS 1 WIRELESS 2
(Internal antenna)* 2 (External antenna)*
More than 1 connection/WPS succeeded
WPS is running
— —
— WPS failed
Internal antenna enabled External antenna enabled
(Wireless unit is not connected) (Wireless unit is not connected)
Wireless operation is standing by for DFS
Internal antenna disabled* 3 External antenna disabled*
– 1 –
A-7168W-2EX-q Printed in Japan
© 2014–2015 Icom Inc.
