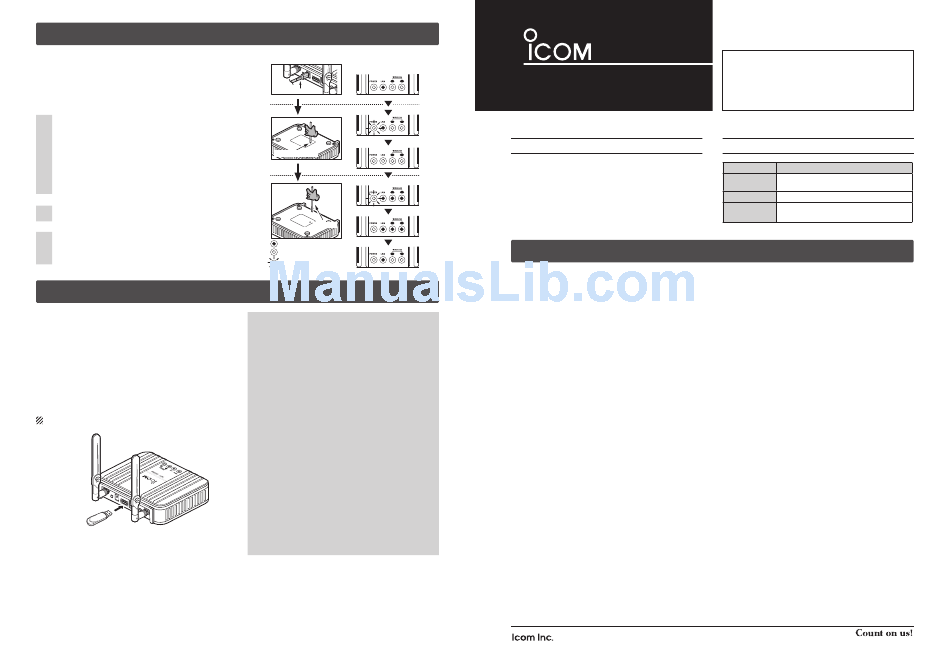

RESETTING THE AP-90M
If you cannot access to the AP-90M setting screen, you can
reset the AP-90M by pushing [MODE] on the bottom panel.
• This resets all settings to the factory defaults.
• If you can access the setting screen, see the AP-90M instruc-
tion manual (PDF) for resetting from the setting screen.
Disconnect all cables from the AP-90M, and then con-
1
nect the power adapter.
• Verify that the [POWER] indicator lights green and the [WIRE-
LESS 1 and 2] indicators light orange.
• The indicators' status may differ, depending on the operation
status.
• If the supplied mounting bracket is attached, the [MODE]
button cannot be pushed. See the AP-90M instruction man-
ual for the details on attaching and detaching the mounting
bracket.
Push in and hold [MODE] with a pin on the bottom pan-
2
el until all indicators on the front panel light orange.
Confirm that all indicators are lit in orange, and then
3
release the [MODE] button.
• When the initialization has been completed, [WIRE-
LESS 1 and 2] light orange.
AUTOMATICALLY SETTING WITH A USB FLASH DRIVE
The setting data or firmware can automatically be loaded
into the AP-90M from a USB flash drive.
This is useful to recover the configuration or to update the
firmware.
• You can save multiple sets of AP-90M on one USB flash
drive and set them one by one.
• For the safety enhancement, You can disable the
automatic setting function, or set to use the specific flash
drive.
• See the AP-90M's PDF instruction manual on the Icom
website for details.
The USB flash drive is not supplied. Purchase locally.
Firmly insert into
the USB port
Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United
Kingdom, Germany, France, Spain, Russia and/or other countries.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or other countries.
Adobe and Adobe Reader are registered trademarks of Adobe Systems Incorporated in the United States and/or other countries.
All other products or brands are registered trademarks or trademarks of their respective holders.
LED indications
Lights (green) Light (orange)
Turn ON the power
Blinks (orange)
All LEDs light
(orange)
Push in and hold
Blinks (orange)
Lights (green)
Release
Light (orange)
:No light
:Light
:Blink
NOTE:
• A USB flash drive with biometric authentication, or
password protection is not supported.
• To prevent data corruption, disconnect the AP-90M's
power adapter when inserting or removing the USB
flash drive.
• Securely insert the USB flash drive.
• NEVER remove the USB flash drive or disconnect the
AP-90M's power adapter, while transferring data. It will
cause data corruption, or damage the USB flash drive.
• After the firmware updating is completed, check the
firmware version in the setting window to verify that
the update was correctly done.
• When importing setting data from the USB flash drive,
the AP-90M's original programmed setting data is
automatically saved as "bakdata.sav" on the USB
flash drive, as a backup.
About the USB flash drive
Interface: USB 1.1 or 2.0
Device : USB Mass Storage Class
Format: FAT16/FAT32
(Does not support exFAT or NTFS)
Icom is not responsible for the USB flash drives used
with the AP-90M.
– 4 –
PRECAUTIONS
WIRELESS ACCESS POINT
AP-90M
IEEE802.11ac/n/a/b/g standards
Dual band communications
IMPORTANT
READ ALL INSTRUCTIONS carefully
and completely
before using the AP-90M.
—
SAVE THESE INSTRUCTIONS
These instructions
contain important safety and operating instructions for the
AP-90M.
PRECAUTIONS
■ For the AP-90M
R WARNING! NEVER
use other than the specified power
adapter. This may result in an electrical shock, cause a fire or
damage the AP-90M.
R WARNING! NEVER
use non-specified accessories.
This may result in an electrical shock, cause a fire or dam-
age the AP-90M.
R WARNING! NEVER
attempt to connect the power
adapter to other than the [DC] jack on the AP-90M rear panel.
This may result in an electrical shock, cause a fire or damage
the AP-90M.
R WARNING! NEVER
disassemble, modify or repair the
AP-90M. This may result in an electrical shock, cause a fire
or damage the AP-90M.
R WARNING! NEVER
install the AP-90M in a wet place
or outside. This may result in an electrical shock, cause a fire
or damage the AP-90M.
R WARNING! NEVER
operate or touch the AP-90M with
wet hands. This may result in an electrical shock or damage
the AP-90M.
R WARNING! NEVER
connect the ground terminal to a
gas or electric pipe. This may result in an electrical shock or
cause a fire.
R WARNING! NEVER
use the AP-90M during a thunder
and lightening storm. Using it may result in an electrical shock,
cause a fire or damage the AP-90M. Always disconnect the
power adapter before a storm.
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Thank you for purchasing this Icom product. The AP-90M
is designed and built with Icom's
wireless access point
IP network technology. We hope you agree with Icom's
philosophy of "technology first." Many hours of research
and development went into the design of your AP-90M.
EXPLICIT DEFINITIONS
WORD DEFINITION
Personal injury, fire hazard or electric
RWARNING!
shock may occur.
Equipment damage may occur.
CAUTION
If disregarded, inconvenience only. No risk
NOTE
of personal injury, fire or electric shock.
R WARNING!
Immediately disconnect the power adapter if
the AP-90M emits an abnormal odor, sound or smoke. Con-
tact your Icom dealer or distributor for advice.
R WARNING! NEVER
put the AP-90M in any unstable
place (such as on a slanted surface or vibrating place). This
may cause injury and/or damage to the AP-90M.
CAUTION: NEVER
install the AP-90M in a place without air
vents. Heat dissipation may be reduced, and this could dam-
age the AP-90M.
CAUTION: DO NOT
use the AP-90M near a television or
radio. This could cause harmful interferences.
CAUTION: DO NOT
use or place the AP-90M in areas with
temperatures below 0ç (+32ƒ) or above +40ç (+104ƒ).
CAUTION: DO NOT
place the AP-90M in direct sunlight.
This could damage the AP-90M.
CAUTION: DO NOT
use the AP-90M in strong magnetic
fields or in an area with high static electricity. This could dam-
age the AP-90M.
CAUTION:
Disconnect the power adapter when you will not
use the AP-90M for a long period of time.
CAUTION: DO NOT
use harsh solvents such as benzine
or alcohol to clean the AP-90M, as they can damage the AP-
90M's surfaces. If the AP-90M becomes dusty or dirty, wipe it
clean with a dry, soft cloth.
Always place the AP-90M in a secure place to avoid inadver-
tent contact with children.
– 1 –
A-7168W-1EX-e Printed in Japan
© 2014–2015 Icom Inc.
