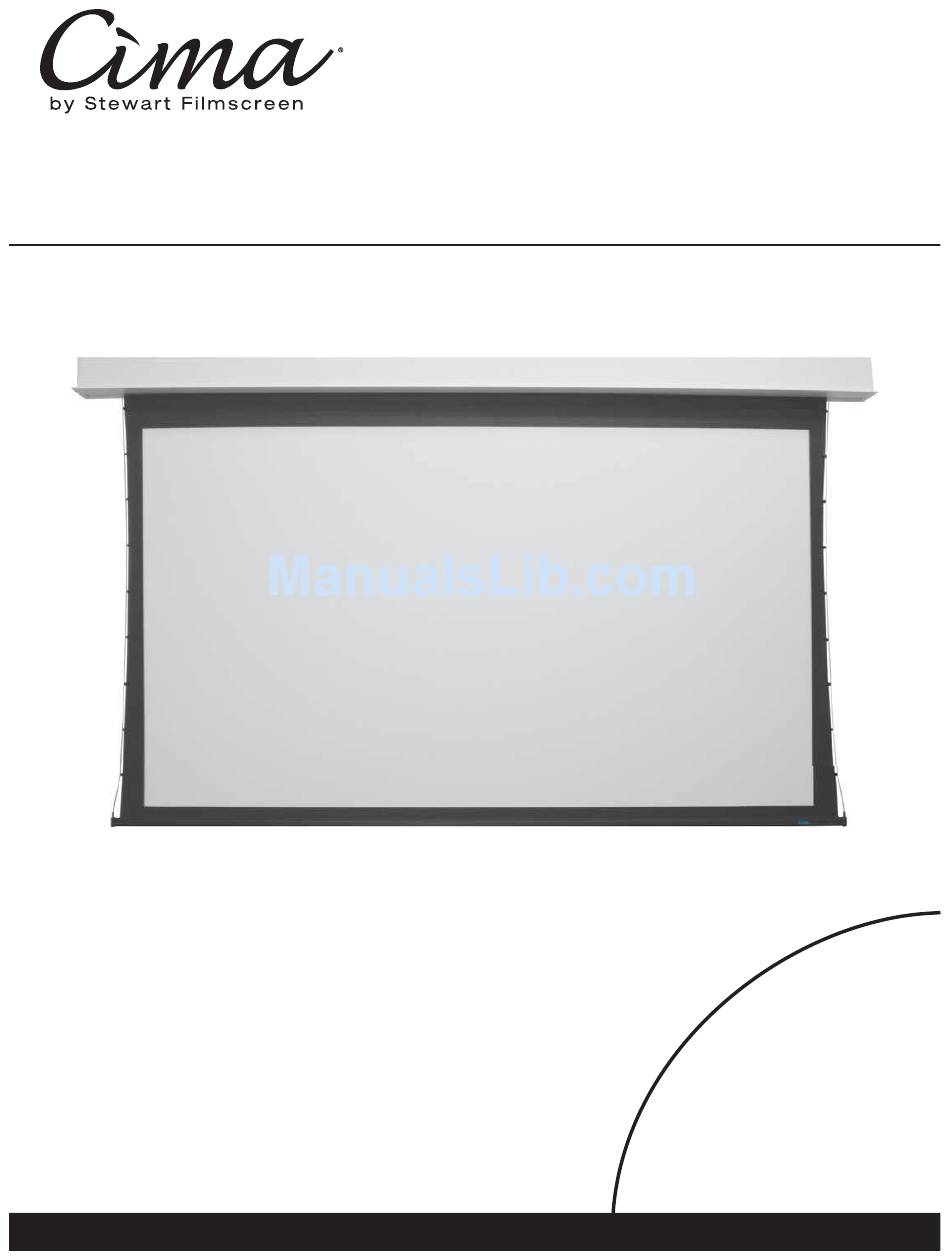

- Page 1 Above Ceiling ElectriScreen Owner’s Manual To the Owner Installation Instructions Screen Care Maintenance CFS-080315-AC TO THE INSTALLER: BE SURE TO LEAVE THIS MANUAL WITH THE OWNER.
- Page 2 Printed in U.S.A. © 2015 Stewart Filmscreen Corporation Stewart Filmscreen reserves the right to make changes to the product specified in this document. Sizes and specifications subject to change without notice at Manufacturer’s discretion. From time to time, this document is updated. Current versions of documentation are posted on the Stewart Filmscreen website at: www.stewartfilmscreen.com...
-
Page 3: Table Of Contents
Optional Controls ......11-14 Cima-Link Infrared Package ....12 Cima-Link Ethernet Package . -
Page 4: To The Owner
Cima by Stewart Filmscreen product. About your Cima Above Ceiling ElectriScreen The Cima Above Ceiling ElectriScreen is designed for ease of installation. The Cima Above Ceiling features a self-finishing face-plate. There are no user-servicable parts contained within the unit. -
Page 5: Preparing The Installation
PREPARING THE INSTALLATION Description The Cima Above Ceiling product can be controlled through a number of remote control devices, including keypads, dry contact outputs, and low-voltage trigger outputs. With the optional Cima-Link Controller Packages, your Cima screen can be controlled by local and remote Infrared, IP ethernet, and computer-based signaling sources such as those manufactured by Control4, AMX, Crestron, Elan Home Systems with RS-232-C or RS-485 interfaces. -
Page 6: Product Dimensions
PRODUCT DIMENSIONS Detail A: Screen Sideview © 2015 Stewart Filmscreen Corporation Cima Above Ceiling ElectriScreen: Owner’s Manual... -
Page 7: Installing The Screen Into The Ceiling
♦ Make sure that the screen batten never contacts or strikes any objects as damage may occur. Note: A false ceiling is not intended to support the weight of a Cima Above Ceiling ElectriScreen. RJ25 JACK Figure 1: Overhead View Isometric Figure 2: Underside View Isometric 1. -
Page 8: Standard Controls
Cima-Link Controller Accessories. Making the Connections 1. Connect the RJ25 cable to the keypad. 2. Connect the other end of the RJ25 cable to the Cima unit. Note: The maximum length of the RJ25 cable shall not exceed 50’. ADDITIONAL... -
Page 9: Projector Control
STANDARD CONTROL - PROJECTOR CONTROL Making the Connections 1. Connect the RJ25 cable to the projector. 2. Connect the other end of the RJ25 cable to the Cima unit. Note: The maximum length of the RJ25 cable shall not exceed 50’. ADDITIONAL... -
Page 10: Keypad & Projector Control
Press the "Up" button once and the Cima screen will automatically retract back into the case and power itself off. If a custom position is desired, simply press the "Stop" button at any time during the screen's deployment or retraction. -
Page 11: Optional Controls
AC motor controller designed to control your Cima projection screen and integrate with optional infrared remote, additional Cima screens, and 3rd party applications. Up to 255 Cima ElectriScreens can be linked together on any one span when connected together via the optional Cima-Link RS-232 Serial Package or Cima-Link Ethernet Package. -
Page 12: Cima-Link Infrared Package
OPTIONAL CONTROL - CIMA-LINK INFRARED PACKAGE CONNECTION Making the Connection 1. Connect the RJ25 cable to the top RJ25 jack located on the left side of the Cima unit. 2. Place infrared eye in line of sight of remote. Note: The maximum length of the RJ25 cable shall not exceed 50’. -
Page 13: Cima-Link Ethernet Package
OPTIONAL CONTROL - CIMA-LINK ETHERNET PACKAGE CONNECTION Making the Connection 1. Connect the RJ25 cable to the left RJ25 jack located on the left side of the Cima unit. 2. Place the other end of the RJ25 cable to the RJ25 jack in the IP device. -
Page 14: Cima-Link Rs232 Package
OPTIONAL CONTROL - CIMA-LINK RS232 PACKAGE CONNECTION Making the Connection 1. Connect the RJ25 cable to the top RJ25 jack located on the left side of the Cima unit. 2. Place the other end of the RJ25 cable to the RJ25 jack in the RS232. -
Page 15: Operating The Screen
OPERATING THE SCREEN Description The method you use to raise and lower the screen depends on the type of switch control device you have selected. When you lower or retract the screen, it will stop at its preset limit. If an obstacle (such as a person or furniture) is in the path of the screen as it is lowered, use the switch control to stop the screen's motion (it will not automatically stop if it hits an obstacle). -
Page 16: Adjusting The Screen Extension
Note: One complete turn of the switch will make approximately a 3/4" (2 cm) change in the screen's stop position. © 2015 Stewart Filmscreen Corporation Cima Above Ceiling ElectriScreen: Owner’s Manual... -
Page 17: Adjusting The Screen Extension
ADJUSTING THE SCREEN EXTENSION (CONTINUED) To decrease the screen extension: 1. Lower the screen until it is extended about halfway down. 2. Remove the dust cover to locate the white extension (down) limit switch on the left side of the screen tube (audience left). Use a small electrician’s style screwdriver or a 5/32”... -
Page 18: Adjusting The Screen Tension
ADJUSTING THE SCREEN TENSION To correctly adjust the batten setting position and side line length on your Cima screen, it may be necessary to loosen the existing side line attachment screws. After the adjustment has been completed, the batten weight will be increased on the screen while decreasing the side line tension. -
Page 19: Caring For & Cleaning The Screen
To maximize the longevity of your Cima screen we recommend the screen be deployed overnight at least once a week. If using a 3rd party control system to deploy your Cima screen, you may be able to program the 3rd party system to automatically deploy your Cima screen once a week. -
Page 20: Troubleshooting
TROUBLESHOOTING Refer to the following guidelines if you encounter a difficulty in the operation of your Cima by Stewart Filmscreen product. Problems related to electrical or motor function may require a qualified service person or electrician. Should you have a problem that is not addressed here, call Stewart Filmscreen Corporation (1-800-762-4999). -
Page 21: Troubleshooting
TROUBLESHOOTING (CONTINUED) Problem Description Probable Cause Action To Take Screen continues past bottom stop White limit switch is out of adjustment. Readjust the white DOWN limit switch. position. See pp. 17-18 of this manual. Batten retracts too far into case. Yellow limit switch is out of adjustment. -
Page 22: Product Warranty
In the event that there is a defect in materials or workmanship of a Cima by Stewart Filmscreen, you may contact our Customer Service Department at 1161 W Sepulveda Blvd, Torrance, California 90502- 2797 (310-784-5300) Toll free (800-762-4999). - Page 24 www.stewartfilmscreen.com 1-800-762-4999 ♦ Fax (310) 326-6870 15416...
